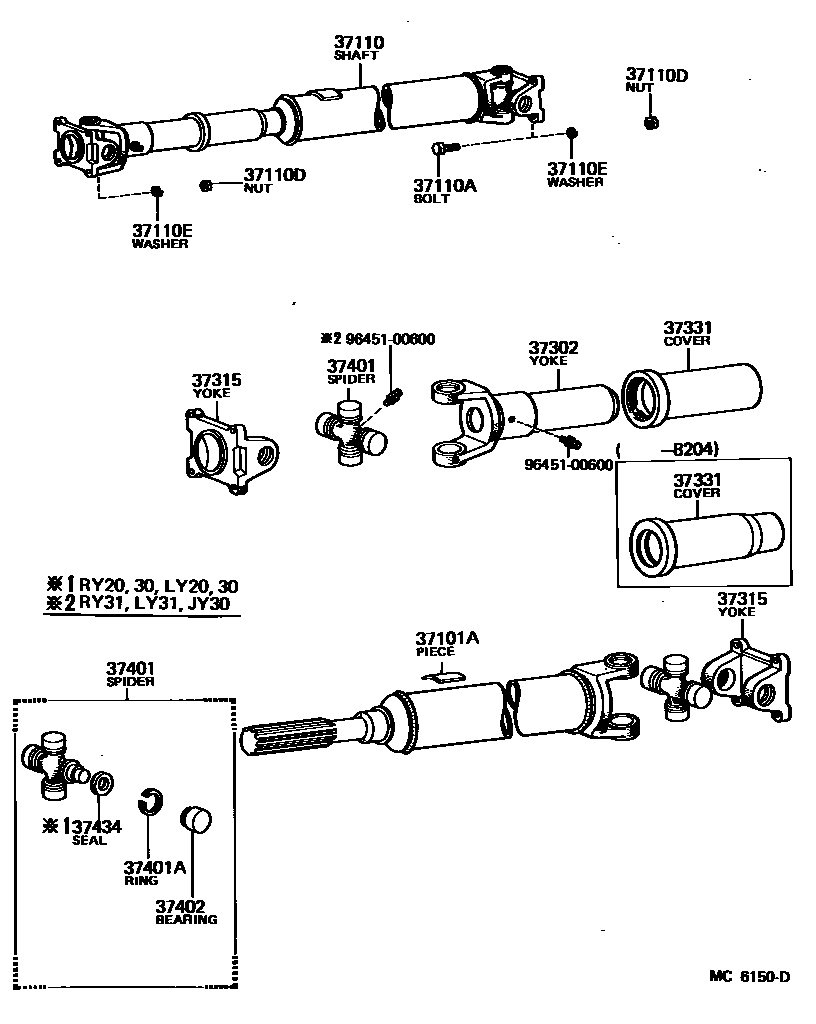

PROPELLER SHAFT & UNIVERSAL JOINT
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
10G
20G
30G
5G,5G
10G,L=20.7,10G
20G,L=41.4,20G
30G,L=62.2,30G
2G,T=2.0,2G
4G,T=2.0,4G
6G,L=12.4,6G
8G,L=16.6,8G
12G,L=24.9,12G
14G,L=29.0,14G
16G,L=33.2,16G
18G,L=37.3,18G
22G,L=45.6,22G
24G,L=49.7,24G
26G,L=53.9,26G
28G,L=58.1,28G
37110SHAFT ASSY, PROPELLER
L=1149
L=1144
L=1224
L=1136
L=894
L=966
L=966
L=1154
L=1226
L=1221
L=1199
L=1201
37110DNUT (FOR PROPELLER SHAFT)
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37331COVER, SLIDING SHAFT DUST
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
T=1.53,T=1.53
T=2.00,NO MARK,T=2.00
T=2.03,BROWN,T=2.03
T=2.06,BLUE,T=2.06
T=2.09,NO MARK,T=2.09
T=1.50,T=1.50
T=1.56,T=1.56
T=1.59,T=1.59
T=2.375-2.425,T=2.4
T=2.425-2.475,T=2.45
T=2.475-2.525,T=2.5
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37434SEAL, UNIVERSAL JOINT SPIDER BEARING
9645100600
main96451-00600
13 parts on this diagram · 1 diagram in section
