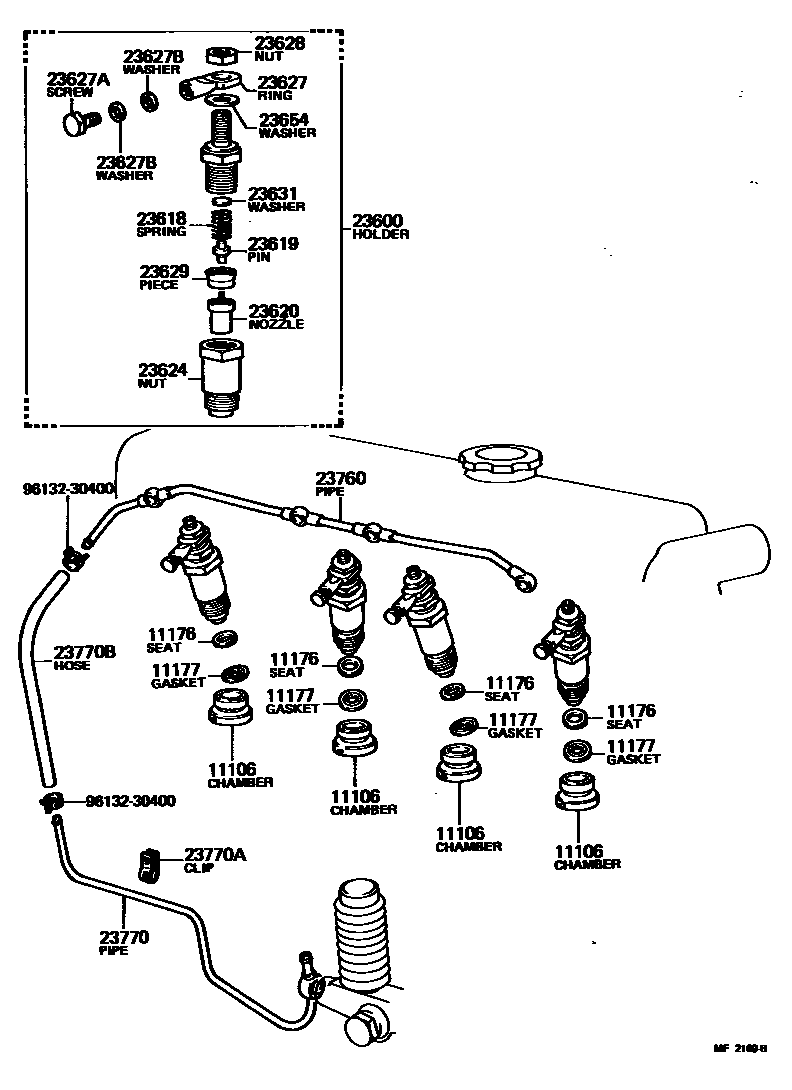

INJECTION NOZZLE
11106CHAMBER SUB-ASSY, COMBUSTION
11176SEAT, INJECTION NOZZLE
23600HOLDER & NOZZLE SET, NOZZLE
HONG KONG SPEC
23619PIN, NOZZLE HOLDER PRESSURE
23620NOZZLE ASSY
23627RING, PACKING, NO.1(FOR NOZZLE)
23627ASCREW, FOLLOW(FOR NOZZLE)
23627BWASHER, COPPER PLATE(FOR NOZZLE)
23628NUT(FOR RING PACKING SETTING)
23629PIECE, DISTANCE(FOR NOZZLE)
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
T=1.000
T=1.050
T=1.100
T=1.150
T=1.200
T=1.250
T=1.300
T=1.350
T=1.400
T=1.450
T=1.500
T=1.550
T=1.600
T=1.650
T=1.700
T=1.750
T=1.800
T=1.850
T=1.900
T=1.950
23654WASHER(FOR RING PACKING)
23770ACLAMP OR CLIP(FOR NOZZLE LEAKAGE PIPE SET)
23770BHOSE, FUEL
9613230400
main96132-30400
20 parts on this diagram · 3 diagrams in section
