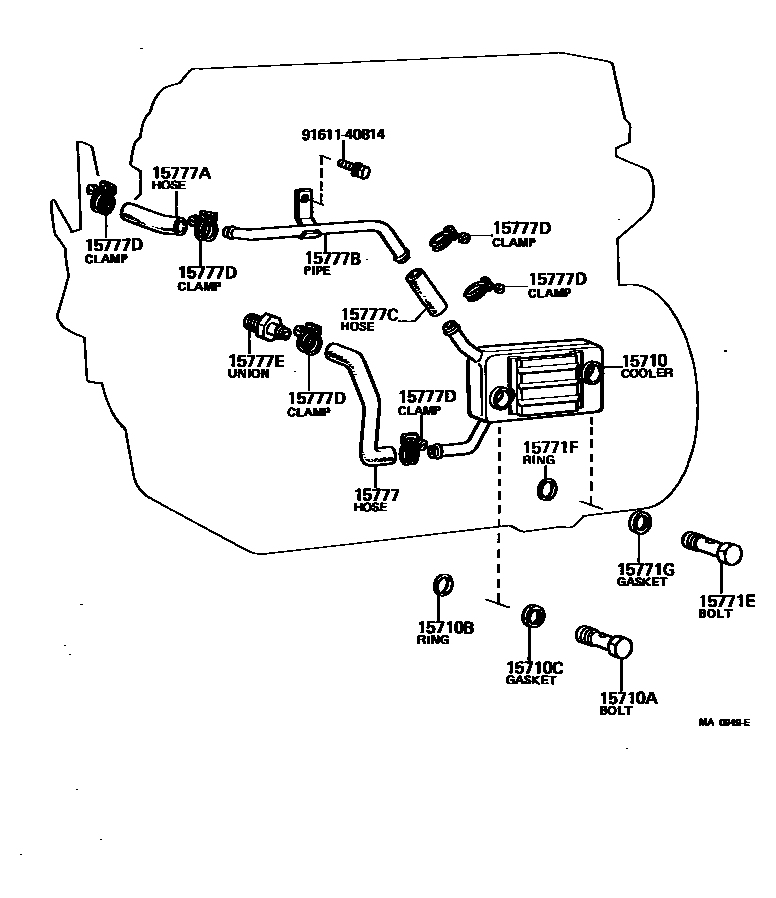

ENGINE OIL COOLER

0001 1 0002 1 0003 1

15710COOLER ASSY, OIL

main15710-48020i2J..JY30197903-198308

main15710-54020iL..LY20,30197903-198011

main15710-54021iL..LY20,30198011-198308

main15710-54030i2L..LY31198308-198507

15710ABOLT, UNION(FOR OIL COOLER)

main90401-18083i2J..JY30197903-198308

15710BRING, O(FOR OIL COOLER)

main90301-21176i2J..JY30197903-198308

15710CGASKET(FOR OIL COOLER)

main90430-18012i2J..JY30197903-198308

main90923-05009×2iL..LY20,30197903-198205

main90923-05015×2iL,2L..LY3#198205-198507

15771EBOLT, UNION(FOR OIL PIPE)

main90401-18083i2J..JY30197903-198308

15771FRING, O

main90301-21176i2J..JY30197903-198308

15771GGASKET

main90430-18012i2J..JY30197903-198308

15777HOSE, OIL COOLER

main15777-48010i2J..JY30197903-198308

15777AHOSE, OIL COOLER

main90910-05067i2J..JY30197903-198308

15777BPIPE, OIL COOLER

main16268-48012i2J..JY30197903-198308

15777CHOSE, OIL COOLER

main90445-24847i2J..JY30197903-198308

15777DCLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)

main96112-10240×6i2J..JY30197903-198308

15777EUNION

main90404-54116i2J..JY30197903-198308

9161140814

main91611-40814

14 parts on this diagram · 3 diagrams in section
