METER

3304SPEEDOMETER DRIVEN GEAR (MTM)

→ Go to FIG 33-04

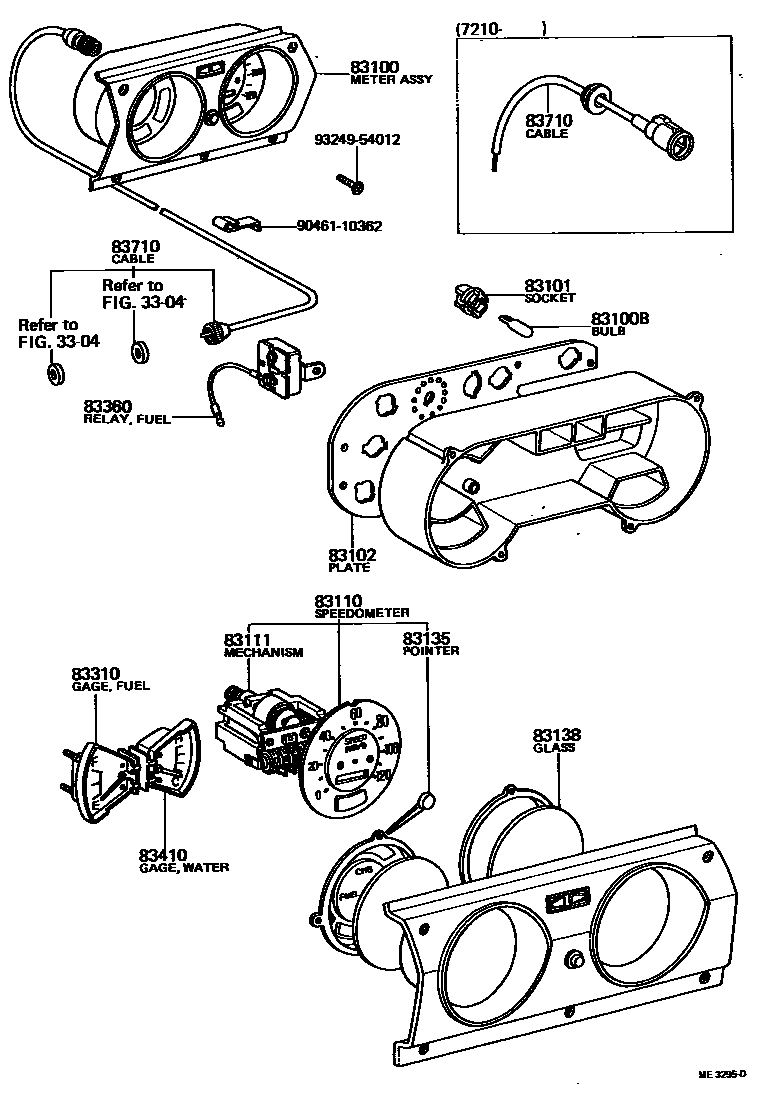

83100METER ASSY, COMBINATION

main83100-25070iJY16,RY1#197109-197209

KM

main83100-25071iJY16,RY1#197209-197902

KM

main83100-25080iJY16,RY1#197109-197209

MILE

main83100-25081iJY16,RY1#197209-197708

MILE

main83100-25082iJY16,RY1#197708-197902

MILE & KM

83100BBULB, COMBINATION METER, NO.1

main99132-12034×8iJY16,RY1#197109-197902

12V 3.4W,12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-12010×8iJY16,RY1#197109-197902

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83102-25010iJY16,RY1#197209-197902

83110SPEEDOMETER ASSY

main83110-25060iJY16,RY1#197611-197708

MILE

main83110-25070iJY16,RY1#197611-197708

KM

main83110-26013iJY16,RY1#197109-197209

KM

main83110-26014iJY16,RY1#197209-197611

KM

main83110-27020iJY16,RY1#197109-197209

MILE

main83110-27021iJY16,RY1#197209-197611

MILE

main83110-27022iJY16,RY1#197708-197902

MILE & KM

83111MECHANISM, SPEEDOMETER

main83112-26014iJY16,RY1#197209-197902

KM

main83112-26023iJY16,RY1#197209-197902

MILE

83135POINTER, SPEEDOMETER

main83135-26010iJY16,RY1#197209-197902

83138GLASS, SPEEDOMETER

main83138-26010iJY16,RY1#197209-197902

83310GAGE ASSY, FUEL RECEIVER

main83310-26011iJY16,RY1#197109-197902

83360RELAY ASSY, FUEL SENDER

main83360-20011iJY16,RY1#197109-197902

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83410-25020iJY16,RY1#197109-197902

83710CABLE ASSY, SPEEDOMETER DRIVE, NO.1

main83710-29195iRY10,12..RHD197109-197209

L=2700

main83710-29196iRY10,12..RHD197209-197902

L=2700

main83710-29205iRY10..RHD197109-197209

L=2800,W/BRAKE BOOSTER

main83710-29206iJY16,RY16; RY10..RHD197209-197902

L=2800; L=2800,W/BRAKE BOOSTER

main83710-39035iRY10,12..LHD197109-197209

L=3400

main83710-39036iRY10,12..LHD197209-197902

L=3400

9046110362

main90461-10362

9324954012

main93249-54012

15 parts on this diagram · 1 diagram in section
