Toyota TOYOACE — SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

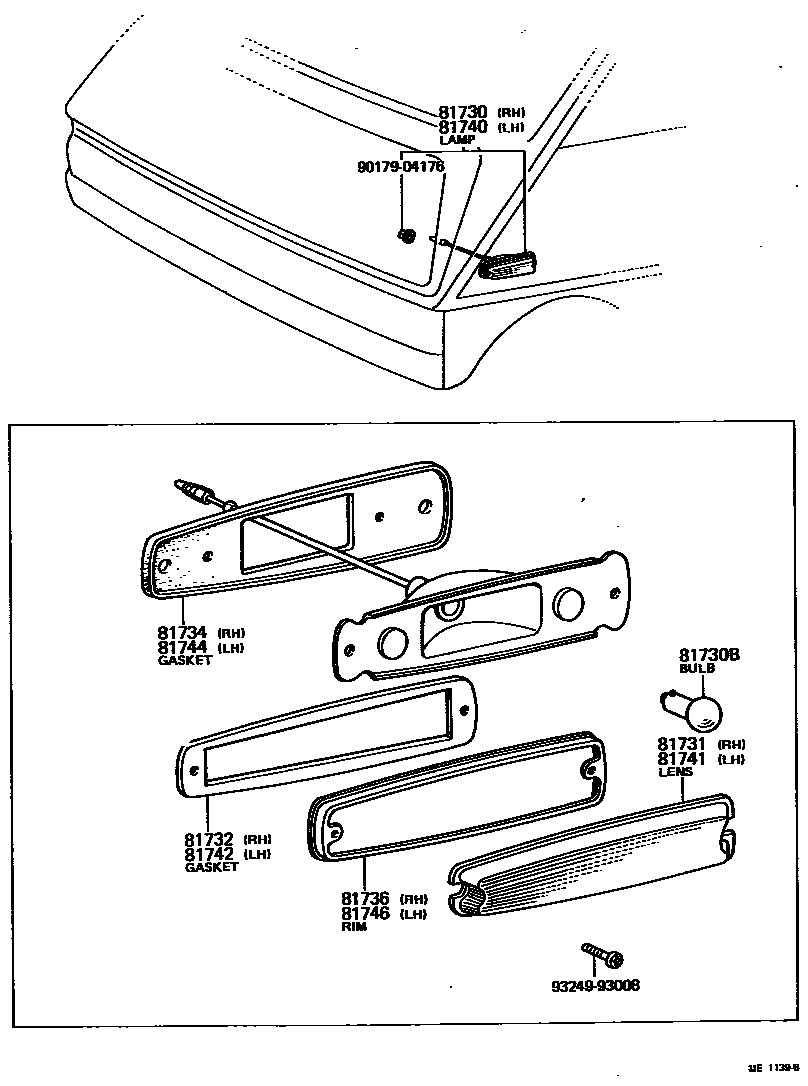

Parts diagram

81730LAMP ASSY, SIDE TURN SIGNAL, RH

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

81731LENS, SIDE TURN SIGNAL LAMP, RH

81732GASKET, SIDE TURN SIGNAL LAMP LENS, RH

81734GASKET, SIDE TURN SIGNAL LAMP BODY, RH

81736RIM, SIDE TURN SIGNAL LAMP, RH

81740LAMP ASSY, SIDE TURN SIGNAL, LH

81741LENS, SIDE TURN SIGNAL LAMP, LH

81742GASKET, SIDE TURN SIGNAL LAMP LENS, LH

81744GASKET, SIDE TURN SIGNAL LAMP BODY, LH

81746RIM, SIDE TURN SIGNAL LAMP, LH

9017904176

9324993008

13 parts on this diagram · 2 diagrams in section

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP for Toyota TOYOACE

This section contains 13 genuine Toyota parts for the SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP system of the Toyota TOYOACE. Key components include: LAMP ASSY, SIDE TURN SIGNAL, RH, BULB (FOR SIDE TURN SIGNAL LAMP), LENS, SIDE TURN SIGNAL LAMP, RH, GASKET, SIDE TURN SIGNAL LAMP LENS, RH, GASKET, SIDE TURN SIGNAL LAMP BODY, RH.
