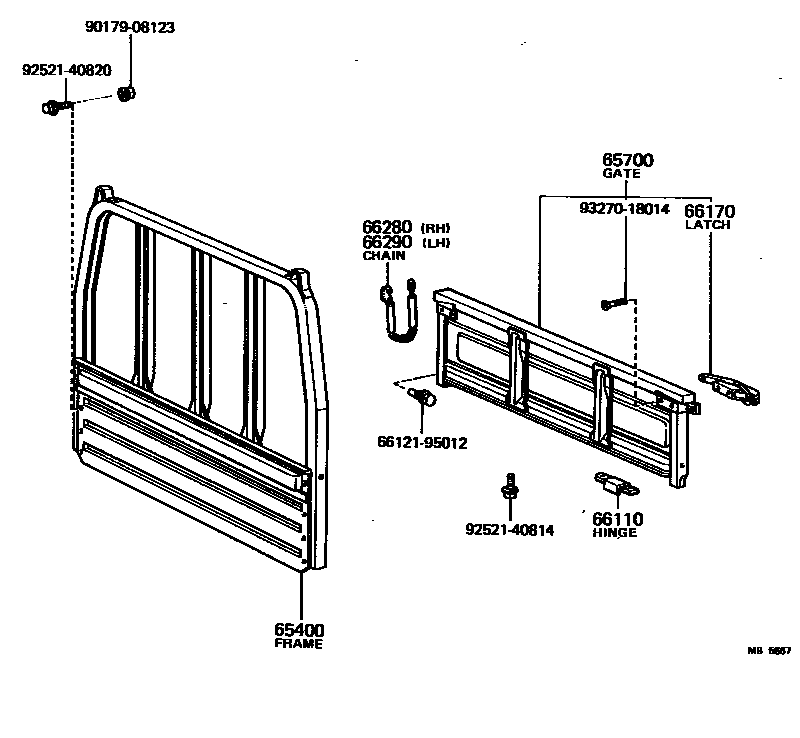

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1 0003 1

65400FRAME ASSY, REAR BODY GUARD

main65400-92581iJY16..TB197512-197902

main65400-95022iRY10..T1197109-197902

main65400-95023iJY16,RY12,16..T1197109-197902

main65400-95024iRY10,12..T3197109-197902

main65400-95410iJY16,RY16..T3..TS197207-197902

65700GATE ASSY, REAR BODY TAIL

main65700-92582iJY16..TB197512-197611

main65700-92583iJY16..TB197611-197902

main65700-95020iJY16,RY1#..T1197109-197801

main65700-95021iJY16,RY1#..T3..TS197109-197611

main65700-95022iJY16,RY1#..T3..TS197611-197902

main65700-95412iJY16,RY1#..T1197801-197902

66110HINGE ASSY, TAIL GATE

main66110-95014iJY16,RY1#..T1197109-197902

main66110-95015iJY16,RY1#..T3..TS197109-197611

main66110-95016iJY16,RY1#..T3..TS197611-197902

main66111-92701iJY16..TB197512-197902

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-95111iJY16,RY1#..T1197109-197801

main66170-95402iJY16,RY1#..T1197801-197902

66280CHAIN ASSY, TAIL GATE, RH

main66280-92580iJY16..TB197512-197902

main66280-95010iRY1#197109-197206

main66280-95011iJY16,RY1#..T3..TS197207-197902

66290CHAIN ASSY, TAIL GATE, LH

main66280-95010iRY1#197109-197206

main66280-95011iJY16,RY1#..T3..TS197207-197902

main66290-92580iJY16..TB197512-197902

6612195012HINGE, TAIL GATE, MALE

main66121-95012

9017908123

main90179-08123

9252140814

main92521-40814

9252140820

main92521-40820

9327018014

main93270-18014

11 parts on this diagram · 3 diagrams in section
