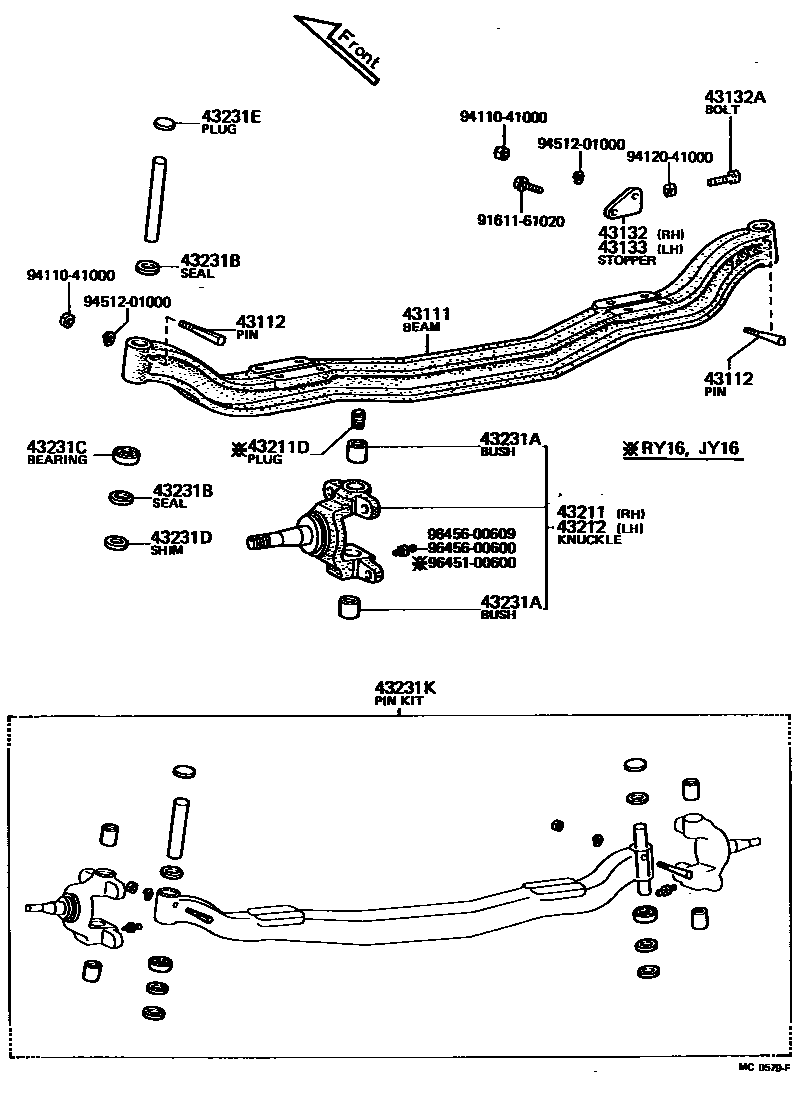

FRONT AXLE ARM & STEERING KNUCKLE
43111I BEAM, FRONT AXLE
43112PIN, KING PIN LOCK
43132STOPPER, STEERING KNUCKLE, RH
43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)
10-1.25PX28-25.5
43133STOPPER, STEERING KNUCKLE, LH
43211DPLUG (FOR STEERING KNUCKLE)
UPPER
LOWER
43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)
UPPER
LOWER
UPPER
LOWER
43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)
LOWER
UPPER
43231CBEARING (FOR STEERING KNUCKLE KING PIN)
43231DSHIM (FOR KING PIN)
T=0.05
T=0.10
T=0.25
T=0.15
T=0.20
T=0.10,T=0.10
T=0.05,T=0.05
T=0.25,T=0.25
T=0.20,T=0.20
T=0.25,T=0.25
T=0.30,T=0.30
T=0.35,T=0.35
T=0.40,T=0.40
T=0.45,T=0.45
43231EPLUG (FOR STEERING KNUCKLE)
43231KPIN KIT, STEERING KNUCKLE KING
9161161020
main91611-61020
9411041000
main94110-41000
9412041000
main94120-41000
9451201000
main94512-01000
9645100600
main96451-00600
9645600600
main96456-00600
9645600609
main96456-00609
21 parts on this diagram · 2 diagrams in section
