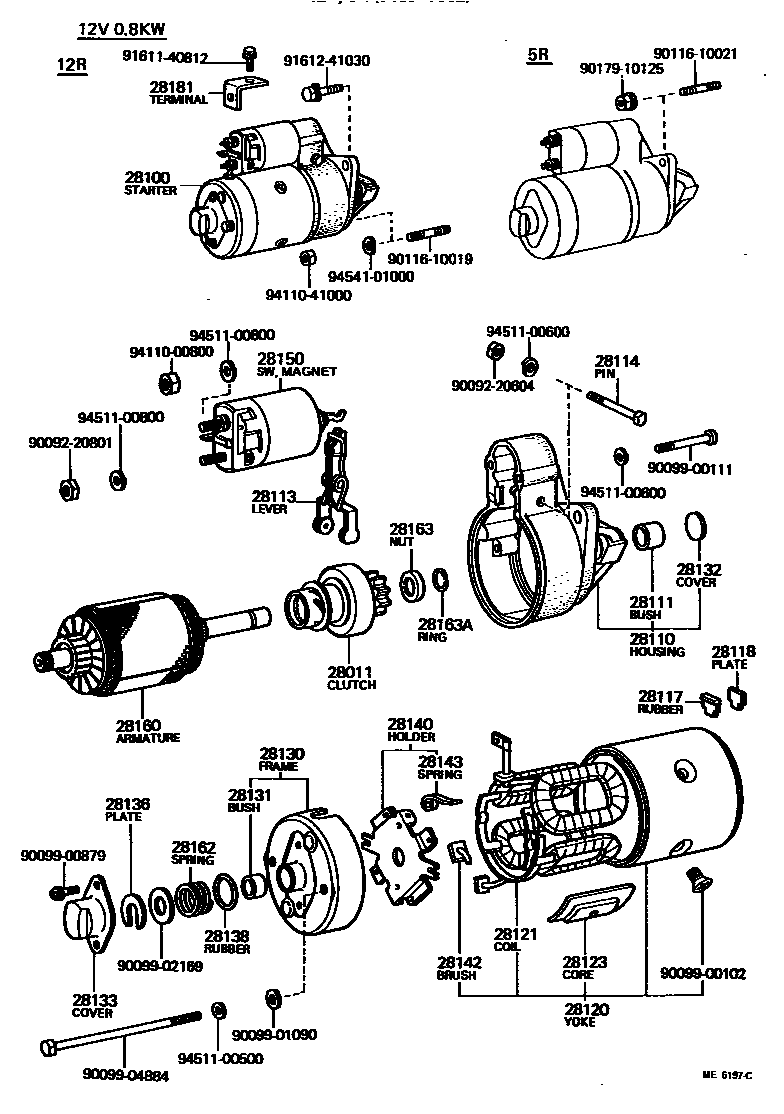

STARTER

0001 1 0002 1 0003 1 0004 1

28011CLUTCH SUB-ASSY, STARTER

main28011-34010i5R..RY16197207-197601

12V 0.9KW

main28011-41011i12R,5R..RY1#197109-197902

12V 0.8KW

main28011-46013i2J..JY16197207-197708

main28011-77090i2J..JY16197708-197902

sub28011-54010

28100STARTER ASSY

main28100-23010i12R..RY10,12197511-197805

12V 0.8KW

main28100-23011i12R..RY10,12197805-197902

12V 0.8KW

sub28100-31030

main28100-33011i5R..RY16197207-197601

12V 0.8KW

sub28100-36070

main28100-34010i5R..RY16197207-197601

12V 0.9KW

sub28100-40061

main28100-36060i5R..RY16197601-197902

12V 0.8KW

sub28100-34090

main28100-40014i12R..RY10,12197109-197511

12V 0.8KW

sub28100-40015

main28100-46011i2J..JY16197207-197708

12V 1.8KW

main28100-46030i2J..JY16197708-197902

12V 2.5KW

28110HOUSING ASSY, STARTER DRIVE

main28110-34010i5R..RY16197207-197601

12V 0.9KW

main28110-40019i12R..RY10,12197109-197805

main28110-40030i12R..RY10,12197805-197902

main28110-40045i5R..RY16197207-197902

12V 0.8KW

main28110-46012i2J..JY16197207-197303

main28110-46013i2J..JY16197303-197708

sub28110-46014

main28115-46030i2J..JY16197708-197902

28111BUSH(FOR STARTER HOUSING)

main28111-46010i2J..JY16197207-197708

main28111-51011i12R,5R..RY1#197109-197902

28113LEVER, STARTER PINION DRIVE

main28113-41011i12R,5R..RY1#197109-197902

main28113-46012i2J..JY16197207-197708

28114PIN, STARTER DRIVE LEVER SET

main28114-41011i12R,5R..RY1#197109-197902

main28114-46010i2J..JY16197207-197708

28117RUBBER(FOR STARTER YOKE)

main28117-34010i5R..RY16197207-197601

12V 0.9KW

main28117-41012i12R..RY10,12197109-197902

28118PLATE(FOR STARTER YOKE)

main28118-41012i12R,5R..RY1#197109-197902

sub28118-41013

main28118-77090i2J..JY16197708-197902

28120YOKE ASSY, STARTER

main28120-36040i12R,5R..RY1#197511-197902

12V 0.8KW

main28120-41011i5R..RY16197207-197601

12V 0.9KW

sub28120-40040

main28120-46011i2J..JY16197207-197303

main28120-47040i2J..JY16197708-197902

main28120-56020i2J..JY16197303-197708

main28120-89101i12R,5R..RY1#197109-197511

12V 0.8KW

28121COIL, STARTER FIELD

main28121-36040i12R,5R..RY1#197511-197902

12V 0.8KW

main28121-40014i12R,5R..RY1#197109-197511

12V 0.8KW

main28121-41011i5R..RY16197207-197601

12V 0.9KW

main28121-46012i2J..JY16197207-197708

28123CORE, STARTER POLE

main28123-40012×4i12R,5R..RY1#197109-197902

12V 0.8KW

main28123-41011×4i5R..RY16197207-197601

12V 0.9KW

main28123-46011×4i2J..JY16197207-197708

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-21011i12R,5R..RY1#197109-197902

main28130-46013i2J..JY16197207-197303

main28130-46020i2J..JY16197409-197708

sub28130-46021

main28130-46030i2J..JY16197708-197902

sub28130-46040

sub28199-46080

sub90099-04207

main28130-56020i2J..JY16197303-197409

28131BUSH, COMMUTATOR END FRAME

main28111-46011i2J..JY16197207-197708

STD

main28131-20010i12R,5R..RY1#197109-197902

STD

main90099-10039i12R,5R..RY1#197109-197902

U/S 0.3

main90099-10040i12R,5R..RY1#197109-197902

U/S 0.5

main90099-10071i2J..JY16197207-197708

U/S 0.3

main90099-10072i2J..JY16197207-197708

U/S 0.5

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28132-21010i2J..JY16197207-197409

main28132-41010i12R..RY10,12197109-197511

sub28166-41010

main28166-21010i2J..JY16197409-197708

main28166-41011i5R..RY16197207-197601

28133COVER, BEARING(FOR END FRAME)

main28132-41011i12R,5R..RY1#197109-197902

28136PLATE, STARTER LOCK

main28136-41011i12R,5R..RY1#197109-197902

28138RUBBER(FOR STARTER BEARING COVER)

main28138-41011i12R,5R..RY1#197109-197902

28140HOLDER ASSY, STARTER BRUSH

main28140-41012i12R..RY10,12197109-197511

main28140-41013i5R..RY16197207-197601

main28140-77090i2J..JY16197708-197902

28142BRUSH, STARTER

main28142-21010×4i12R,5R..RY1#197109-197902

main28142-46013×4i2J..JY16197207-197708

28143SPRING, STARTER BRUSH

main28143-40010×4i5R..RY16197207-197902

sub28143-40040

main28143-46012×4i2J..JY16197207-197708

28150SWITCH ASSY, MAGNET STARTER

main28150-22011i5R..RY16197207-197601

12V 0.8KW

main28150-23010i12R..RY10,12197511-197805

main28150-23011i12R..RY10,12197805-197902

main28150-34011i5R..RY16197207-197601

12V 0.9KW

sub28150-34021

main28150-36050i5R..RY16197601-197902

12V 0.8KW

sub28150-60060

main28150-41011i12R..RY10,12197109-197511

sub28150-33020

main28150-46011i2J..JY16197207-197708

main28150-46030i2J..JY16197708-197902

28160ARMATURE ASSY, STARTER

main28160-34010i5R..RY16197207-197601

12V 0.9KW

main28160-40014i12R,5R..RY1#197109-197902

12V 0.8KW

main28160-46012i2J..JY16197207-197708

main28160-47040i2J..JY16197708-197902

sub28160-54140

28162SPRING, STARTER BRAKE

main28162-41011i12R,5R..RY1#197109-197902

main28162-46011i2J..JY16197207-197708

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i12R,5R..RY1#197109-197902

main28163-46016i2J..JY16197207-197708

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i12R,5R..RY1#197109-197902

main90099-07049i2J..JY16197207-197708

28181TERMINAL, STARTER

main28181-20010i12R..RY1#197109-197205

sub28181-20011

9009220604

main90092-20604

9009220801

main90092-20801

9009900102

main90099-00102

9009900111

main90099-00111

9009900879

main90099-00879

9009901090

main90099-01090

9009902169

main90099-02169

9009904884

main90099-04884

9011610019

main90116-10019

9011610021

main90116-10021

9017910125

main90179-10125

9161140812

main91611-40812

9161241030

main91612-41030

9411000800

main94110-00800

9411041000

main94110-41000

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

9454101000

main94541-01000

45 parts on this diagram · 4 diagrams in section
