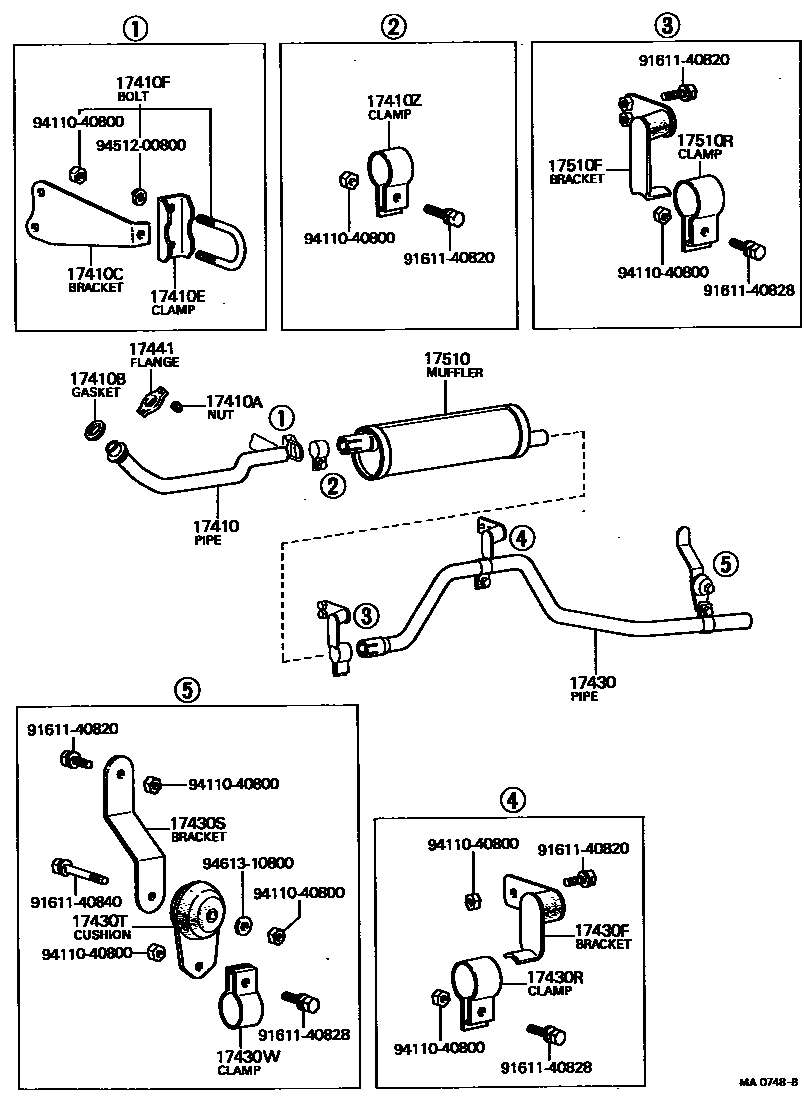

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-23070i12R..RY10197109-197404

main17401-23071i12R..RY10197404-197902

main17401-31130i12R..RY12197109-197404

main17401-31131i12R..RY12197404-197902

main17401-44090i5R..RY16197207-197404

main17401-44091i5R..RY16197404-197902

main17401-48040i2J..JY16197207-197404

main17401-48041i2J..JY16197404-197802

main17401-48042i2J..JY16197802-197902

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90170-10049×2i2J..JY16197207-197902

main90179-10118×3i12R,5R..RY1#197109-197902

17410BGASKET, EXHAUST PIPE

main17451-41010i5R..RY16197207-197902

main90917-06004i12R,2J..JY16,RY10,12197109-197902

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-23050i12R..RY10,12197109-197404

main17571-44020i12R..RY10,12197404-197902

main17571-46020i2J..JY16197207-197404

main17571-46041i2J,5R..JY16,RY16197404-197902

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main90917-04005i5R..RY16197207-197902

main90917-04007i12R,2J..JY16,RY10,12197109-197902

17410FBOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)

main90999-99002i12R,2J..JY16,RY10,12197109-197902

main90999-99003i5R..RY16197207-197902

17410ZCLAMP NO.2, EXHAUST PIPE FRONT (FOR REAR)

main90461-23071i2J,5R..JY16,RY16197207-197404

main90461-23778i12R..RY10,12197109-197404

17430PIPE ASSY, EXHAUST, TAIL

main17430-23010i12R..RY10,12197404-197902

main17430-31070i2J,5R..JY16,RY16197404-197902

main17431-23030i12R..RY10,12197109-197404

main17431-48010i2J,5R..JY16,RY16197207-197404

17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)

main17562-23020i12R..RY10,12197109-197902

main17562-31040i2J,5R..JY16,RY16197404-197902

main17573-48010i2J,5R..JY16,RY16197207-197404

17430RCLAMP NO.2, EXHAUST TAILPIPE (FOR CENTER)

main90461-23078i12R..RY10,12197109-197902

main90461-23170i2J,5R..JY16,RY16197207-197404

main90461-23188i2J,5R..JY16,RY16197404-197902

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17572-21010i12R..RY10,12197109-197902

main17573-40010i2J,5R..JY16,RY16197207-197211

main17573-44020i2J,5R..JY16,RY16197211-197902

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main90917-08004i12R,2J,5R..JY16,RY1#197109-197902

17430WCLAMP NO.2, EXHAUST TAILPIPE (FOR REAR)

main90461-23072i12R..RY10,12197109-197902

main90461-23170i2J,5R..JY16,RY16197207-197902

17441FLANGE, EXHAUST PIPE

main17441-40010i12R,2J..JY16,RY10,12197109-197404

17510MUFFLER ASSY

main17510-23030i12R,2J,5R..JY16,RY1#197109-197404

17510FBRACKET, MUFFLER, REAR

main17561-23030i12R..RY10,12197109-197404

17510RCLAMP NO.2, MUFFLER, REAR

main90461-23080i2J,5R..JY16,RY16197207-197404

main90461-23211i12R..RY10,12197109-197404

9161140820

main91611-40820

9161140828

main91611-40828

9161140840

main91611-40840

9411040800

main94110-40800

9451200800

main94512-00800

9461310800

main94613-10800

23 parts on this diagram · 6 diagrams in section
