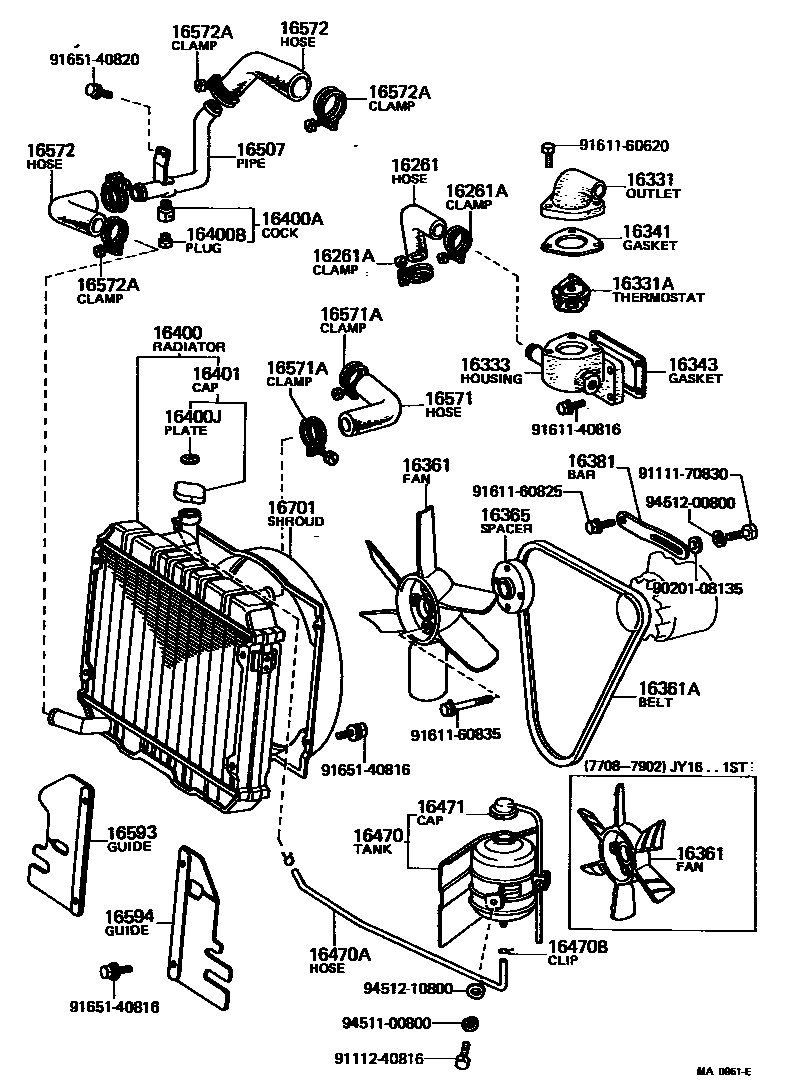

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16331OUTLET, WATER
CAST IRON BODY
16331ATHERMOSTAT
WAX 82-95 FUJI-THOMSON
WAX 82-95 FUJI-THOMSON
WAX 82-95 KUZEH
WAX 75-85 KUZEH
WAX 82-95 FUJI-THOMSON
WAX 82-95 KUZEH
16333HOUSING, WATER OUTLET
TROPICAL
TROPICAL
16341GASKET, WATER OUTLET
16343GASKET, WATER OUTLET HOUSING
16361FAN
4 BLADES
4 BLADES
4 BLADES
6 BLADES
CHINA,4 BLADES
CHINA,5 BLADES
6 BLADES
16361ABELT, V(FOR FAN & ALTERNATOR)
L=890
L=890
L=910
L=890
L=900
L=873
L=887
L=897
L=901
L=911
L=1037
16365SPACER, FAN
16381BAR, FAN BELT ADJUSTING
16400RADIATOR ASSY
16400ACOCK SUB-ASSY, RADIATOR DRAIN
16400BPLUG, RADIATOR DRAIN COCK
16400JPLATE, RADIATOR CAP CAUTION
16401CAP SUB-ASSY, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16507PIPE SUB-ASSY, RADIATOR
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
WATER OUTLET SIDE
RADIATOR SIDE
16572HOSE, RADIATOR, OUTLET
PUMP SIDE
PUMP SIDE
PUMP SIDE
RADIATOR SIDE
RADIATOR SIDE
PUMP SIDE
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
ID=47
ID=48
ID=55
ID=46
16593GUIDE, RADIATOR AIR, NO.1
16594GUIDE, RADIATOR AIR, NO.2
CHINA
16701SHROUD SUB-ASSY, FAN
9020108135
main90201-08135
9111170830
main91111-70830
9111240816
main91112-40816
9161140816
main91611-40816
9161160620
main91611-60620
9161160825
main91611-60825
9161160835
main91611-60835
9165140816
main91651-40816
9165140820
main91651-40820
9451100800
main94511-00800
9451200800
main94512-00800
9451210800
main94512-10800
40 parts on this diagram · 4 diagrams in section
