WATER PUMP

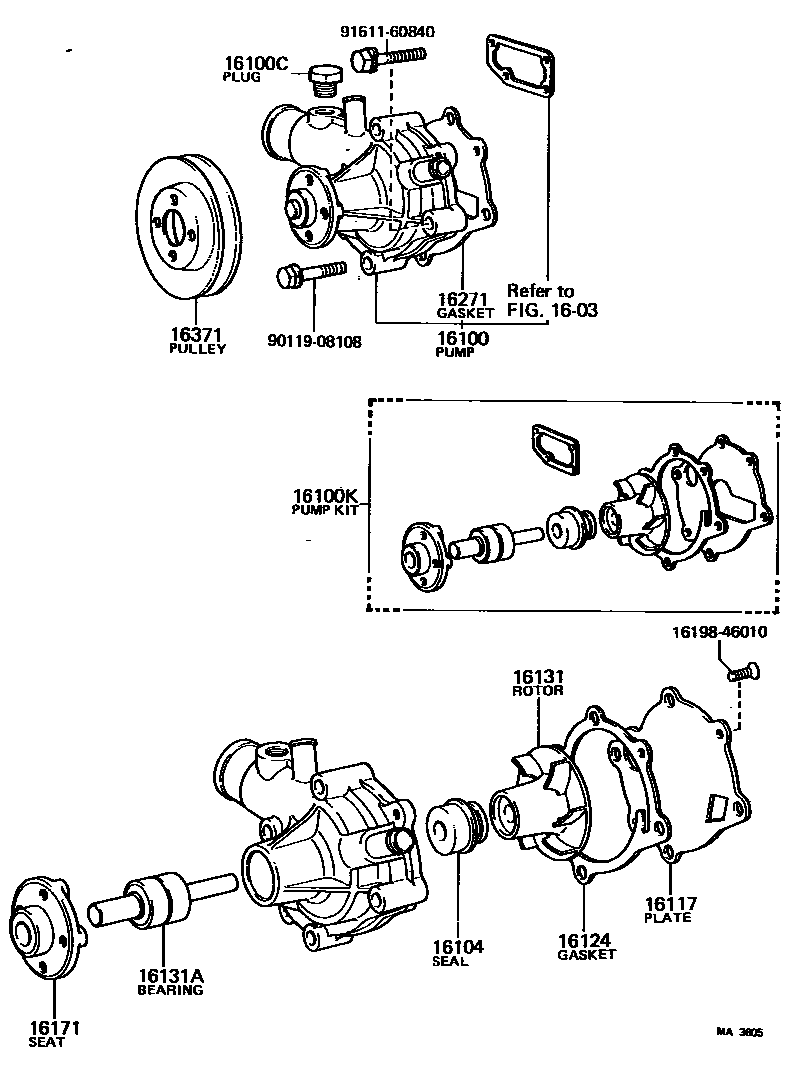

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-39115i197109-197511

main16100-39116i197511-197902

main16100-39125i197109-197309

CAST IRON BODY

main16100-49155i197207-197504

main16100-49206i197207-197708

main16100-49207i197708-197902

main16100-49216i197207-197708

TROPICAL

main16100-49217i197708-197902

TROPICAL

main16100-49415i197504-197902

16100CPLUG, W/HEAD TAPER SCREW

main90345-54002i197704-197901

L/HEATER

main90345-54004i197901-197902

L/HEATER

main90345-54021i197109-197704

L/HEATER

16100KPUMP KIT, WATER

main04161-31020i197109-197511

main04161-31021i197511-197708

main04161-31023i197708-197902

main04161-48010i197207-197708

main04161-48011i197708-197902

16104SEAL SET, WATER PUMP

main16104-30011i197109-197309

main16104-41040i197309-197511

main16104-41110i197708-197902

main16104-46011i197207-197708

16117PLATE, WATER PUMP

main16117-31010i197109-197407

main16117-31011i197407-197511

main16117-31031i197511-197902

main16117-44010i197207-197902

main16117-48010i197207-197902

16124GASKET, WATER PUMP COVER

main16124-48010i197207-197902

16131ROTOR, WATER PUMP

main16131-31010i197109-197511

main16131-31031i197511-197708

main16131-31032i197708-197902

main16131-44010i197207-197603

main16131-44070i197603-197902

main16131-48010i197207-197708

main16131-48013i197708-197902

16131ABEARING, WATER PUMP

main90369-30001i197207-197504

BWF30-6A

main90369-30003i197511-197902

WPB16124BR

main90369-30015i197207-197708

WPB16118RS-1-R

main90369-30028i197708-197902

WPB16112-2RS

main90369-30035i197109-197511

WPB16124RS-1-R

main90369-30063i197805-197902

WPB16105BRS

16171SEAT, WATER PUMP PULLEY

main16171-20010i197207-197504

main16171-24030i197504-197508

main16171-24031i197507-197508

main16171-31030i197109-197507

main16171-47010i197207-197902

16271GASKET, WATER PUMP

main16271-30010i197109-197511

main16271-30011i197511-197808

main16271-31010i197808-197902

main16271-44010i197207-197902

main16271-48010i197207-197902

16371PULLEY, FAN

main16371-31020i197109-197206

main16371-31021i197206-197511

main16371-31022i197511-197902

main16371-40020i197207-197504

main16371-44010i197504-197902

main16371-46011i197207-197708

main16371-48010i197708-197902

1619846010BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-46010

9011908108

main90119-08108

9161160840

main91611-60840

15 parts on this diagram · 4 diagrams in section
