HORN

86510HORN ASSY, HIGH PITCHED

main86510-48210iTAWH15..KRE202311

main86510-60300supersedes 86510-78020iAAWH10;AAWH15,TAWH15..RHD..GEN;AAWH15,TAWH15..ARL,EUR,PHL,RUS,TWN202306

main86510-78020supersedes 86510-60300iAAWH15..CHI;TAWH15..LHD..(CHI,GEN)202306

main86510-78010iAAWH15..RHD..GEN202306

INDIA SPEC

86520HORN ASSY, LOW PITCHED

main86520-30690iTAWH15..KRE202311

main86520-60250supersedes 86520-78020iAAWH10;AAWH15,TAWH15..RHD..GEN;AAWH15,TAWH15..ARL,EUR,PHL,RUS,TWN202306

main86520-78020supersedes 86520-60250iAAWH15..CHI;TAWH15..LHD..(CHI,GEN)202306

main86520-78010iAAWH15..RHD..GEN202306

INDIA SPEC

86570ASPEAKER ASSY, VEHICLE APPROACHING, NO.2

main86570-V2020iAAWH10..GEN202306-202311

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-V2040iAAWH10..GEN202306-202311

main865H2-V2010iTAWH15..RHD..GEN; TAWH15..RHD..GEN;TAWH15..ARL,CHI,KRE,TWN; TAWH15..RHD..X..GEN202311

MALAYSIA SPEC; SINGAPORE SPEC

9010508478

main90105-08478

9011906A07

main90119-06A07

9011906A64

main90119-06A64

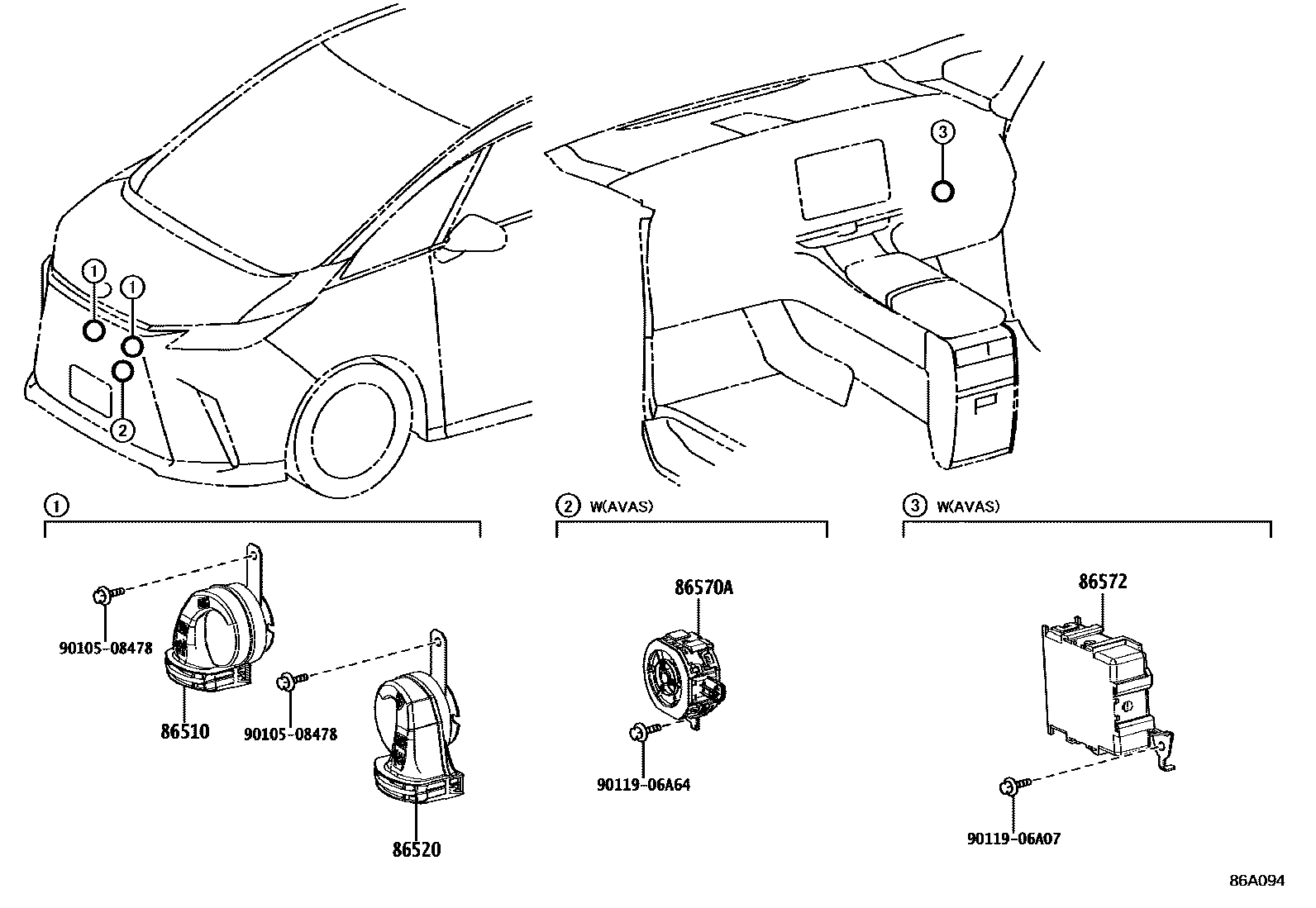

7 parts on this diagram · 1 diagram in section
