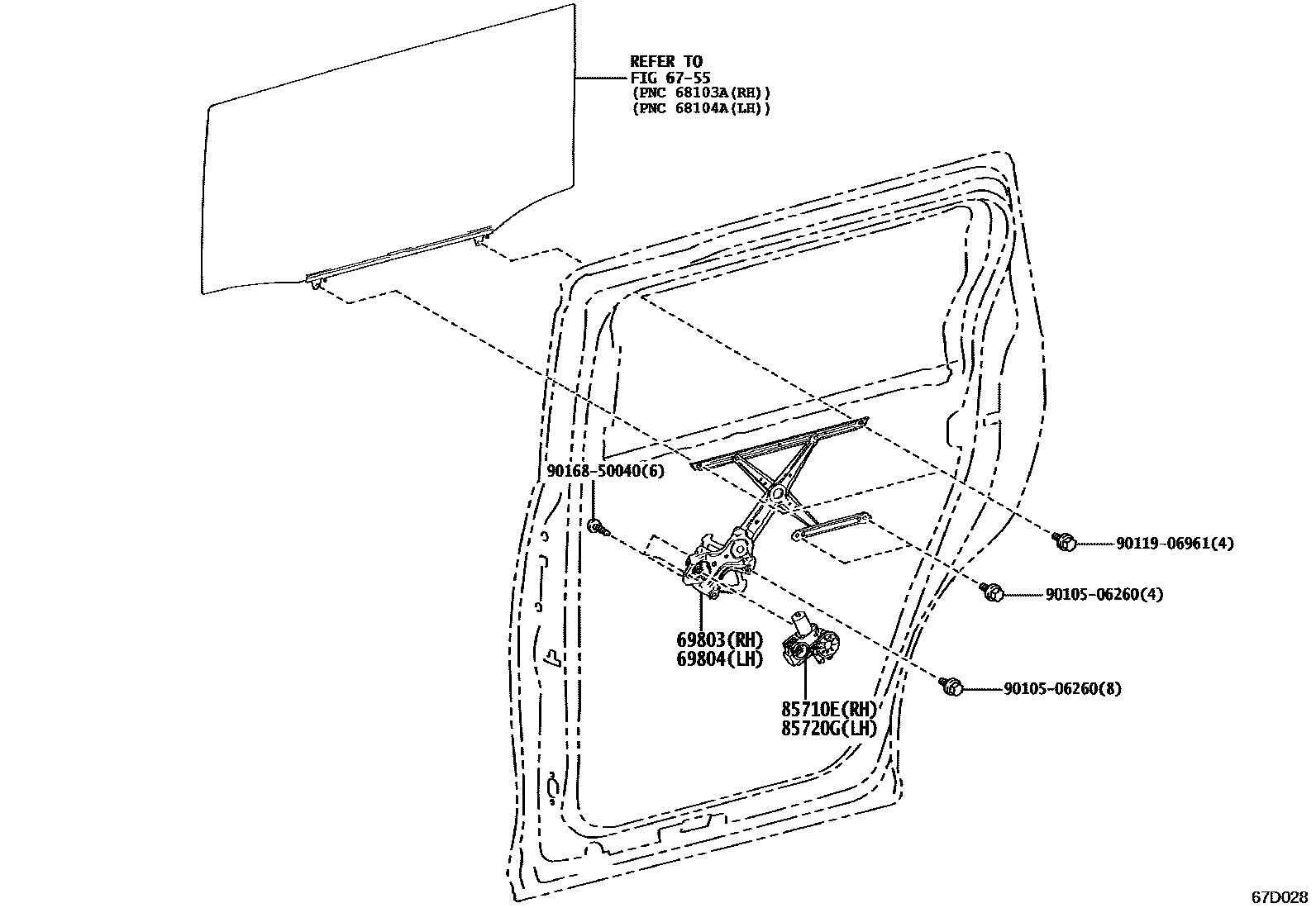

REAR DOOR WINDOW REGULATOR & HINGE

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-V2030iAAWH1#,TAWH15202306

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-V2030iAAWH1#,TAWH15202306

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-V2020iAAWH1#,TAWH15202306

85720GMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-V2020iAAWH1#,TAWH15202306

9010506260

main90105-06260

9011906961

main90119-06961

9016850040

main90168-50040

8 parts on this diagram · 1 diagram in section
