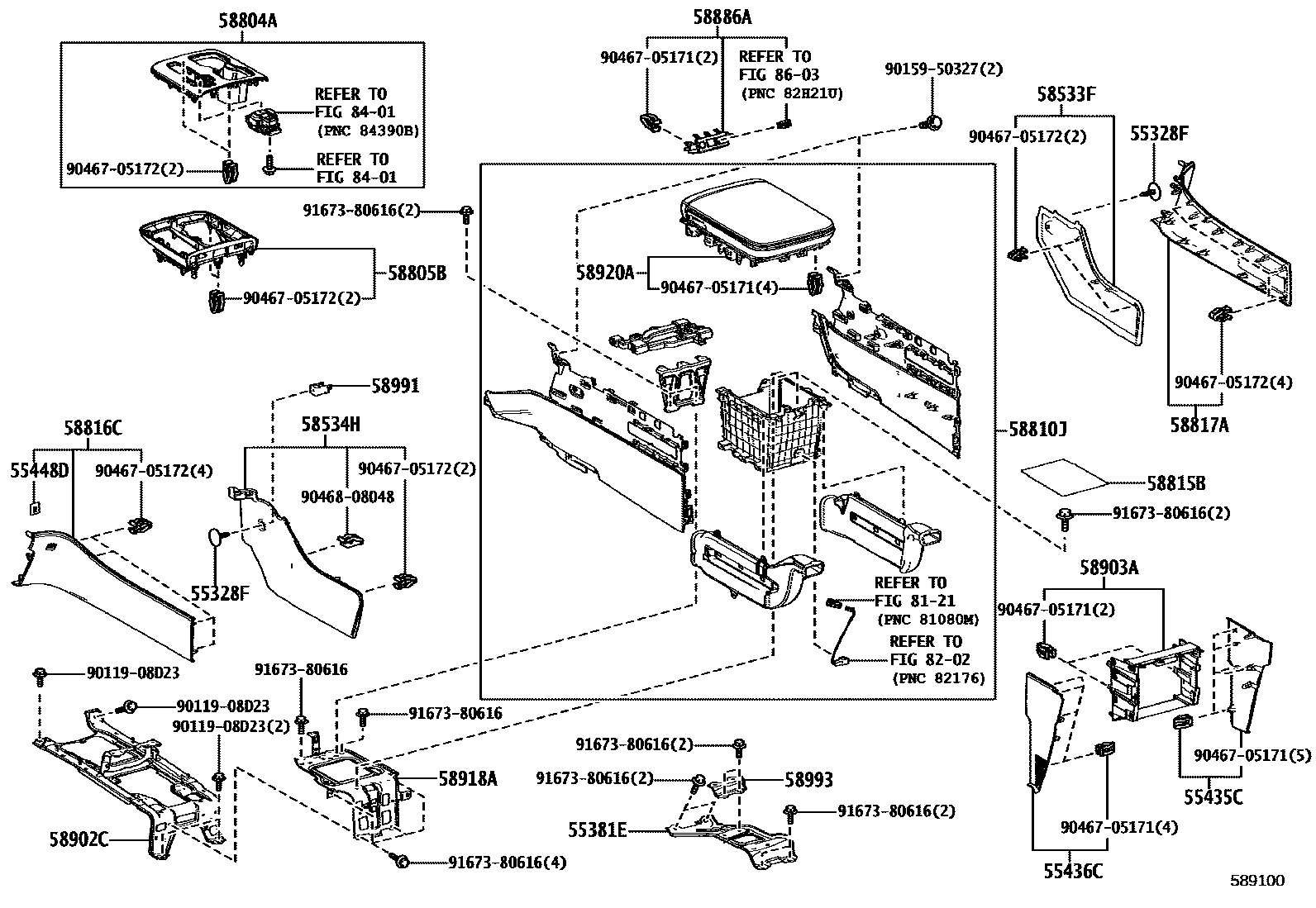

CONSOLE BOX & BRACKET

0001 1FRONT CENTER CONSOLE BOX 0002 1FRONT CENTER CONSOLE BOX 0003 1REAR NO.1 SEAT CONSOLE BOX 0004 1REAR NO.1 SEAT CONSOLE BOX 0005 1 0006 1 0007 1REAR END PANEL

55328FPIN, INSTRUMENT PANEL, NO.1

main90467-07042-C4iAAWH1#,TAWH15202306

BLACK

sub90467-07042

sub90467-06175

55381EBRACKET, INSTRUMENT PANEL SHIFT MOUNTING, NO.1

main55381-V2070iAAWH1#,TAWH15..RHD202306

main55381-V2080iAAWH15,TAWH15..LHD202306

55435CPANEL, INSTRUMENT PANEL FINISH, END RH

main55412-V2040iAAWH1#,TAWH15..X202306

55436CPANEL, INSTRUMENT PANEL FINISH, END LH

main55413-V2060iAAWH1#,TAWH15..X202306

55448DCUSHION, INSTRUMENT PANEL FINISH PANEL, NO.1

main55448-40060iAAWH1#,TAWH15202306

58533FCOVER, FLOOR CARPET, CENTER RH

main58533-V2030-C0iAAWH1#,TAWH15..RHD202306

BLACK,TRIM0#,2#

main58533-V2040-C0iAAWH15,TAWH15..LHD202306

BLACK,TRIM0#,2#

58534HCOVER, FLOOR CARPET, CENTER LH

main58534-V2030-C0iAAWH1#,TAWH15..RHD202306

BLACK,TRIM0#,2#

main58534-V2040-C0iAAWH15,TAWH15..LHD202306

BLACK,TRIM0#,2#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-V2060-C2iAAWH1#..RHD202306

BLACK,TRIM2#

main58804-V2070-C2iAAWH15..LHD202306

BLACK,TRIM2#

main58804-V2160-C0iTAWH15..RHD202311

BLACK,TRIM2#

main58804-V2170-C0iTAWH15..LHD202311

BLACK,TRIM2#

58805BPANEL SUB-ASSY, CONSOLE, LOWER

main58805-V2010-B0iAAWH1#,TAWH15..RHD202306

GRAY,TRIM2#

main58805-V2020-B0iAAWH15,TAWH15..LHD202306

GRAY,TRIM2#

58810JBOX ASSY, CONSOLE

main58810-V2030-C3iAAWH1#,TAWH15..RHD..V202306

BLACK,TRIM2#

main58810-V2080-C3iAAWH1#,TAWH15..RHD..X202306

BLACK,TRIM2#

main58810-V2110-C2iAAWH15,TAWH15..LHD..V202306

BLACK,TRIM2#

main58810-V2120-C2iAAWH15,TAWH15..LHD..X202306

BLACK,TRIM2#

58815BCARPET, CONSOLE BOX

main58815-V2020iAAWH1#,TAWH15202306

58816CINSERT, CONSOLE BOX, FRONT NO.1

main58816-V2030-C1iAAWH1#..RHD202306

BLACK,TRIM0#,2#

main58816-V2040-C1iAAWH15..LHD202306

BLACK,TRIM0#,2#

main58816-V2050-C0iTAWH15..RHD202311

BLACK,TRIM0#,2#

main58816-V2060-C0iTAWH15..LHD202311

BLACK,TRIM0#,2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-V2040-C1iAAWH1#..RHD202306

BLACK,TRIM0#,2#

main58817-V2050-C1iAAWH15..LHD202306

BLACK,TRIM0#,2#

main58817-V2060-C0iTAWH15..RHD202311

BLACK,TRIM0#,2#

main58817-V2070-C0iTAWH15..LHD202311

BLACK,TRIM0#,2#

58886ACOVER, EQUIPMENT SET PANEL

main58886-V2010iAAWH1#,TAWH15202306

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-V2010iAAWH1#,TAWH15202306

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-V2050-C3iAAWH1#,TAWH15..V202306

BLACK,TRIM0#,2#

main58903-V2070iAAWH1#,TAWH15..X202306

58918ABRACKET, BOX SUPPORT

main58918-V2010iAAWH1#,TAWH15202306

58920AARMREST ASSY, REAR CONSOLE

main58920-V2040-C2iAAWH1#,TAWH15202306

BLACK,TRIM2#

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-V2010iAAWH15,TAWH15..LHD202306

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58993-48060iAAWH1#,TAWH15202306

8121

8202

8401

8603

9011908D23

main90119-08D23

9015950327

main90159-50327

9046705171

main90467-05171

9046705172

main90467-05172

9046808048

main90468-08048

9167380616

main91673-80616

30 parts on this diagram · 7 diagrams in section
