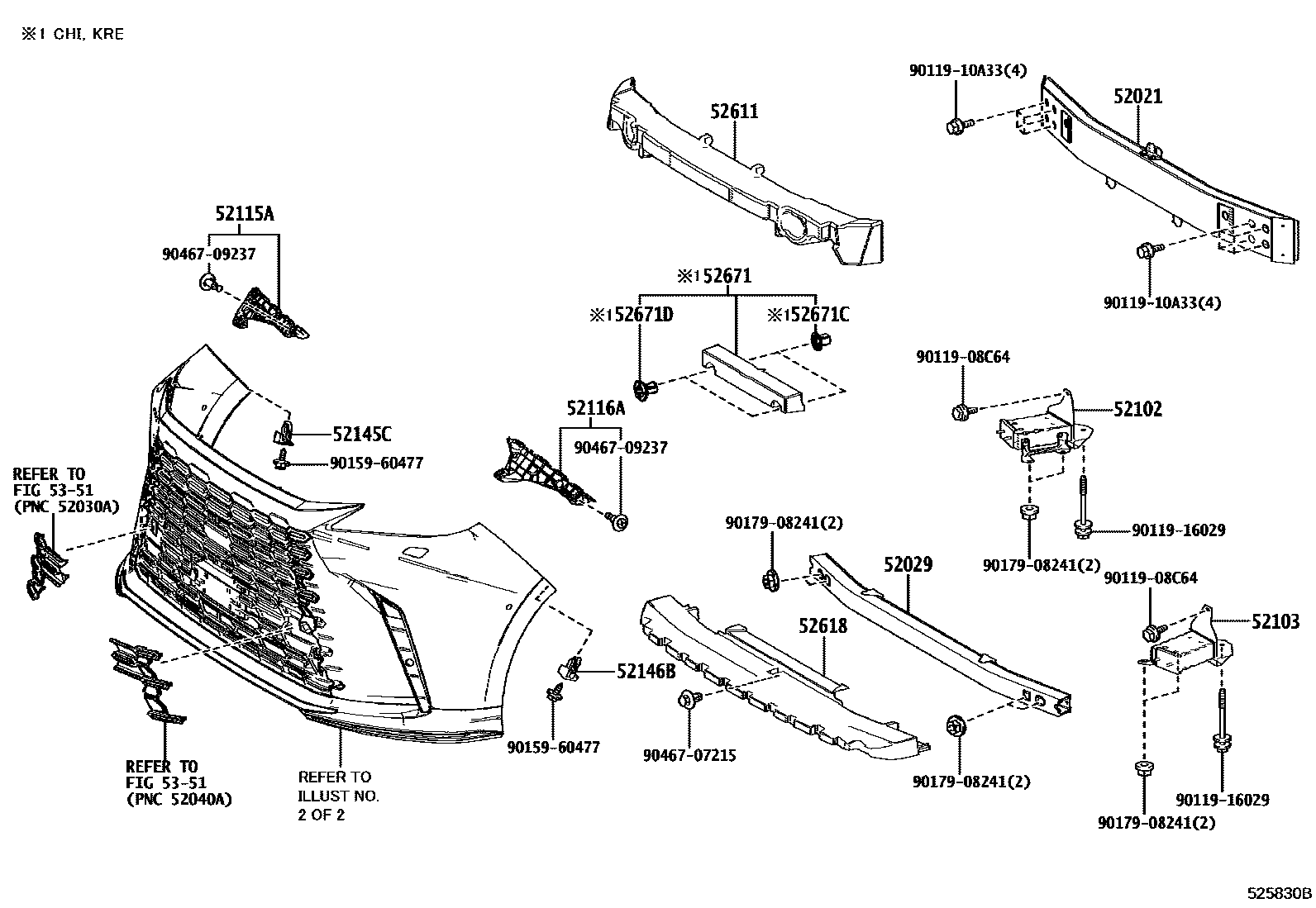

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-V2030iAAWH1#,TAWH15..RHD202306

main52021-V2040iAAWH15,TAWH15..LHD202306

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-V2010iAAWH1#,TAWH15202306

52102BRACKET SUB-ASSY, FRONT BUMPER, RH

main52102-V2010iAAWH1#,TAWH15202306

52103BRACKET SUB-ASSY, FRONT BUMPER, LH

main52103-V2010iAAWH1#,TAWH15202306

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-V2040iAAWH1#,TAWH15202306

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-V2040iAAWH1#,TAWH15202306

52145CBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-33110iAAWH1#,TAWH15202306

52146BBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52146-33110iAAWH1#,TAWH15202306

52611ABSORBER, FRONT BUMPER ENERGY

main52611-V2020iAAWH1#,TAWH15202306

52618ABSORBER, FRONT BUMPER, LOWER

main52618-V2020iAAWH1#,TAWH15202306

52671EXTENSION, FRONT BUMPER ARM

main52671-V2020iAAWH15,TAWH15..CHI,KRE202306

52671CCLIP, FRONT BUMPER ARM EXTENSION, NO.1

main90467-17026-A0×2iAAWH15,TAWH15..CHI,KRE202306

SUPER WHITE 2

52671DCLIP, FRONT BUMPER ARM EXTENSION, NO.2

main90467-17027-C0×2iAAWH15,TAWH15..CHI,KRE202306

BLACK

5351

9011908C64

main90119-08C64

9011910A33

main90119-10A33

9011916029

main90119-16029

9015960477

main90159-60477

9017908241

main90179-08241

9046707215

main90467-07215

9046709237

main90467-09237

21 parts on this diagram · 2 diagrams in section
