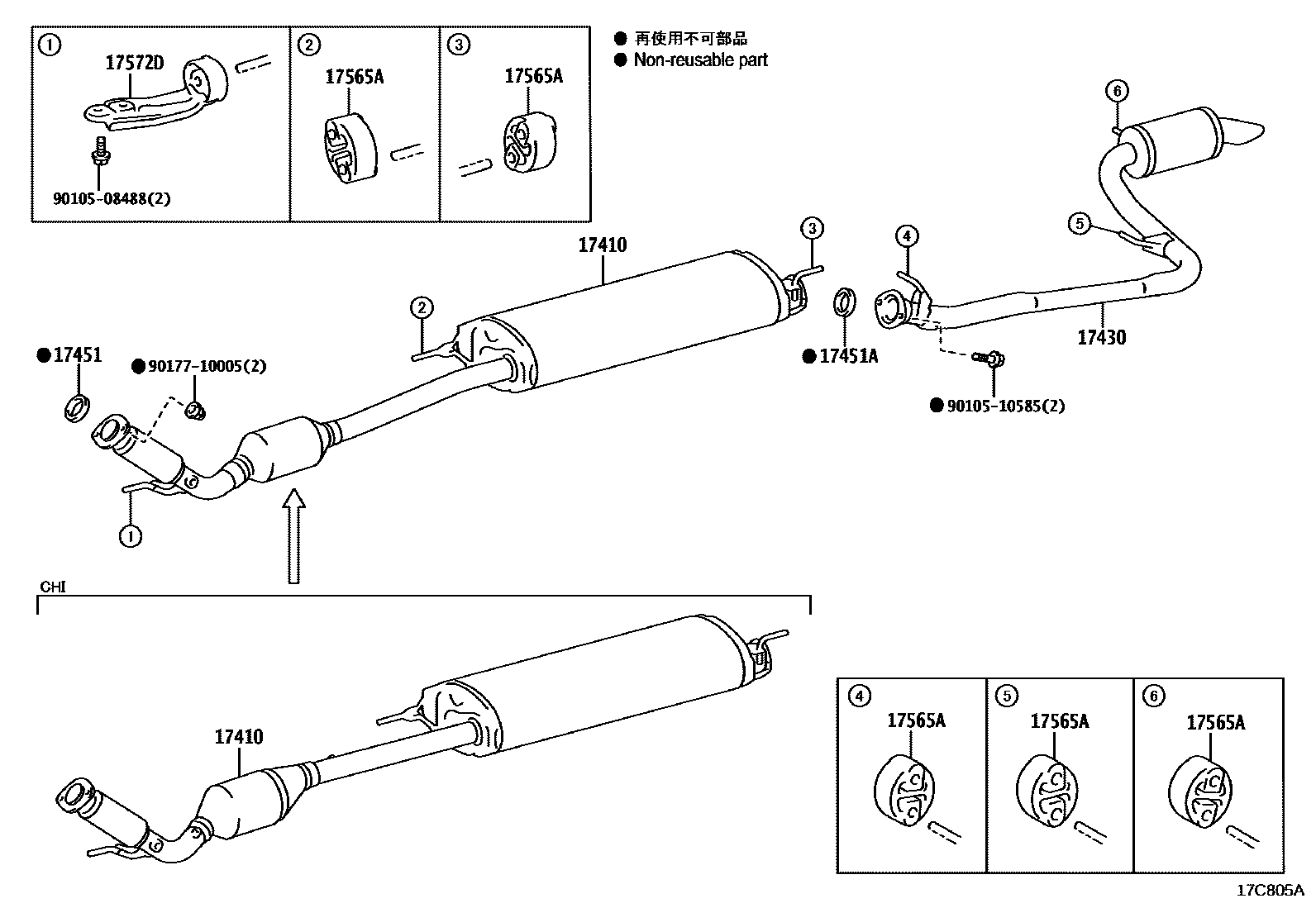

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-V2100iA25..AAWH15..CHI202306

main17410-V2110iA25..AAWH1#..EUR202306

*114=TOYOTA/PE7/Y

main17410-V2140iT24..TAWH15..CHI202311

main17410-V2160iA25..AAWH1#..GEN,PHL,RUS,TWN202306

main17410-V2200iT24..TAWH15..ARL,GEN,KRE,TWN202311

main17410-V2210iA25..AAWH1#..ARL202306

17430PIPE ASSY, EXHAUST, TAIL

main17430-V2070iA25..AAWH1#..ARL,CHI,GEN,PHL,TWN202306

main17430-V2080iA25..AAWH1#..EUR,RUS202306

main17430-V2090iT24..TAWH15202311

17451GASKET, EXHAUST PIPE

main90917-06094iA25..AAWH1#202306

17451AGASKET, EXHAUST PIPE, NO.2

main90917-06090iA25..AAWH1#202306

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010×5iA25..AAWH1#202306

17572DBRACKET, EXHAUST PIPE SUPPORT, NO.1

main17572-25040iA25..AAWH1#202306

main17572-V2010iT24..TAWH15202311

9010508488

main90105-08488

9010510585

main90105-10585

9017710005

main90177-10005

9 parts on this diagram · 2 diagrams in section
