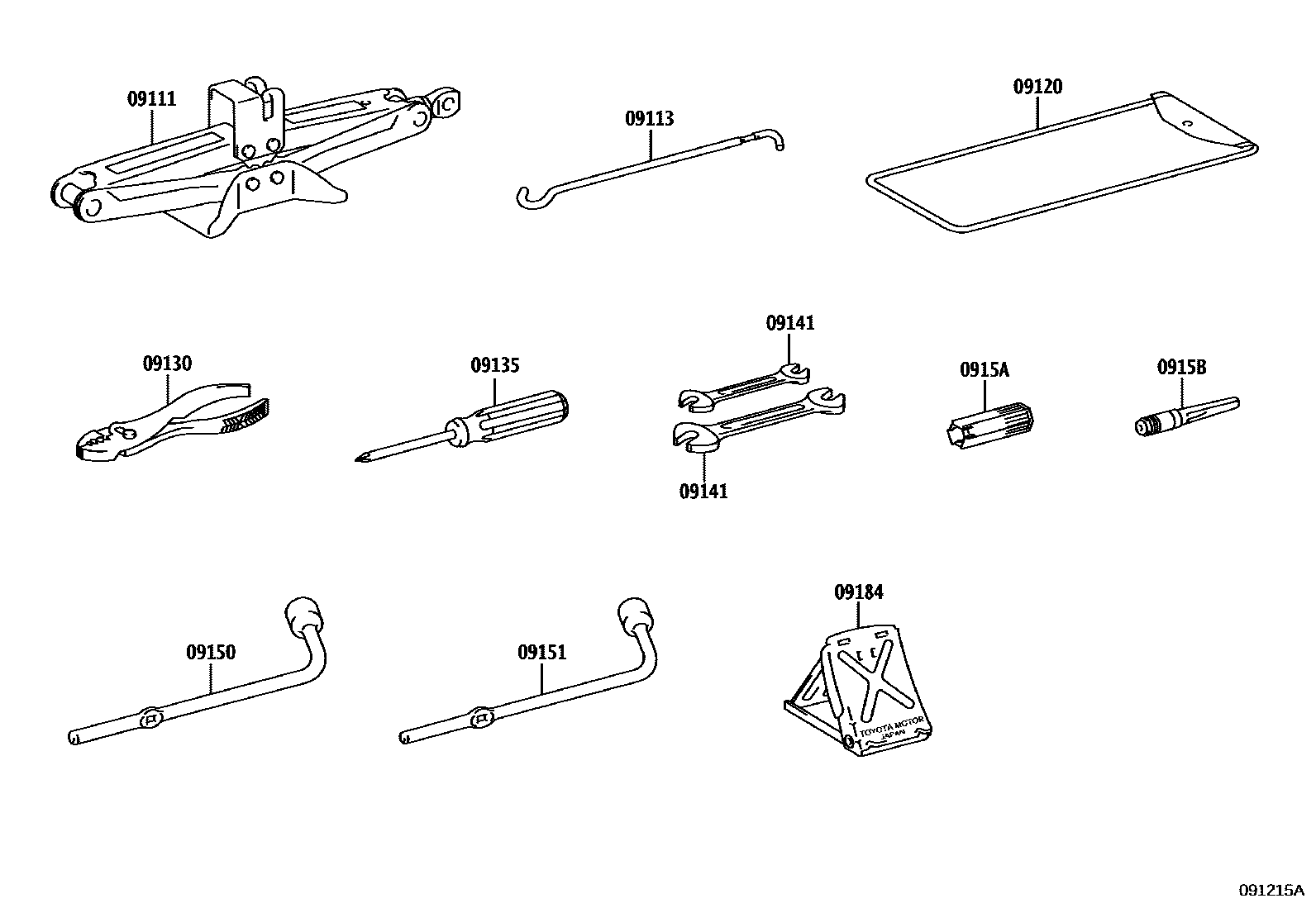

STANDARD TOOL

0001 1 0002 1

09111JACK SUB-ASSY

main09111-V2010iAAWH1#,TAWH15202306

09113HANDLE, JACK

main09113-42030iAAWH1#,TAWH15202306

09120BAG, TOOL

main09120-37030iAAWH1#,TAWH15202306

09130PLIERS

main99913-11500iAAWH1#,TAWH15202306

09135DRIVER, SCREW

main99915-10700iAAWH1#,TAWH15202306

09141SPANNER

main99914-10810iAAWH1#,TAWH15202306

8 X 10

main99914-11214iAAWH1#,TAWH15202306

12 X 14

09150WRENCH, HUB NUT BOX

main09150-V2010iAAWH1#,TAWH15202306

09151WRENCH, HUB BOLT BOX

main09151-78010iAAWH1#,TAWH15202306

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-53010iAAWH1#,TAWH15202306

0915BPIN, WHEEL GUIDE

main0915B-53010iAAWH1#,TAWH15202306

09184STOPPER, WHEEL

main09184-00010iAAWH1#,TAWH15202306

11 parts on this diagram · 2 diagrams in section
