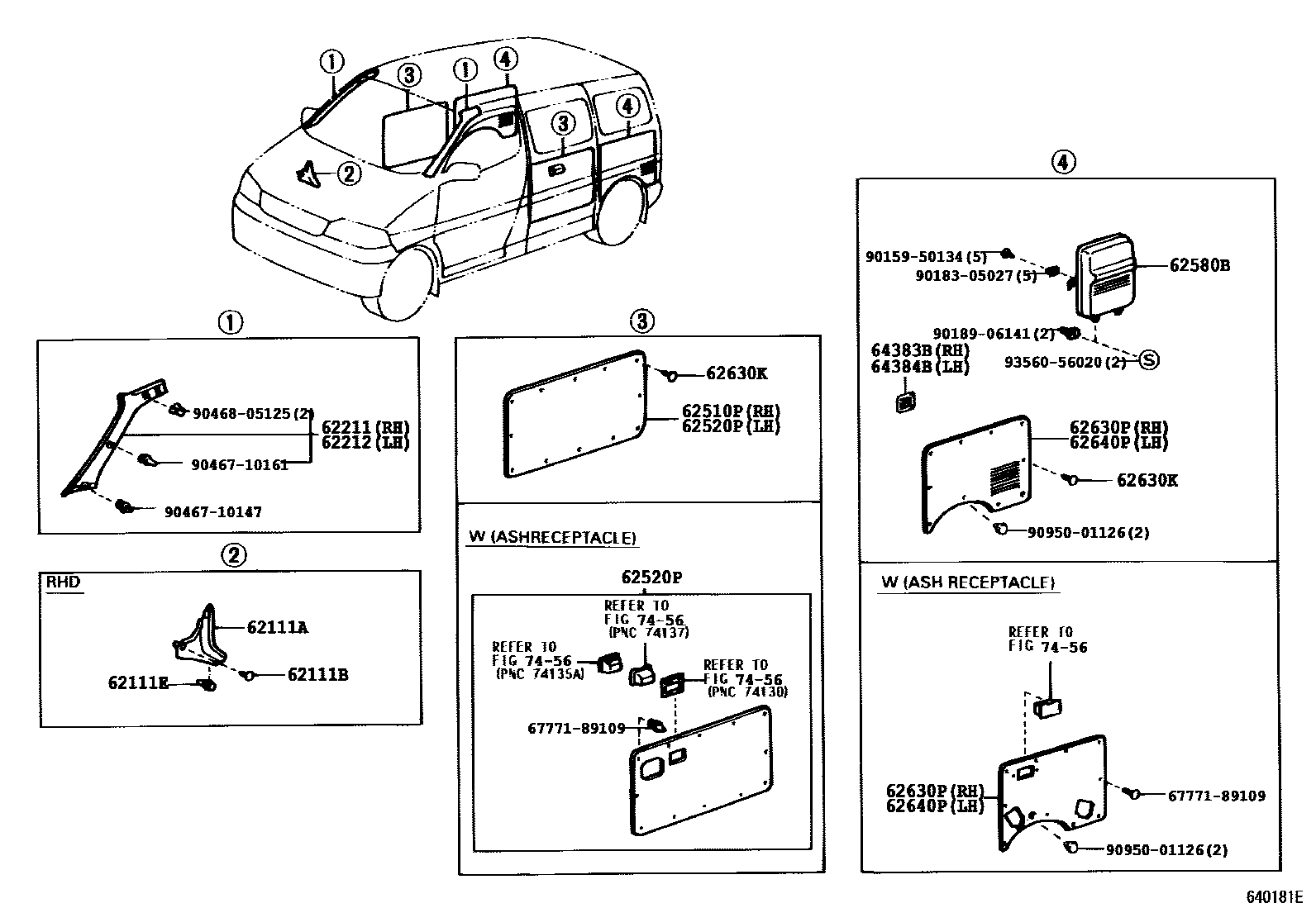

INSIDE TRIM BOARD

0001 1 0002 1 0003 1 0004 1

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62111-26010-B0iLXH12,22,RCH12,13..RHD..03S199508-201010

BLUISH GRAY,TRIM1#

sub62111-26010

main62111-26010-B1iKLH12,22..RHD201010-201111

DK.GRAY,TRIM1#

sub62111-26010

62111BCLIP(FOR COWL SIDE TRIM)

main90467-05080-B0iLXH12,22,RCH12..RHD199508-201010

BLUISH GRAY,TRIM1#

main90467-05080-B2iKLH12,22..RHD201010-201111

DK.GRAY,TRIM1#

62111ERETAINER, COWL SIDE TRIM

main90467-10147iKLH12,22,LXH12,22,RCH12,13,22..RHD199508-200608

62211GARNISH, FRONT PILLAR, RH

main62211-26010-B0iLXH1#,2#,RCH1#,2#..(03S,06S,09S)..EUR199508-199804

LT.BLUISH GRAY,TRIM1#

sub62211-26140

sub90467-06177

main62211-26010-B0iLXH22..LHD..5DV;LXH1#,28,RCH12..STD;LXH22..4DV..(03S,09S);LXH12..LHD..(03S,09S)..DX199809-199907

LT.BLUISH GRAY,TRIM13

sub62211-26140

sub90467-06177

main62211-26010-B1iLXH1#,2#,RCH1#,2#..03S,06S,09S199804-199910

LT.GRAY,TRIM1#

sub62211-26140

sub90467-06177

main62211-26040-B0iLXH12,RCH12,13..05S199508-199907

LT.BLUISH GRAY,TRIM1#

sub62211-26110

sub90467-06177

main62211-26040-B3iLXH12,RCH12,13..05S199708-199907

LT.GRAY,TRIM13

sub62211-26110

sub90467-06177

main62211-26090-B0iLXH1#,2#,RCH1#,2#..DX,STD199907-200108

LT.GRAY,TRIM1#

sub62211-26130

sub90467-06177

main62211-26110-B0iLXH12..GL199907-201010

LT.GRAY,TRIM1#

sub62211-26110

main62211-26130-B0iKLH1#,2#..DX,STD200108-201010

LT.GRAY,TRIM1#

main62211-26130-B1iKLH1#,2#201010-201111

LT.GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-26010-B0iLXH1#,2#,RCH1#,2#..(03S,06S,09S)..EUR199508-199804

LT.BLUISH GRAY,TRIM1#

sub62212-26110

sub90467-06177

main62212-26010-B0iLXH22..LHD..5DV;LXH1#,28,RCH12..STD;LXH22..4DV..(03S,09S);LXH12..LHD..(03S,09S)..DX199809-199907

LT.BLUISH GRAY,TRIM13

sub62212-26110

sub90467-06177

main62212-26010-B1iLXH1#,2#,RCH1#,2#..03S,06S,09S199804-199910

LT.GRAY,TRIM1#

sub62212-26110

sub90467-06177

main62212-26040-B0iLXH12,RCH12,13..05S199508-199907

LT.BLUISH GRAY,TRIM1#

sub62212-26040

main62212-26040-B2iLXH12..GL199907-201010

LT.GRAY,TRIM1#

sub62212-26040

main62212-26040-B2iLXH12,RCH12,13..05S199708-199907

LT.GRAY,TRIM13

sub62212-26040

main62212-26090-B0iLXH1#,2#,RCH1#,2#..DX,STD199907-200108

LT.GRAY,TRIM1#

sub62212-26100

sub90467-06177

main62212-26100-B0iKLH1#,2#..DX,STD200108-201010

LT.GRAY,TRIM1#

main62212-26100-B1iKLH1#,2#201010-201111

LT.GRAY,TRIM1#

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62511-26050iLXH12,22,RCH12,13..RHD..4DV..03S199508-200108

sub62511-26051

main62511-26051iKLH12..RHD..4DV;KLH22..4DV..03S200108-200608

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62512-26020iLXH22,RCH12,13,23..LHD..4DV..03S;LXH12,RCH18,19,22..LHD..4DV..(03S,06S)199508-200108

sub62512-26021

main62512-26021iRCH13,19,23..LHD..4DV..STD200108-201111

main62520-26020-B0iLXH22..06S199508-201010

BLUISH GRAY,TRIM1#

main62520-26020-B1iKLH22..06S201010-201111

DK.GRAY,TRIM1#

main62520-26030-B0iKLH22..06S199508-201010

W(REAR HEATER),BLUISH GRAY,TRIM1#

sub62520-26040

main62520-26030-B1iKLH22..06S201010-201111

W(REAR HEATER),DK.GRAY,TRIM1#

sub62520-26040

main62520-26040-B0iRCH13,23..MTM..DX199508-201010

BLUISH GRAY,TRIM1#

62580BBOARD ASSY, SIDE HEATER COVER, RH

main62595-95J04-B0iRCH13..ATM..DX;LXH12,22..4DV..(06S,09S)199508-201010

BLUISH GRAY,TRIM1#

main62595-95J04-B1iKLH22..06S201010-201111

DK.GRAY,TRIM1#

62630KCLIP(FOR QUARTER TRIM REAR PANEL)

main67771-26230-E0iKLH2#..5DV200408-201111

CREAM YELLOW,TRIM1#

main67771-26230-E0iRCH1#..5DV200408-200605

W(REAR HEATER),CREAM YELLOW,TRIM1#

main90467-10034-N8iLXH12..4DV..03S199508-200407

CREAM YELLOW,TRIM1#

sub90467-10034

main90467-10034-N8iKLH22,RCH23..4DV..STD199804-200407

W(REAR HEATER),CREAM YELLOW,TRIM1#

sub90467-10034

62630PPANEL ASSY, QUARTER TRIM, REAR RH

main62630-26430-B0iLXH12,RCH1#..09S199508-199907

BLUISH GRAY,TRIM1#

main62630-26431-B0iLXH12,RCH13..09S199907-200108

W(REAR HEATER),BLUISH GRAY,TRIM1#

main62630-26432-B0iKLH12..09S200108-201010

BLUISH GRAY,TRIM1#

main62630-26440-B0iLXH12,RCH12..05S199508-199804

BLUISH GRAY,TRIM1#

main62630-26550-B0iLXH12,RCH12,18..09S199708-199907

W(ANTENNA),BLUISH GRAY,TRIM1#

main62630-26550-B0iRCH13,19..09S199804-199907

W(4 SPEAKER),BLUISH GRAY,TRIM1#

main62630-26551-B0iLXH12,RCH13..09S199907-200108

W(4 SPEAKER),BLUISH GRAY,TRIM1#

main62630-26552-B0iKLH12..09S200108-201010

W(4 SPEAKER),BLUISH GRAY,TRIM1#

main62630-26780-B0iLXH22..DX199804-200108

BLUISH GRAY,TRIM1#

main62630-26780-B0iRCH23..DX199703-200108

W(ANTENNA),BLUISH GRAY,TRIM1#

main62630-26781-B0iRCH23..DX200108-201010

BLUISH GRAY,TRIM1#

main62630-26C50-B0iKLH12,RCH1#..GL200405-200501

BL.GRAY,TRIM1#

sub62630-26C50

main62630-26C50-B1iKLH12..GL200501-200608

BLUISH GRAY,TRIM1#

sub62630-26C50

main62630-26C51-B2iKLH1#..GL200608-201010

BLUISH GRAY,TRIM1#

main62630-26C70-B0iKLH12,RCH1#..GL200405-200501

W(4 SPEAKER),BL.GRAY,TRIM1#

sub62630-26C70

main62630-26C70-B1iRCH1#..GL200501-200608

W(4 SPEAKER),BLUISH GRAY,TRIM1#

sub62630-26C70

main62630-26C71-B2iKLH1#..GL200608-201010

W(4 SPEAKER),BLUISH GRAY,TRIM1#

main62630-2F120-B0iLXH12,RCH12..05S199708-199804

W(4 SPEAKER),BLUISH GRAY,TRIM1#

main62630-2F150-B0iLXH12,RCH13..05S199804-199907

BLUISH GRAY,TRIM1#

main62630-2F160-B0iLXH12,RCH13..05S199804-199907

W(4 SPEAKER),BLUISH GRAY,TRIM1#

main62630-2F430-B0iLXH12,RCH13,19..GL199907-200108

BLUISH GRAY,TRIM1#

sub62630-2F440

main62630-2F431-B0iKLH12,RCH13,19..GL200108-200405

BLUISH GRAY,TRIM1#

main62630-2F431-B0iKLH12..GL200405-200608

W/O(REAR SEAT),BLUISH GRAY,TRIM1#

main62630-2F432-B1iKLH1#..GL200608-201010

W/O(REAR SEAT),BLUISH GRAY,TRIM1#

main62630-2F440-B0iLXH12,RCH13,19..GL199907-200108

W(4 SPEAKER),BLUISH GRAY,TRIM1#

main62630-2F441-B0iKLH12,RCH13,19..GL200108-200405

W(4 SPEAKER),BLUISH GRAY,TRIM1#

main62630-2F441-B0iRCH1#..GL200405-200608

W(4 SPEAKER) & W/O(REAR SEAT),BLUISH GRAY,TRIM1#

main62630-2F442-B1iKLH1#..GL200608-201010

W(4 SPEAKER) & W/O(REAR SEAT),BLUISH GRAY,TRIM1#

main62631-26030iRCH13..03S;LXH1#,2#,RCH12,18,19,2#..(03S,06S)..STD199508-200108

sub62631-26031

main62631-26031iRCH13,19,23,29..STD200108-200608

main62631-26031iKLH12..06S200608-201010

W/O(REAR SEAT)

main62631-26060iLXH1#..5DV..TD;LXH12..LHD..SP..DSL199510-200108

NORWAY SPEC OR HOLLAND SPEC

sub62631-26061

main62631-26060iRCH13,19..LHD..03S199804-200108

NETHERLAND SPEC

sub62631-26061

main62631-26060iRCH13,19..LHD..03S199510-200108

HOLLAND SPEC

sub62631-26061

main62631-26060iRCH18..03S;RCH12..03S..ATM199508-199708

NORWAY SPEC

sub62631-26061

main62631-26061iRCH13,19..LHD..03S200108-201010

W(REAR SEAT BELT ANCHOR) & W/O(HEATER)

main62631-26070iLXH12..03S..DX;LXH1#,RCH1#..LHD..SP199508-199907

W(REAR SEAT BELT)

main62631-26071iLXH12..03S..DX;LXH1#,RCH13,19..LHD..SP199907-200108

W(REAR SEAT BELT)

sub62631-26072

main62631-26072iKLH12..03S..DX200108-201010

W(REAR SEAT BELT ANCHOR)

main62631-26090iRCH2#..03S199804-200108

W(REAR SEAT BELT)

sub62631-26091

main62631-26090iLXH2#,RCH22..LHD..03S199703-200108

W(REAR SEAT BELT ANCHOR)

sub62631-26091

main62631-26090iRCH28199708-199804

NORWAY SPEC & W(REAR SEAT BELT ANCHOR)

sub62631-26091

main62631-26091iKLH2#..03S200108-201010

W(REAR SEAT BELT ANCHOR)

main62631-26170iLXH12,RCH13,19..06S199804-200108

W(REAR HEATER)

sub62631-26171

main62631-26171iRCH13,19..06S200108-200608

W(REAR HEATER)

62640PPANEL ASSY, QUARTER TRIM, REAR LH

main62632-26080iRCH13,19..03S;LXH1#,2#,RCH12,2#..STD199804-200108

HUNGARY SPEC

sub62632-26081

main62632-26080iRCH13,19..03S;LXH1#,2#,RCH12,18,2#..(03S,06S)..STD199508-199910

sub62632-26081

main62632-26081iKLH22..STD;KLH1#,28..03S..STD200108-200608

main62632-26081iKLH18..06S200808-201010

HUNGARY SPEC & W/O(REAR SEAT)

main62632-26081iKLH12..06S200608-201010

W/O(REAR SEAT)

main62632-26110iLXH1#..5DV..TD;RCH12..5DV..MTM;LXH12..LHD..SP..DSL199510-200108

NORWAY SPEC OR HOLLAND SPEC

sub62632-26111

main62632-26110iLXH1#..5DV..TD;LXH12..LHD..SP..DSL199510-200108

HOLLAND SPEC

sub62632-26111

main62632-26110iLXH1#..5DV..TD;LXH12..LHD..SP..DSL199804-200108

NETHERLAND SPEC

sub62632-26111

main62632-26110iLXH12..LHD..SP..DSL;LXH12,RCH12..5DV..03S..(EFI,TD)199508-199708

NORWAY SPEC

sub62632-26111

main62632-26111iRCH13,19..LHD..03S200108-201010

W(REAR SEAT BELT ANCHOR) & W/O(HEATER)

main62632-26120iLXH12..03S..DX;LXH1#,RCH1#..LHD..SP199508-199907

W(REAR SEAT BELT)

main62632-26121iLXH12..03S..DX;LXH1#,RCH13,19..LHD..SP199907-200108

W(REAR SEAT BELT)

sub62632-26122

main62632-26122iRCH13,19..LHD..03S200108-201010

W(REAR SEAT BELT ANCHOR)

main62632-26150iRCH28199708-199804

NORWAY SPEC & W(REAR SEAT BELT ANCHOR)

sub62632-26151

main62632-26150iLXH2#,RCH23,29..LHD..03S199703-200108

W(REAR SEAT BELT ANCHOR)

sub62632-26151

main62632-26151iKLH22..RHD200108-201010

W(REAR SEAT BELT ANCHOR)

main62632-26151iKLH2#..LHD..03S200608-201010

FINLAND SPEC OR NORWAY SPEC OR SWEDEN SPEC

main62632-26230iLXH12,RCH13,19..06S199907-200108

W(REAR HEATER)

sub62632-26231

main62632-26230iRCH13,19..06S199804-199907

sub62632-26231

main62632-26231iKLH12..06S200108-200608

W(REAR HEATER)

main62632-26231iKLH1#..06S200608

main62640-26330-B0iLXH12,RCH1#..09S199508-199907

BLUISH GRAY,TRIM1#

main62640-26331-B0iRCH13..MTM..DX199907-200605

W(REAR HEATER),BLUISH GRAY,TRIM1#

main62640-26331-B0iKLH12..09S200108-201010

BLUISH GRAY,TRIM1#

main62640-26340-B0iLXH12,RCH12..05S199508-199804

BLUISH GRAY,TRIM1#

main62640-26410-B0iRCH23..DX199703-201010

BLUISH GRAY,TRIM1#

main62640-26D00-B0iKLH12..GL200405-200608

BL.GRAY,TRIM1#

main62640-26D01-B1iKLH1#..GL200608-201010

BLUISH GRAY,TRIM1#

main62640-26D10-B0iKLH12..GL200405-200608

4 SPEAKER,BL.GRAY,TRIM1#

main62640-26D11-B1iKLH1#..GL200608-201010

W(4 SPEAKER),BLUISH GRAY,TRIM1#

main62640-2F020-B0iLXH12,RCH12,18..09S199708-199907

W(ANTENNA),BLUISH GRAY,TRIM1#

main62640-2F020-B0iRCH13,19..09S199804-199907

W(4 SPEAKER),BLUISH GRAY,TRIM1#

main62640-2F021-B0iLXH12..09S;RCH13..ATM..DX199907-201010

W(4 SPEAKER),BLUISH GRAY,TRIM1#

main62640-2F060-B0iLXH12,RCH12..05S199708-199804

W(4 SPEAKER),BLUISH GRAY,TRIM1#

main62640-2F080-B0iLXH12,RCH13..05S199804-199907

BLUISH GRAY,TRIM1#

main62640-2F090-B0iLXH12,RCH13..05S199804-199907

W(4 SPEAKER),BLUISH GRAY,TRIM1#

main62640-2F240-B0iKLH12..GL199907-200608

BLUISH GRAY,TRIM1#

main62640-2F241-B1iKLH1#..GL200608-201010

W/O(REAR SEAT),BLUISH GRAY,TRIM1#

main62640-2F250-B0iKLH12,RCH13,19..GL199907-200608

W(4 SPEAKER),BLUISH GRAY,TRIM1#

main62640-2F251-B1iKLH1#..GL200608-201010

W(4 SPEAKER) & W/O(REAR SEAT),BLUISH GRAY,TRIM1#

64383BGRILLE, REAR SPEAKER, RH

main67653-20010-B1iKLH12..09S199708-201010

BLUISH GRAY,TRIM1#

sub67653-20010

main67653-20010-B1iLXH12,22,RCH13,19..09S199809-199907

BLUISH GRAY,TRIM13

sub67653-20010

main86269-60060-B0iLXH22,RCH22,23..DX199708-201010

BLUEISH GRAY,TRIM1#

sub86269-60060

64384BGRILLE, REAR SPEAKER, LH

main67653-20010-B1iRCH13..MTM..DX199708-201010

BLUISH GRAY,TRIM1#

sub67653-20010

main67653-20010-B1iLXH12,22,RCH13,19..09S199809-199907

BLUISH GRAY,TRIM13

sub67653-20010

main86269-60060-B0iLXH22,RCH22,23..DX199708-201010

BLUEISH GRAY,TRIM1#

sub86269-60060

7456

6777189109WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-89109

9015950134

main90159-50134

9018305027

main90183-05027

9018906141

main90189-06141

9046710147

main90467-10147

9046710161

main90467-10161

9046805125

main90468-05125

9095001126

main90950-01126

9356056020

main93560-56020

23 parts on this diagram · 4 diagrams in section
