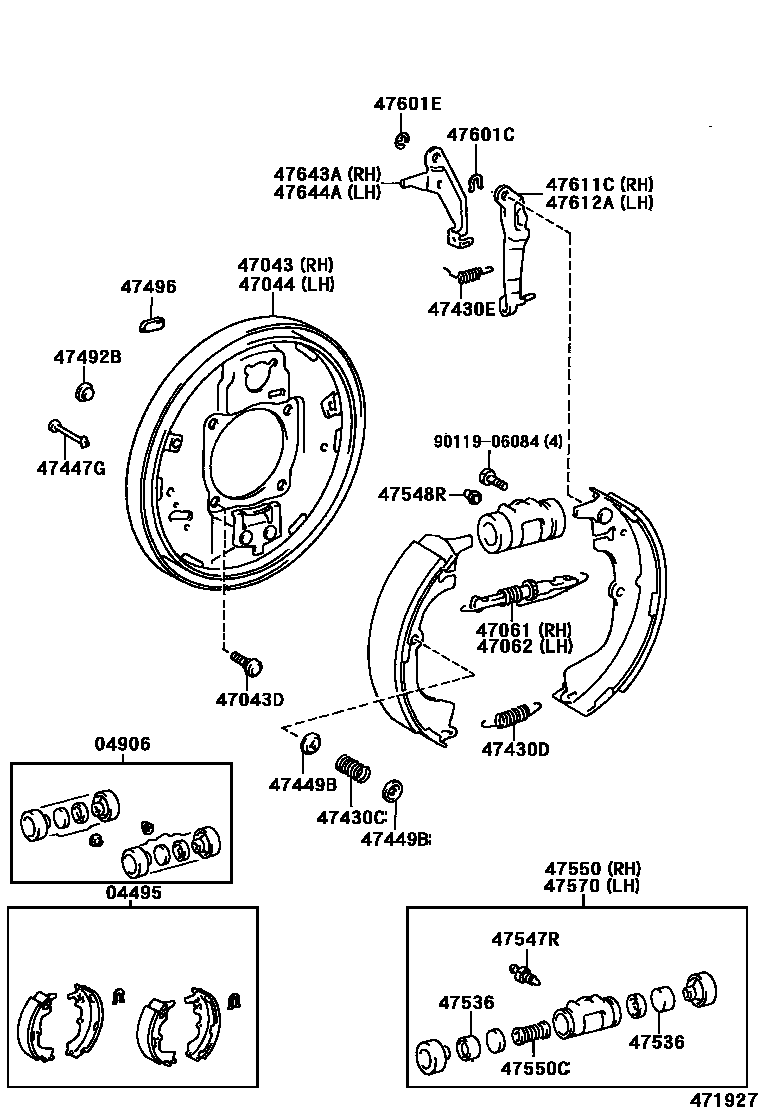

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04495SHOE KIT, REAR BRAKE

main04495-26210iLXH12,2#,RCH12,13,2#199508-199907

MARK NBK LN508

main04495-26220iLXH18,RCH18,19199608-199907

main04495-26230iRCH12,22199907-200311

MARK NBK LN508

04906CUP KIT, REAR WHEEL CYLINDER

main04906-26060iRCH12,22199907-200311

main04906-30071iLXH12,RCH12199508-199608

sub04906-30120

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-26160iLXH1#,2#,RCH1#,2#199508-199705

main47043-26161iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199705-199910

main47043-26470iRCH12,22200211-200311

47043DBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90119-12296×8iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199910

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-26160iLXH1#,2#,RCH1#,2#199508-199705

main47044-26161iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199705-199910

main47044-26470iRCH12,22200211-200311

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-26030iLXH1#,2#,RCH1#,23,29..03S,05S,06S,09S199804-199910

main47061-35020iLXH1#,2#,RCH1#,2#199508-199804

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-26030iLXH1#,2#,RCH1#,23,29..03S,05S,06S,09S199804-199910

main47062-35020iLXH1#,2#,RCH1#,2#199508-199804

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012×4iKLH1#,2#199907-200608

main90501-20604×4iLXH12,RCH12199508-199608

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-20070×2iLXH1#,2#,RCH1#,2#199508-199804

main90506-20072×2iLXH1#,2#;RCH13..ATM199907-200108

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90507-12036×2iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199910

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010×4iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199910

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iKLH1#,2#199907-200608

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010×2iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199910

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iLXH1#,2#;RCH13..ATM199907-200108

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-30040×4iLXH12,RCH12199508-199608

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030×2iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199910

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iLXH1#,2#,RCH1#,2#199508-199907

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-26130iLXH1#,2#;RCH13..ATM199907-200108

main47550-30140iLXH12,RCH12199508-199608

sub47550-35260

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-30010×2iLXH12,RCH12199508-199608

main90029-60009×2iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199608-199910

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26130iKLH1#,2#199907-200608

main47550-30140iLXH12,RCH12199508-199608

sub47550-35260

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010×2iKLH2#199907-200608

T=1.6

47601ERING, E(FOR REAR BRAKE)

main96160-00500×2iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199910

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-26050iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199910

47612ALEVER, PARKING BRAKE SHOE, LH

main47612-26050iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199910

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-26010iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199910

main47643-26020iRCH12,22200209-200311

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-26010iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199910

main47644-26020iRCH12,22200209-200311

9011906084

main90119-06084

27 parts on this diagram · 2 diagrams in section
