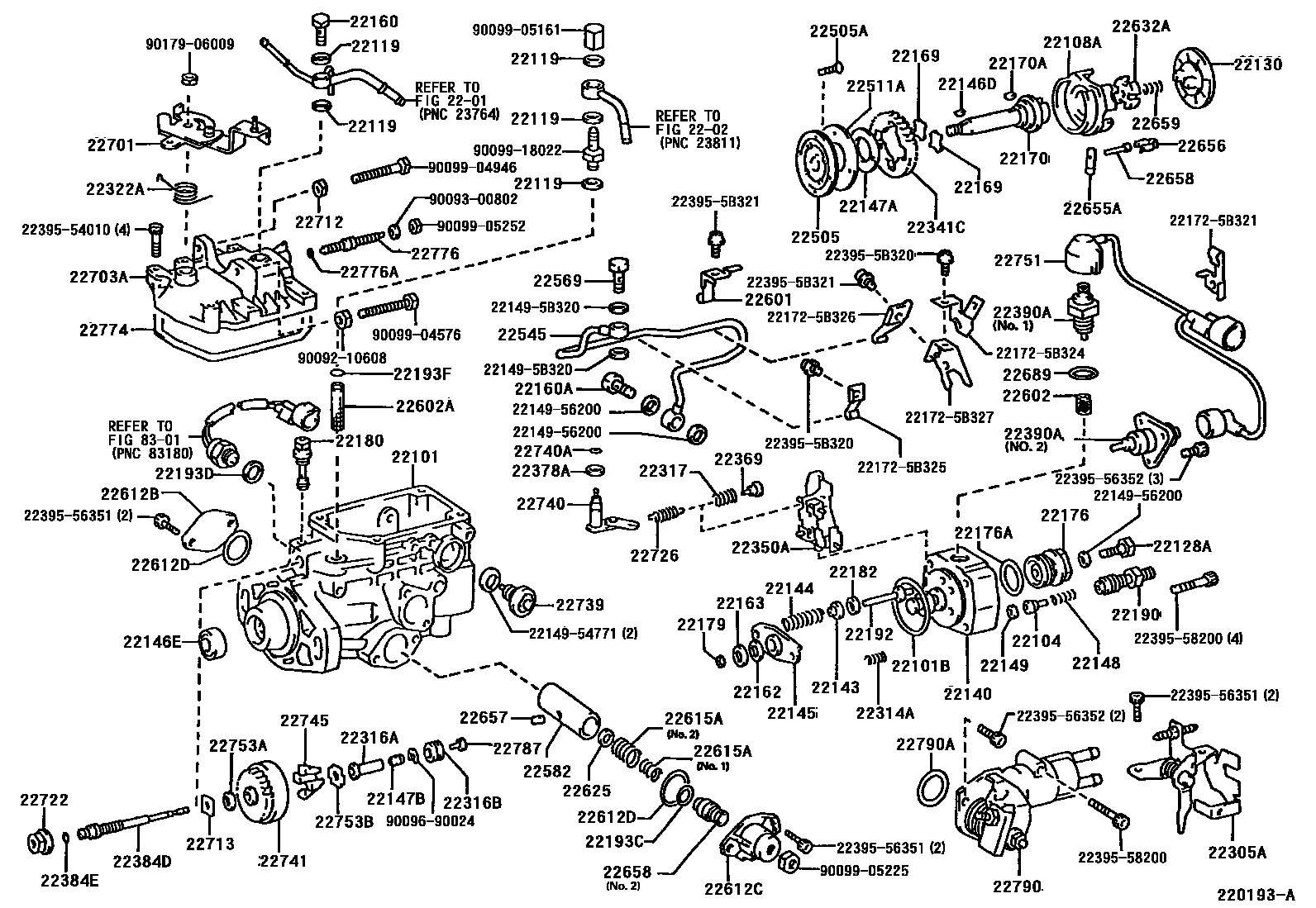

INJECTION PUMP BODY
2201
2202
22101HOUSING SUB-ASSY, INJECTION PUMP
W(IMMOBILIZER & TACHO METER)
W(IMMOBILIZER)
W(IMMOBILIZER)
W(TACHO METER)
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108ARING SUB-ASSY, ROLLER
22119WASHER, AIR BLEEDER NIPPLE
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22146ESEAL(FOR DRIVE SHAFT)
22147AWASHER, DRIVE SHAFT
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22160SCREW SUB-ASSY, OVERFLOW
22160ASCREW SUB-ASSY, OVER FLOW, NO.2
W(IMMOBILIZER)
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
22170AKEY(FOR DRIVE SHAFT)
22176PLUG, DISTRIBUTIVE HEAD
22179SHIM, PLUNGER ADJUSTING
T=1.9
T=2.0
T=2.1
T=2.2
T=2.3
T=2.4
T=2.5
T=2.6
T=2.7
T=2.8
T=2.9
22180VALVE SUB-ASSY, REGULATOR
22182PLATE, TAPPET ADJUSTING SHIM
T=0.5
T=0.8
T=1.0
T=1.2
T=1.5
T=1.8
T=2.0
22190VALVE SUB-ASSY, SNUBBER
22192GUIDE SUB-ASSY, PLUNGER SPRING
22193RING, O(FOR LEVER CONNECTING PIN)
22193CRING, O(FOR TIMER COVER STOPPER)
22193DRING, O(FOR REVOLUTION DETECTOR)
22193FRING, O(FOR FUEL INJECTION PUMP FILTER)
22305AIDLE-UP SUB-ASSY
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
ID=0.85
ID=0.95
ID=0.95
ID=0.65
ID=0.85
ID=1.15
ID=0.8
ID=0.8,W(IMMOBILIZER)
ID=0.75
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
22317SPRING, GOVERNOR DOMPER
K=0.2,L=6.5
K=0.15,L=7.0
K=0.15,L=7.3
K=0.15,L=7.6
K=0.2,L=6.2
K=0.2,L=6.8
22322ASPRING, RETURN
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
22369SEAT, GOVERNOR SPRING
22378AWASHER, GOVERNOR THRUST
main22378-64010i2LT..LXH1#,2#;2L..LXH12,22..RHD;2L..LXH12,22..LHD..5DV;2L..LXH12..LHD..SG..03S199508-200108
22384DSHAFT, GOVERNOR
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22390ASOLENOID ASSY, FUEL CUT
NO.1
NO.2
W(IMMOBILIZER),NO.2
NO.2
NO.2
sub22390-6A511
NO.1
W(IMMOBILIZER),NO.1
W(IMMOBILIZER)
main22390-6D810i2L..LXH12..STD;2L..LXH22..4DV;2L..LXH12..LHD..DX;2L..LXH22..LHD..5DV;2LT..LXH1#,2#..03S,05S,09S199804-200108
W(IMMOBILIZER & TACHO METER),NO.1
NO.1
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22511ACOVER, FEED PUMP
W(TACHO METER)
22569SCREW, OVERFLOW
22601BRACKET SUB-ASSY, IDLE UP
W(IMMOBILIZER & TACHO METER)
main22601-5B540i2L..LXH12..LHD..DX;2L..LXH12,22..LHD..5DV;2L..LXH12,22..4DV..STD;2LT..LXH1#,2#..03S,05S,09S199608-200108
W(IMMOBILIZER)
22602FILTER SUB-ASSY, FUEL INJECTION PUMP
NO.1
NO.2
22602AFILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2
22612BCOVER, TIMER
22615ASPRING, TIMER OUTER
K=0.16,L=32.3
K=0.16,L=32.3,W(IMMOBILIZER),NO.1
K=0.16,L=32.3,NO.1
K=0.18,L=32.0
K=1.7,L=27.9
main22615-17030i2L..LXH12..STD;2L..LXH22..4DV;2L..LXH12..LHD..DX;2L..LXH22..LHD..5DV;2LT..LXH1#,2#..03S,05S,09S199508-200108
K=1.7,L=27.9,NO.2
K=0.15,L=32.5
K=0.15,L=32.5,NO.1
K=0.17,L=32.2,NO.1
K=0.17,L=32.2
K=0.105,L=38.4,NO.1
K=0.10,L=37.2,NO.1
K=0.11,L=35.5,NO.1
K=0.12,L=35.0,NO.1
K=0.13,L=34.6,NO.1
K=0.14,L=34.3
K=0.14,L=34.3,NO.1
K=0.14,L=34.3,W(IMMOBILIZER),NO.1
K=0.13,L=35.1
K=0.13,L=35.1,W(IMMOBILIZER),NO.1
K=0.13,L=35.1,NO.1
K=0.10,L=38.4
K=0.11,L=37.6
K=0.12,L=35.9
K=0.14,L=35.0
22625WASHER, TIMER SENSOR ADJUSTING
22632ACOUPLING, INJECTION PUMP
22655APIN, TIMER SLIDE
22657CLIP, TIMER
22658STOPPER, TIMER
NO.2
NO.2
NO.1
22659SPRING, COUPLING
22689WASHER(FOR SWIVEL NIPPLE)
NO.1
NO.2
22701LEVER SUB-ASSY, ADJUSTING
MARK 130
MARK 131
MARK 330
MARK 331
MARK 667
MARK 668
22703ACOVER SUB-ASSY, GOVERNOR
22712NUT, ROCK
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05
T=1.25
T=1.45
T=1.65
T=1.85
22722NUT, GOVERNOR SHAFT ROCK
NO.2
NO.1
22726SPRING, SPEED CONTROL
22739BOLT, GOVERNOR LINK SUPPORT
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
W(IMMOBILIZER)
W(IMMOBILIZER & TACHO METER)
W(IMMOBILIZER)
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
22774GASKET, GOVERNOR COVER
22776SCREW, SMOKE SET ADJUSTING
22787PLUG, GOVERNOR SLEEVE
L=3.4
L=3.6
L=3.8
L=4.0
L=4.1
L=3.0
L=3.2
L=4.2
22790COVER SUB-ASSY, TIMER
8301
2214954771GASKET, DELIVERY VALVE
main22149-54771
2214956200GASKET, DELIVERY VALVE
main22149-56200
221495B320GASKET, DELIVERY VALVE
main22149-5B320
221725B321CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-5B321
221725B324CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-5B324
221725B325CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-5B325
221725B326CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-5B326
221725B327CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-5B327
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56351
2239556352BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56352
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
223955B320BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-5B320
223955B321BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-5B321
9009210608
main90092-10608
9009300802
main90093-00802
9009690024
main90096-90024
9009904576
main90099-04576
9009904946
main90099-04946
9009905161
main90099-05161
9009905225
main90099-05225
9009905252
main90099-05252
9009918022
main90099-18022
9017906009
main90179-06009
116 parts on this diagram · 12 diagrams in section
