VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-54120i2L#..LXH1#199508-199609

main29300-54150i2L#..LXH1#,2#199609-199907

main29300-67020i2KDFTV..KLH1#,2#200108-200608

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02118i2L..LXH12,22199508-199907

main90923-02119i2LT..LXH1#,2#199508-199907

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54090i2L#..LXH1#,2#199508-199907

29314RING, STOP

main29314-64030i2L#..LXH1#,2#199508-199907

29322BBEARING, VACUUM PUMP

main90099-10166i2L#..LXH1#199508-199612

main90099-10185i2KDFTV..KLH1#,2#200608

main90099-10199i2L#..LXH1#,2#199612-199907

29331BLADE, VACUUM PUMP, A

main29331-54130×5i2L#..LXH1#,2#199708-199907

main29331-64030×5i2LT..LXH1#;2L..LXH12..RHD;2L..LXH12..5DV;2L..LXH12..4DV..SG199601-199703

main29331-67020×5i2KDFTV..KLH1#,2#200608

29336SHAFT, VACUUM PUMP

main29336-58050i2KDFTV..KLH1#,2#200108-200608

main29336-64031i2L#..LXH1#,2#199907-200108

29341ASEAL, OIL

main29341-64030i2L#..LXH1#,2#199508-199907

29342PACKING, VACUUM PUMP

main29342-58010i2KDFTV..KLH1#,2#200108-200608

NO.1

main29342-67020i2KDFTV..KLH1#,2#200608

NO.2

main29342-68010×2i2KDFTV..KLH1#,2#200108-200608

NO.3

29342BRING, O

main29342-64030i2L#..LXH1#,2#199907-200108

29364WASHER, VACUUM PUMP

main29364-66010i2L#..LXH1#,2#199508-199907

29366PULLEY, VACUUM PUMP

main29366-54110i2L#..LXH1#,2#199508-199907

29369VALVE SUB-ASSY, CHECK

main29369-64030i2L#..LXH1#,2#199508-199907

2932164030RING, OIL SEAL STOP, VACUUM PUMP

main29321-64030

9009900166

main90099-00166

9009904577

main90099-04577

9009905171

main90099-05171

9020114099

main90201-14099

9040109001

main90401-09001

9040114006

main90401-14006

9040451012

main90404-51012

9043010020

main90430-10020

9043010035

main90430-10035

9046716016

main90467-16016

9331914012

main93319-14012

9331915012

main93319-15012

9634111000

main96341-11000

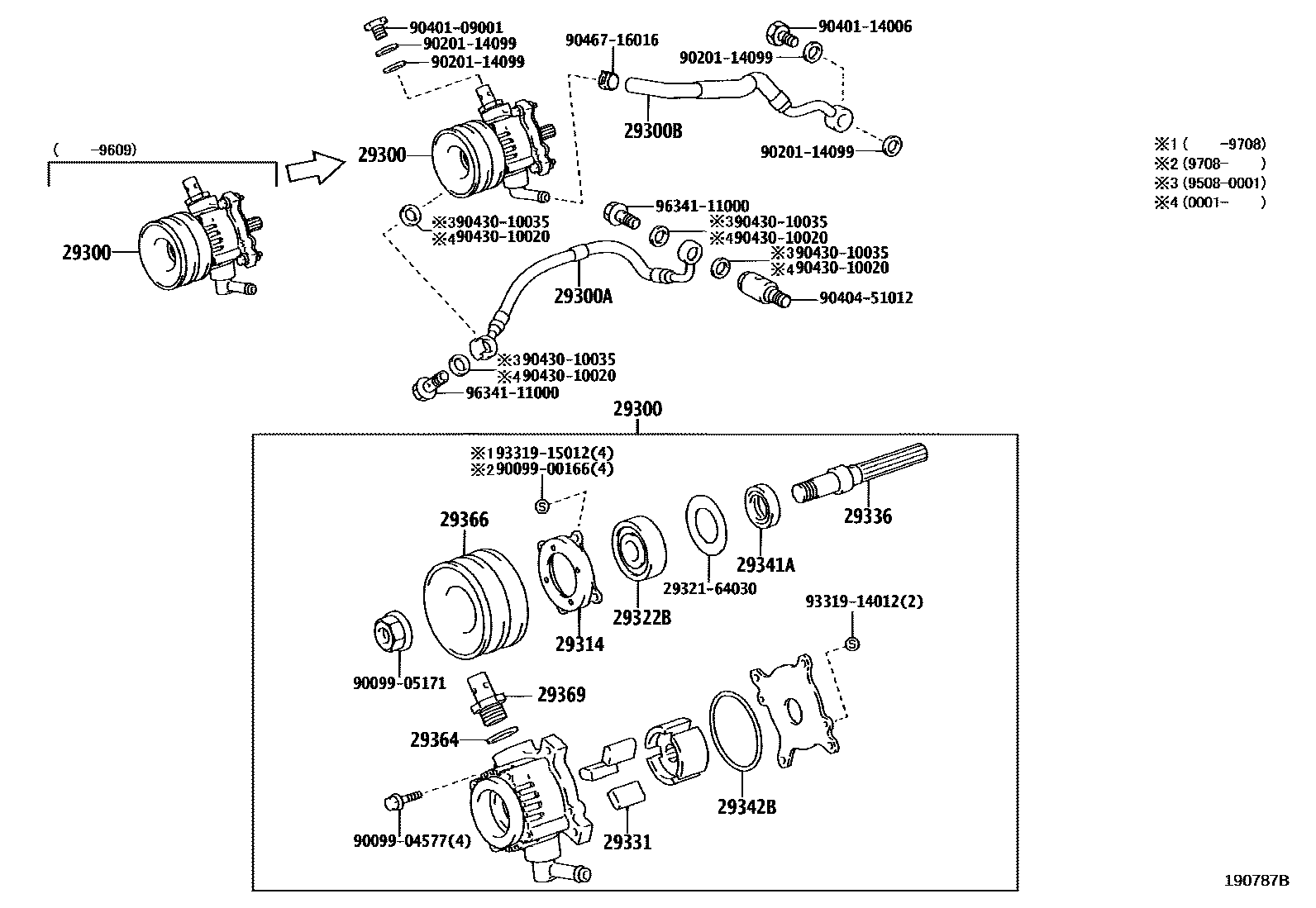

27 parts on this diagram · 2 diagrams in section
