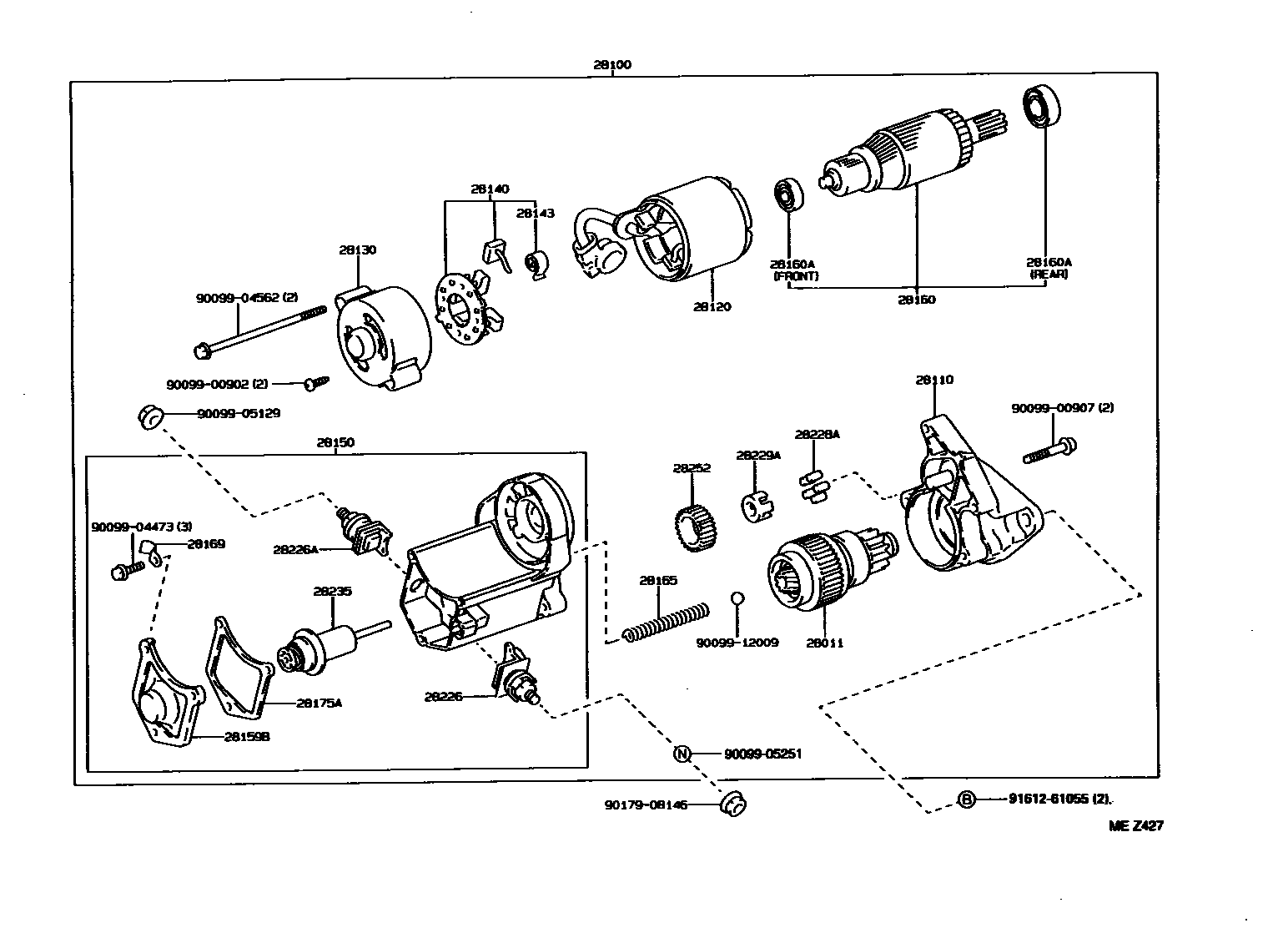

STARTER

0001 112V 1.0KW 0002 112V 2.0KW 0003 112V 2.7KW 0004 112V 1.2KW,12V 1.4KW 0005 112V 1.0KW 0006 112V 2.0KW 0007 112V 2.0KW 0008 112V 2.7KW 0009 112V 2.7KW

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i2RZE..RCH12,18,22,28..03S,06S,09S199508-199907

12V 1.0KW

main28011-30040i2KDFTV..KLH1#,2#200108-200608

12V 2.0KW

main28011-30050i2KDFTV..KLH1#,2#200608

12V 2.7KW

main28011-54010i2L#..LXH1#,2#199508-200108

12V 2.7KW

main28011-54380i2LT..LXH18,2#..MTM;2L#..LXH12,22..(03S,06S,09S)..MTM199508-200108

12V 2.0KW

main28011-67020i2KDFTV..KLH1#,2#200108-200608

12V 2.7KW

main28011-70020i2RZE..RCH12,22199907-200311

12V 1.0KW

main28011-76070i2RZE,3RZFE..RCH1#,2#..(DX,STD)..EUR199508-200605

12V 1.4KW

main28011-76070i3RZFE..RCH13,19,23,29..MTM..(DX,STD)199907-200605

12V 1.2KW,1.4KW

28100STARTER ASSY

main28100-30050i2KDFTV..KLH1#,2#200608-200905

12V 2.7KW,COLD SPEC

sub28100-30051

main28100-30051i2KDFTV..KLH1#,2#200906

12V 2.7KW,COLD SPEC

main28100-30060i2KDFTV..KLH1#,2#200108-200608

12V 2.0KW

main28100-54320i2L..LXH12..LHD..DX;2L..LXH12..LHD..5DV;2L..LXH12..4DV..STD;2LT..LXH1#..(03S,09S)..MTM199508-199903

12V 2.7KW

main28100-54320i2L..LXH12..LHD..DX;2L..LXH12..LHD..5DV;2L..LXH12..4DV..STD;2LT..LXH1#..(03S,09S)..MTM199508-199903

12V 2.7KW,COLD SPEC

main28100-54340i2LT..LXH18,2#..MTM;2L#..LXH12,22..(03S,06S,09S)..MTM199803-200108

12V 2.0KW

main28100-54380i2LT..LXH18,2#..MTM;2L#..LXH12,22..(03S,06S,09S)..MTM199508-199803

12V 2.0KW

main28100-54470i2LT..LXH18,2#..MTM;2L#..LXH12,22..(03S,06S,09S)..MTM199903-200108

12V 2.7KW

sub28100-54480

main28100-54470i2LT..LXH18,2#..MTM;2L#..LXH12,22..(03S,06S,09S)..MTM199903-200108

12V 2.7KW,COLD SPEC

sub28100-54480

main28100-67070i2KDFTV..KLH1#,2#200108-200608

12V 2.7KW

sub28100-30050

main28100-75070i2RZE..RCH12,18,22,28..03S,06S,09S199508-199907

12V 1.0KW

main28100-75090i2RZE..RCH1#..(03S,06S,09S)..EUR199508-199804

12V 1.4KW,COLD SPEC

sub28100-75091

main28100-75090i2RZE..RCH22,28;2RZE..RCH12..05S;3RZFE..RCH13..ATM199508-200108

12V 1.4KW

sub28100-75091

main28100-75130i3RZFE..RCH13,19,23,29..MTM199804-200605

12V 1.2KW

main28100-75150i2RZE..RCH12,22199907-200311

12V 1.0KW

sub28100-75151

28110HOUSING ASSY, STARTER DRIVE

main28110-54380i2L#..LXH1#,2#..MTM199508-200108

12V 2.0KW

main28110-67040i2KDFTV..KLH1#,2#200108-200608

12V 2.7KW

main28110-75070i2RZE..RCH12,18,22,28..03S,06S,09S199508-199907

12V 1.0KW

main28110-75090i3RZFE..RCH13,19,23,29..DX,STD199804-200605

12V 1.2KW,1.4KW

main28110-75090i2RZE..RCH1#,2#..EUR199508-199804

12V 1.4KW

main28110-75150i2RZE..RCH12,22199907-200311

12V 1.0KW

main28115-54011i2L#..LXH1#,2#199508-200108

12V 2.7KW

28120YOKE ASSY, STARTER

main28120-16180i3RZFE..RCH13,19,23,29..MTM199804-200605

12V 1.2KW

main28120-26071i2RZE..RCH12,18,22,28..03S,06S,09S199508-199907

12V 1.0KW

main28120-54380i2KDFTV..KLH1#,2#..MTM199508-200608

12V 2.0KW

main28120-56081i2L#..LXH1#,2#199508-200108

12V 2.7KW

main28120-66040i3RZFE..RCH13..ATM199508-200108

12V 1.4KW

main28120-67020i2KDFTV..KLH1#,2#200108-200608

12V 2.7KW

main28120-70050i2RZE..RCH12,22199907-200311

12V 1.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13080i2RZE..RCH12,22199907-200311

12V 1.0KW

main28130-15020i2RZE..RCH12,18,22,28..03S,06S,09S199508-199907

12V 1.0KW

main28130-54380i2LT..LXH18,2#..MTM;2L#..LXH12,22..(03S,06S,09S)..MTM199508-200108

12V 2.0KW

main28130-54430i2L#..LXH1#,2#199508-200108

12V 2.7KW

main28130-64170i3RZFE..RCH13..ATM199508-200108

12V 1.4KW

main28130-67020i2KDFTV..KLH1#,2#200108-200608

main28130-75130i3RZFE..RCH13,19,23,29..DX,STD199804-200605

12V 1.2KW

28140HOLDER ASSY, STARTER BRUSH

main28140-26070i2RZE..RCH12,18,22,28..03S,06S,09S199508-199907

12V 1.0KW

main28140-54380i2KDFTV..KLH1#,2#..MTM199508-200608

12V 2.0KW

main28140-70020i2RZE..RCH12,22199907-200311

12V 1.0KW

main28140-76060i3RZFE..RCH13..ATM199804-200605

12V 1.2KW

main28140-76070i3RZFE..RCH13..ATM199508-200108

12V 1.4KW

main28140-77090i2L#..LXH1#,2#199508-200608

12V 2.7KW

28143SPRING, STARTER BRUSH

main28143-54380i2LT..LXH18,2#..MTM;2L#..LXH12,22..(03S,06S,09S)..MTM199508-200108

12V 2.0KW

main28143-54380i2KDFTV..KLH1#,2#..MTM200108-200608

main28143-70020i2RZE..RCH12,22199907-200311

12V 1.0KW

main28143-76060i3RZFE..RCH13,19,23,29..DX,STD199804-200605

12V 1.2KW

main90099-17112i3RZFE..RCH13..ATM199804-200108

12V 1.4KW

main90099-17112i2RZE..RCH12,18,22,28199508-199907

28150SWITCH ASSY, MAGNET STARTER

main28150-30050i2KDFTV..KLH1#,2#200608

12V 2.7KW

main28150-30060i2KDFTV..KLH1#,2#200108-200608

12V 2.0KW

main28150-54320i2L#..LXH1#,2#199508-199903

12V 2.7KW

main28150-54340i2LT..LXH18,2#..MTM;2L#..LXH12,22..(03S,06S,09S)..MTM199803-200108

12V 2.0KW

main28150-54380i2LT..LXH18,2#..MTM;2L#..LXH12,22..(03S,06S,09S)..MTM199508-199803

12V 2.0KW

main28150-54430i2L#..LXH1#,2#199903-200108

12V 2.7KW

main28150-67070i2KDFTV..KLH1#,2#200108-200608

12V 2.7KW

main28150-75070i2RZE..RCH12,18,22,28..03S,06S,09S199508-199907

12V 1.0KW

main28150-75130i3RZFE..RCH13,19,23,29..MTM199508-200605

12V 1.4KW

main28150-75150i2RZE..RCH12,22199907-200311

12V 1.0KW

28159BCOVER, MAGNET SWITCH

main28159-10040i2RZE..RCH12,18,22,28..03S,06S,09S199508-199907

12V 1.0KW

main28159-17030i2KDFTV..KLH1#,2#200108-200608

12V 2.7KW

main28159-54380i2LT..LXH18,2#..MTM;2L#..LXH12,22..(03S,06S,09S)..MTM199508-200608

12V 2.0KW

main28159-55050i3RZFE..RCH13..ATM199508-200605

12V 1.4KW

main28159-56310i2L#..LXH1#,2#199508-200108

12V 2.7KW

28160ARMATURE ASSY, STARTER

main28160-26071i2RZE..RCH12,18,22,28..03S,06S,09S199508-199907

12V 1.0KW

main28160-54140i2KDFTV..KLH1#,2#199508-200608

12V 2.7KW

main28160-54380i2KDFTV..KLH1#,2#..MTM199508-200608

12V 2.0KW

main28160-70050i2RZE..RCH12,22199907-200311

12V 1.0KW

main28160-74070i3RZFE..RCH13..ATM199508-200108

12V 1.4KW

main28160-76060i3RZFE..RCH13,19,23,29..MTM199804-200605

12V 1.2KW

28160ABEARING, STARTER ARMATURE

main28253-45020i2RZE..RCH12,18,22,28..03S,06S,09S199508-199907

FRONT

main90099-10107i2KDFTV..KLH1#,2#..MTM200108-200608

COLD SPEC,FRONT

main90099-10107i2KDFTV..KLH12,22..ATM200108-200608

FRONT

main90099-10107i2L#..LXH1#,2#199508-200108

12V 2.7KW,FRONT

main90099-10113i2RZE..RCH12,18,22,28..03S,06S,09S199508-199907

REAR

main90099-10119i2KDFTV..KLH1#,2#..MTM200108-200608

COLD SPEC,REAR

main90099-10119i2KDFTV..KLH1#,2#..MTM200108-200608

REAR

main90099-10119i2L#..LXH1#,2#199508-200108

12V 2.7KW,REAR

main90099-10196i2RZE..RCH1#,2#..(03S,06S,09S)..EUR199508-199804

COLD SPEC,FRONT

main90099-10196i2RZE..RCH12..05S;3RZFE..RCH13,19,23,29..DX,STD199508-200605

FRONT

main90099-10197i3RZFE..RCH13,19,23,29..MTM199508-200608

REAR

main90099-10197i2LT..LXH18,2#..MTM;2L#..LXH12,22..(03S,06S,09S)..MTM199508-200108

12V 2.0KW,REAR

main90099-10197i2RZE..RCH1#,2#..(03S,06S,09S)..EUR199508-199804

COLD SPEC,REAR

main90099-10208i2L#..LXH1#,2#..MTM199508-200108

12V 2.0KW,FRONT

main90099-10208i2KDFTV..KLH1#,2#..MTM200108-200608

FRONT

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i2RZE..RCH12,18,22,28..03S,06S,09S199508-199907

12V 1.0KW

main28165-76070i2RZE..RCH2#;2RZE..RCH12..05S199508-199804

12V 1.4KW

main28165-76070i2LT..LXH1#,2#..(03S,06S,09S)..MTM;2L,3RZFE..LXH12,22,RCH13,19,23,29..DX,STD199508-200608

12V 2.0KW

main28165-77090i2L#..LXH1#,2#199508-200608

12V 2.7KW

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-10040i2RZE..RCH12,18,22,28..03S,06S,09S199508-199907

12V 1.0KW

main28169-54380i2LT..LXH18,2#..MTM;2L#..LXH12,22..(03S,06S,09S)..MTM199508-200108

12V 1.2KW

main28169-55050i3RZFE..RCH13,19,23,29..DX,STD199804-200605

12V 1.2KW,1.4KW

main28169-55050i2RZE..RCH1#,2#..EUR199508-199804

12V 1.4KW

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i2RZE..RCH12,18,22,28..03S,06S,09S199508-199907

12V 1.0KW

main28175-54380i2L#..LXH1#,2#..MTM199508-200608

12V 2.0KW

main28175-55050i3RZFE..RCH13,19,23,29..MTM199508-200605

12V 1.4KW

main28175-56310i2L#..LXH1#,2#199508-200608

12V 2.7KW

28226STARTER KIT, BATTERY TERMINAL

main28226-17030i2L#..LXH1#,2#200101-200108

12V 2.7KW

sub28226-54320

main28226-22050i3RZFE..RCH13,19,23,29..MTM199907-200605

12V 1.2KW

main28226-54320i2L#..LXH1#,2#199508-200608

12V 2.7KW

main28226-54340i2LT..LXH18,2#..MTM;2L#..LXH12,22..(03S,06S,09S)..MTM199803-200108

12V 2.0KW

main28226-54380i2LT..LXH18,2#..MTM;2L#..LXH12,22..(03S,06S,09S)..MTM199508-199803

12V 2.0KW

sub28226-54340

main28226-64200i3RZFE..RCH13..ATM199508-200108

12V 1.4KW

sub28226-22050

main28226-64380i2KDFTV..KLH1#,2#..MTM200108-200608

12V 2.0KW

main28226-70040i2RZE..RCH12,18,22,28..03S,06S,09S199508-199907

12V 1.0KW

28226ASTARTER KIT, MOTOR TERMINAL

main28226-54220i2L#..LXH1#,2#199508-200608

12V 2.7KW

main28226-72010i2LT..LXH18,2#..MTM;2L#..LXH12,22..(03S,06S,09S)..MTM199508-200608

12V 2.0KW

main28226-72010i2LT..LXH18,2#..MTM;2L#..LXH12,22..(03S,06S,09S)..MTM199508-199907

12V 1.0KW

main28226-74070i3RZFE..RCH13..ATM199508-200605

12V 1.4KW

28228AROLLER, STARTER CLUTCH

main28228-26040i2LT..LXH18,2#..MTM;2L#..LXH12,22..MTM..(DX,STD)199508-200608

12V 2.0KW

main28228-26040i2LT..LXH18,2#..MTM;2L#..LXH12,22..MTM..(DX,STD)199508-200605

12V 1.2KW,1.4KW,2.0KW

main28228-56080i2L#..LXH1#,2#199508-200608

12V 2.7KW

28229ARETAINER, STARTER IDLE GEAR

main28229-26040i2RZE..RCH12,18,22,28..03S,06S,09S199508-199907

12V 1.0KW

main28229-56080i2L#..LXH1#,2#199508-200608

12V 2.7KW

main28229-74070i2RZE..RCH1#,2#..EUR199508-199804

12V 1.4KW

main28229-74070i2LT..LXH18,2#..MTM;2L#..LXH12,22..(03S,06S,09S)..MTM199508-200608

12V 2.0KW

main28229-74070i3RZFE..RCH13,19,23,29..DX,STD199804-200605

12V 1.2KW,1.4KW,2.0KW

28235PLUNGER, MAGNET SWITCH

main28235-17030i2L#..LXH1#,2#199508-200608

12V 2.7KW

main28235-35080i2RZE..RCH12,18,22,28..03S,06S,09S199508-199907

12V 1.0KW

main28235-54380i2KDFTV..KLH1#,2#..MTM199508-200608

12V 2.0KW

main28235-55050i3RZFE..RCH13..ATM199804-200605

12V 1.2KW,1.4KW

main28235-55050i2RZE..RCH1#,2#..EUR199508-199804

12V 1.4KW

28252GEAR, STARTER IDLE

main28254-45020i2RZE..RCH12,18,22,28..03S,06S,09S199508-199907

12V 1.0KW

main28254-64130i2L#..LXH1#,2#..MTM199508-200608

12V 2.0KW

main28254-74070i3RZFE..RCH13,19,23,29..DX,STD199804-200605

12V 1.2KW,1.4KW

main28254-74070i2RZE..RCH1#,2#..EUR199508-199804

12V 1.4KW

main28254-77090i2LT..LXH18,28199508-200608

12V 2.7KW

9009900902

main90099-00902

9009900907

main90099-00907

9009904473

main90099-04473

9009904562

main90099-04562

9009905129

main90099-05129

9009905251

main90099-05251

9009912009

main90099-12009

9017908146

main90179-08146

9161261055

main91612-61055

29 parts on this diagram · 9 diagrams in section
