Toyota 713210 — AIR CLEANER

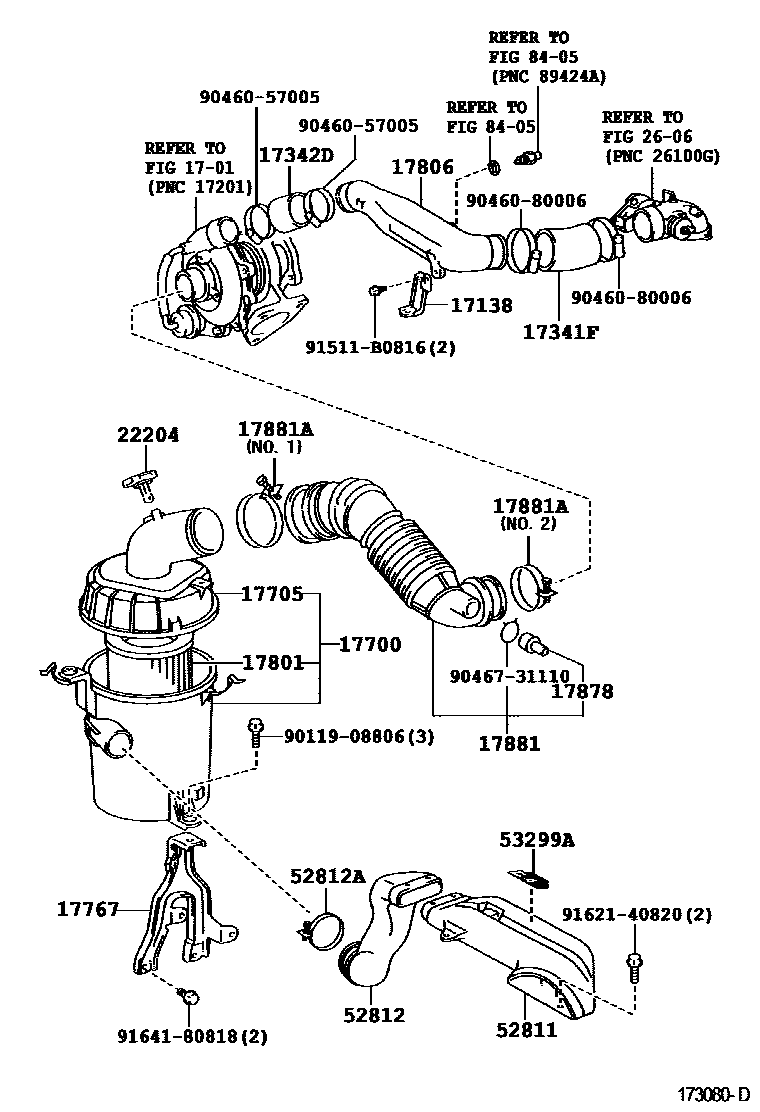

Parts diagram

1701MANIFOLD

→ Go to FIG 17-01

17138STAY, INTAKE PIPE OR HOSE

17341FHOSE, AIR, NO.1

17342DHOSE, AIR, NO.2

17700CLEANER ASSY, AIR

17705CAP SUB-ASSY, AIR CLEANER

17767BRACKET, AIR CLEANER

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

17806PIPE SUB-ASSY, AIR CLEANER, NO.2

17878PIPE, INTAKE AIR CONNECTOR, NO.3

17881HOSE, AIR CLEANER, NO.1

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

22204METER SUB-ASSY, INTAKE AIR FLOW

2606VENTURI

→ Go to FIG 26-06

52811DUCT, COOL AIR INTAKE, NO.1

52812DUCT, COOL AIR INTAKE, NO.2

52812ACLAMP, HOSE(FOR COOL AIR INTAKE)

53299APLATE, COOL AIR INTAKE DUCT

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

9011908806

9046057005

9046080006

9046731110

91511B0816

9162140820

9164180818

26 parts on this diagram · 8 diagrams in section

AIR CLEANER for Toyota 713210

This section contains 83 genuine Toyota parts for the AIR CLEANER system of the Toyota 713210. Key components include: VENTILATION HOSE, MANIFOLD, VACUUM PIPING, GASKET, INTAKE FLANGE, STAY, INTAKE PIPE OR HOSE.
