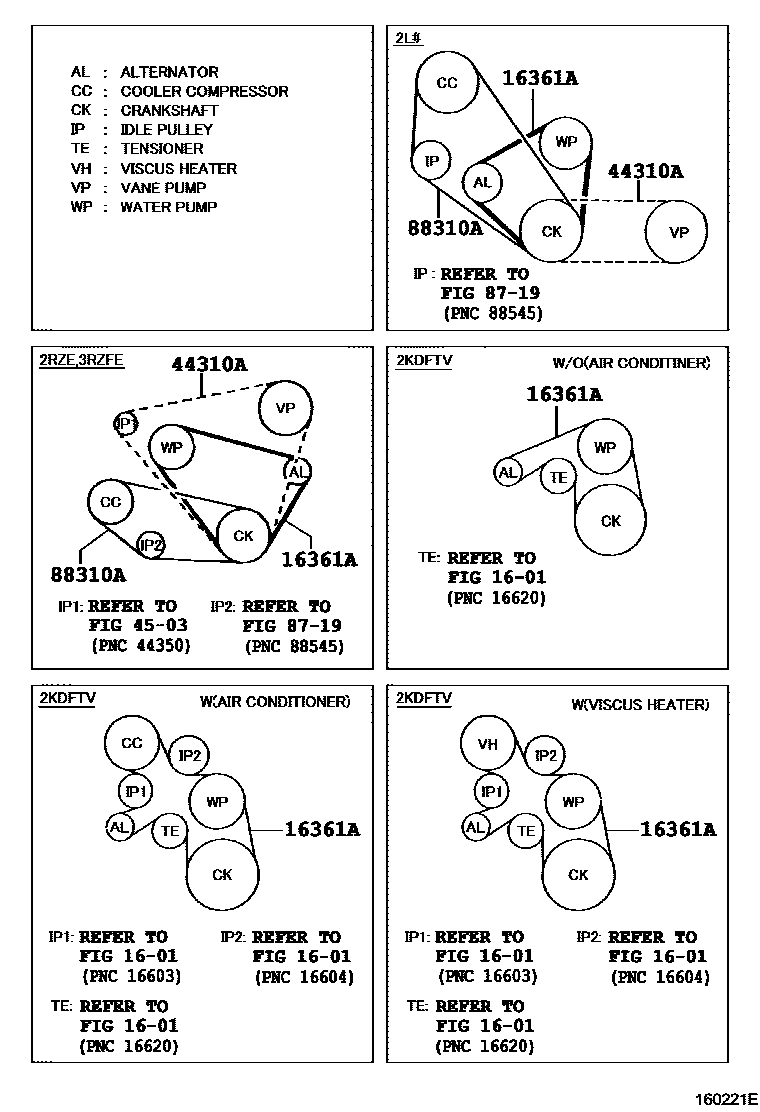

V-BELT

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-92016i2L#..LXH1#,2#199907-200108

(L),MITSUBOSHI

main90080-92017i2L#..LXH1#,2#200009-200108

(L),BANDO

main90916-02209i2L#..LXH12199508-199604

main90916-02211i2L#..LXH1#,2#199604-199907

L=1035

main90916-02336i2RZE..RCH12,22199907-200311

main90916-02512i2KDFTV..KLH1#,2#200608

main90916-02513i2KDFTV..KLH1#,2#200608

W(AIR CONDITIONER)

main90916-02523i2KDFTV..KLH1#,2#200108-200608

W/O(AIR CONDITIONER)

main90916-02524i2KDFTV..KLH1#,2#200108-200608

W(AIR CONDITIONER)

44310ABELT, V(FOR VANE PUMP)

main99332-01120iRCH12,18,22,28199508-199907

L=1120

main99364-20770iLXH1#,2#199508-199907

L=770

main99364-21110iRCH13,19,2#199804-199907

L=1110

main99364-30770iLXH1#,2#199907-200108

L=770

main99364-31110iRCH13..ATM199907-200108

L=1110

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02354iRCH12..LHD;RCH12..ARL;RCH18,22..STD199703-199907

L=860

main90916-02465iLXH1#,2#..LHD199907-200108

L=1230

main99332-11230iLXH1#,2#..LHD199508-199907

L=1230

main99364-20940iRCH13,19,2#..LHD199804-199907

L=940

main99364-30860iRCH12,22199907-200311

L=860

main99364-30940iRCH13..ATM199907-200108

L=940
