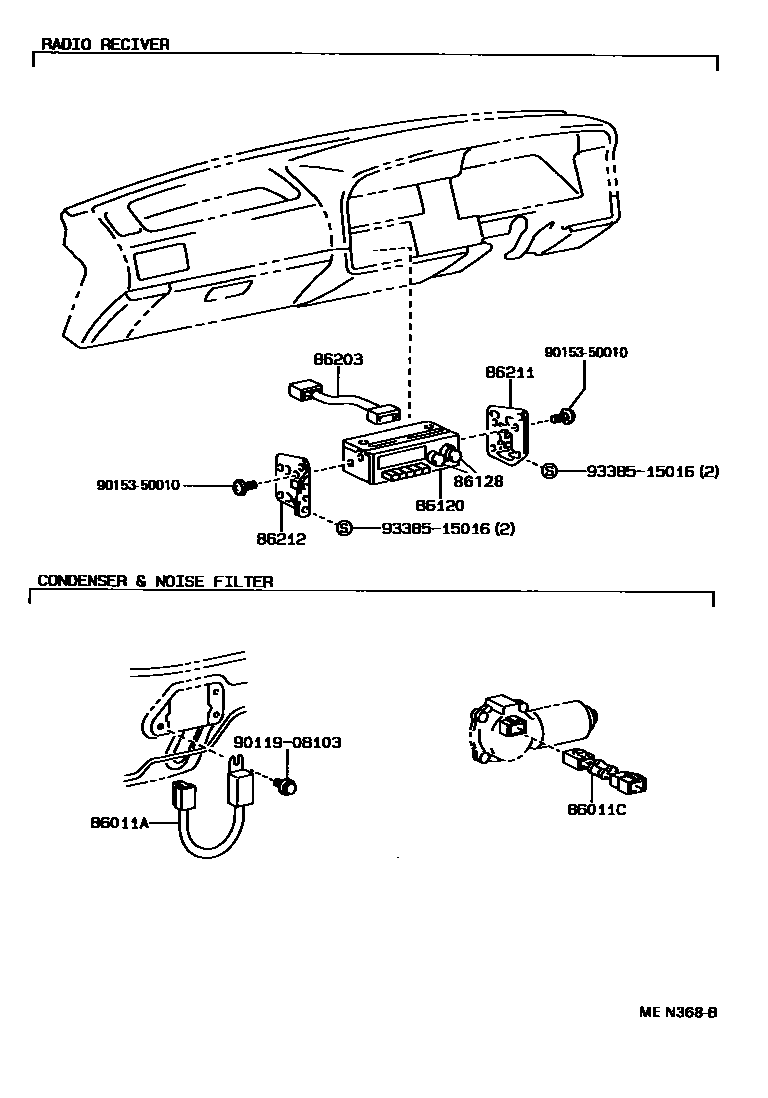

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04040iRZH103,109,113,115,119198908-199508

86011CFILTER, NOISE

main90980-05049iLH10#,11#,RZH10#,11#198908-199308

86120RECEIVER ASSY, RADIO

main86120-16530iLH112;LH10#,118,RZH10#,11#..LHD198908-199205

MATSUSHITA,ID=5010,AM 5 BUTTONE

main86120-22391iLH10#,11#,RZH10#,11#..LHD198908-199205

FUJITSU TEN,LW/AM/FM 5 BUTTON

main86120-32111iLH102,RZH112..RHD; LH112;LH10#,118,RZH10#,11#..LHD199205-199308

FUJITSU TEN,LW/MW/UKW MPX ETR

main86120-32241iLH10#,11#,RZH10#,11#198908-199205

FUJITSU TEN,LW/AM/FM ETR

main86120-35080iRZH102;LH10#,11#,RZH103,109,11#..STD..EUR199308-199508

MATSUSHITA,ID=52100,AM ETR 5 BUTTON

86128KNOB, RADIO RECEIVER

main86128-17450iRZH102;LH10#,11#,RZH103,109,11#..STD..EUR199308-199508

PWR(86120-35080)

main86128-17470iRZH102;LH10#,11#,RZH103,109,11#..STD..EUR199308-199508

TONE(86120-35080)

main86128-32060iLH102,112,RZH103,113..FRG,SDN;LH102,11#,RZH103,109,11#..(DX,GL)..EUR; RZH102;LH10#,11#,RZH103,109,11#..STD..EUR199308-199508

PWR(86120-32111)

main86128-32080iLH102,112,RZH103,113..FRG,SDN;LH102,11#,RZH103,109,11#..(DX,GL)..EUR; RZH102;LH10#,11#,RZH103,109,11#..STD..EUR199308-199508

TONE(86120-32111)

86203WIRE, RADIO

main86203-16100iLH10#,11#,RZH10#,11#..LHD198908-199205

86211BRACKET, RADIO, NO.1

main86211-95J11iLH102,112,RZH112,113..RHD198908-199508

main86211-95J12iLH10#,11#,RZH10#,11#..LHD198908-199508

86212BRACKET, RADIO, NO.2

main86212-95J04iLH10#,11#,RZH10#,11#..LHD198908-199508

main86212-95J09iLH102,112,RZH112,113..RHD198908-199508

9011908103

main90119-08103

9015350010

main90153-50010

9338515016

main93385-15016

10 parts on this diagram · 2 diagrams in section
