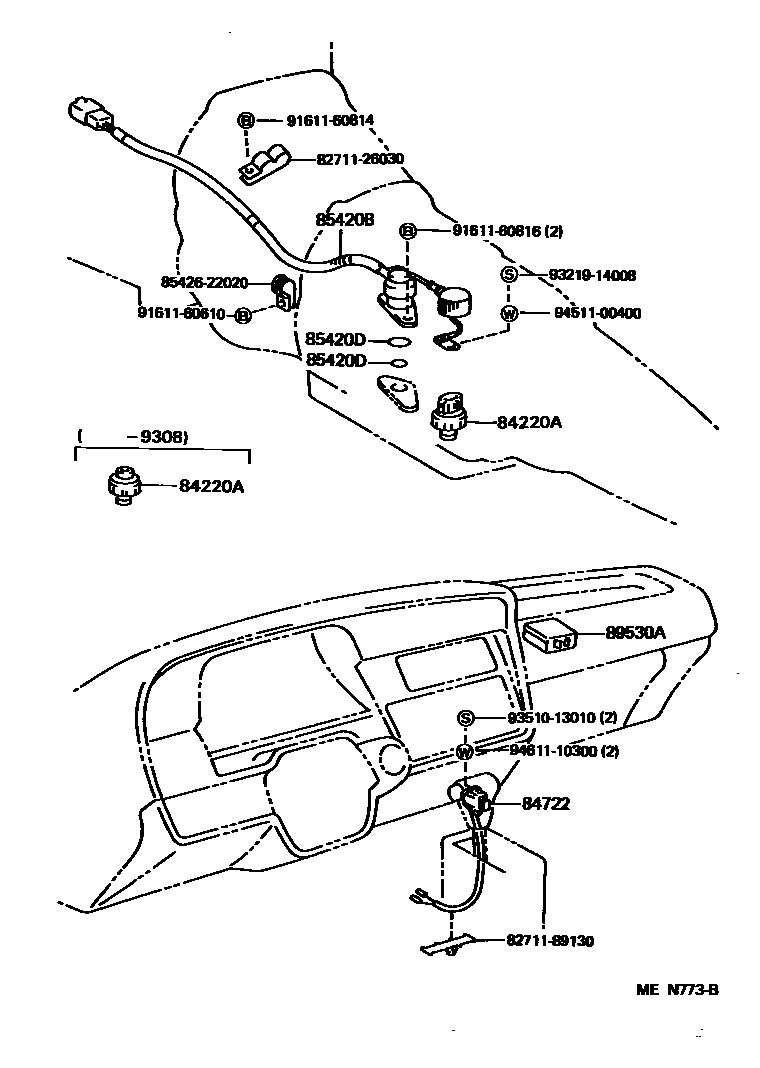

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

84220ASWITCH ASSY, TRANSMISSION POSITION INDICATOR

main83531-12010iLH112,RZH113..4FC199308-199508

main84220-30050iLH112,RZH112,113..4FC198908-199308

84722SWITCH, TRANSMISSION CONTROL

main84722-10010-03iLH112,RZH112,113..4FC198908-199002

GRAY,TRIM1#

main84722-26070-03iLH112,RZH112,113..4FC199002-199308

GRAY,TRIM1#

main84722-26090-B0iLH112,RZH113..4FC199308-199508

BLUISH GRAY,TRIM1#

85420BSOLENOID ASSY, TRANSMISSION

main85420-26020iLH112,RZH112,113..4FC198908-199308

main85420-30160iLH112,RZH113..4FC199308-199508

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-11001iLH112,RZH112,113..4FC198908-199508

ID=10

main90301-23001iLH112,RZH112,113..4FC198908-199508

ID=23

89530ACOMPUTER ASSY, TRANSMISSION CONTROL

main89530-26070iRZH112,113..4FC198908-199308

main89530-26090iLH112..4FC198908-199308

main89530-26100iLH112..4FC199308-199508

main89530-26110iRZH113..4FC199308-199508

8271126030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-26030

8271189130WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-89130

8542622020CLAMP, OVER DRIVE SOLENOID

main85426-22020

9161160610

main91611-60610

9161160814

main91611-60814

9161160816

main91611-60816

9321914008

main93219-14008

9351013010

main93510-13010

9451100400

main94511-00400

9461110300

main94611-10300

15 parts on this diagram · 1 diagram in section
