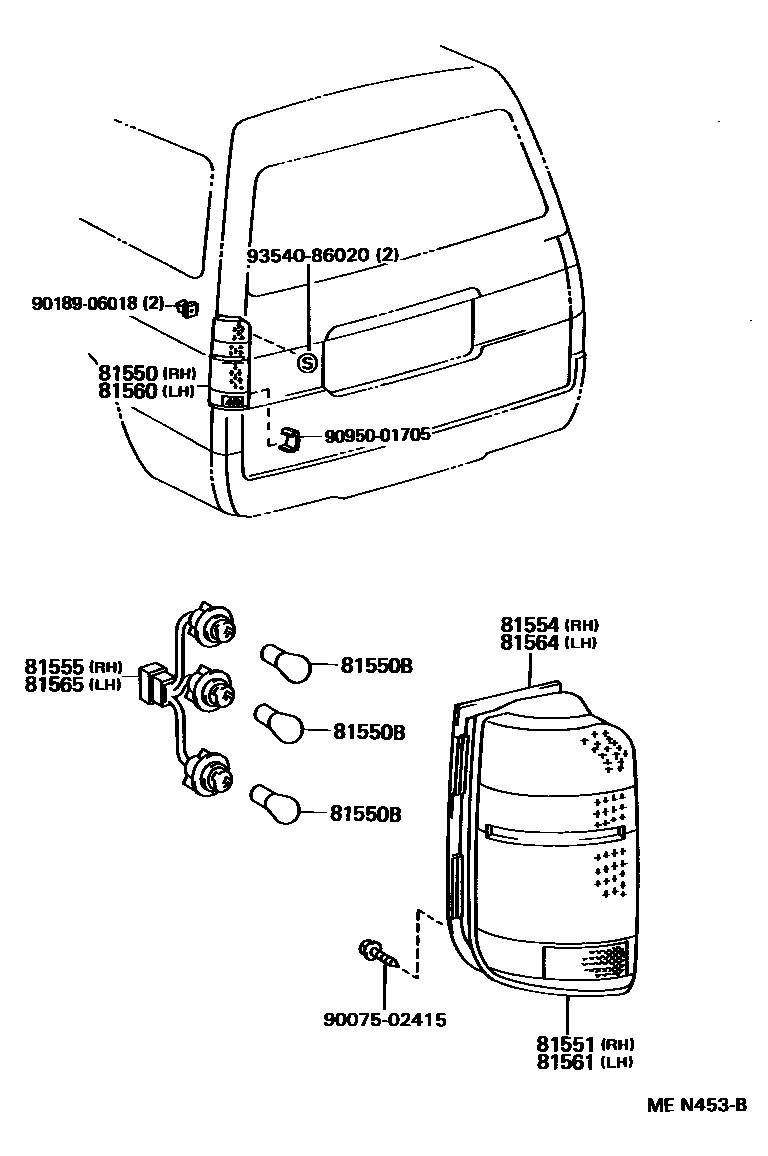

Toyota HIACE VAN,COMMUTER — REAR COMBINATION LAMP
81550LAMP ASSY, REAR COMBINATION, RH
81550BBULB(FOR REAR COMBINATION LAMP)
81554GASKET, REAR COMBINATION LAMP BODY, RH
81564GASKET, REAR COMBINATION LAMP BODY, LH
9007502415
9018906018
9095001705
9354086020
13 parts on this diagram · 1 diagram in section
REAR COMBINATION LAMP for Toyota HIACE VAN,COMMUTER
This section contains 13 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota HIACE VAN,COMMUTER. Key components include: LAMP ASSY, REAR COMBINATION, RH, BULB(FOR REAR COMBINATION LAMP), LENS, REAR COMBINATION LAMP, RH, GASKET, REAR COMBINATION LAMP BODY, RH, SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH.
