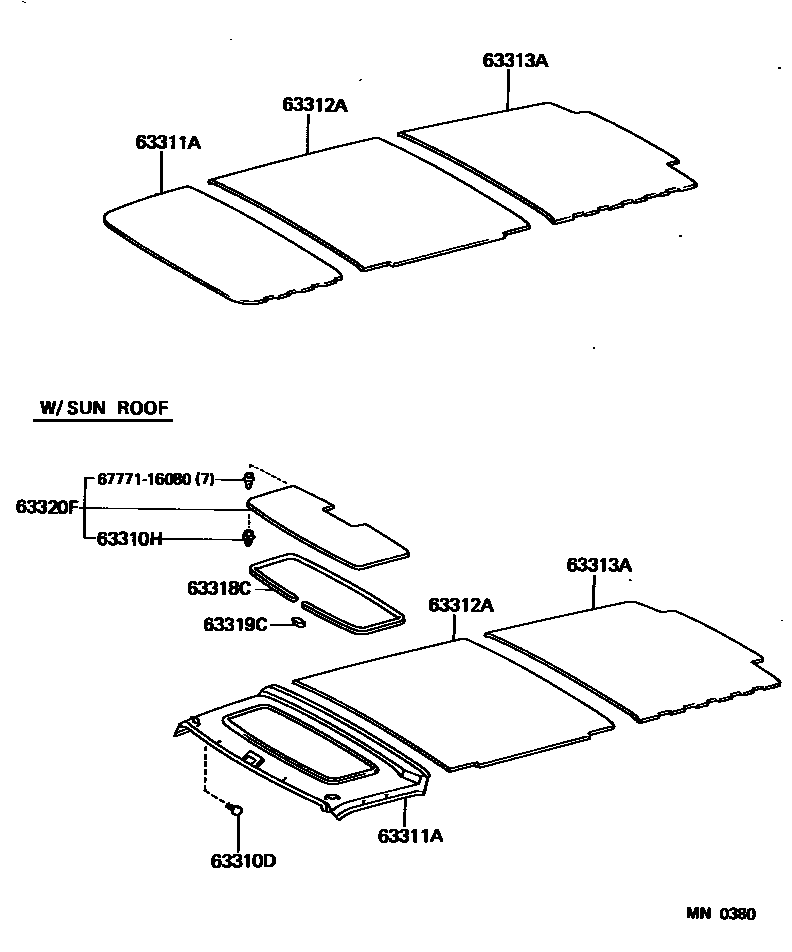

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1

63310HEADLINING ASSY, ROOF

main63310-95J16-03iRZH102..DX198908-199105

NORWAY SPEC & W(MOON ROOF),LIGHT GRAY,TRIM1#

main63310-95J16-13iLH102,RZH103..GL199308-199508

W(*MR),LI. GRAY,TRIM1#

main63310-95J17-03iRZH103..DX199105-199108

NORWAY SPEC,LIGHT GRAY,TRIM1#

main63310-95J17-13iLH102,RZH103..GL199308-199508

LI. GRAY,TRIM1#

63310DCLIP, ROOF HEADLINING

main90467-05021-18×2iLH10#,11#,RZH10#,11#198908-199308

IVORY,TRIM1#

main90467-05021-B0×2iLH10#,11#,RZH103,109,11#..DX,STD199308-199508

BLUISH GRAY,TRIM1#

main90467-05021-B8×2iLH10#,11#,RZH103,109,11#..DX,STD199308-199508

LI. GRAY,TRIM1#

63310HCLIP(FOR ROOF HEADLINING)

main90467-08047×5iLH10#,11#,RZH10#,11#198908-199308

63311AHEADLINING, ROOF NO.1

main63311-95J24-08iLH10#,11#,RZH10#,11#198908-199308

W(SUN ROOF),IVORY,TRIM1#

main63311-95J24-B1iLH10#,11#,RZH103,109,11#..DX,STD199308-199508

W(SUN ROOF),LI. GRAY,TRIM1#

main63311-95J25-08iLH10#,11#,RZH10#,11#198908-199308

IVORY,TRIM1#

main63311-95J25-B1iLH10#,11#,RZH10#,11#..DX,STD199308-199508

LI. GRAY,TRIM1#

63312AHEADLINING, ROOF, NO.2

main63312-95J08-08iLH10#,11#,RZH10#,11#198908-199308

IVORY,TRIM1#

main63312-95J08-B1iLH10#,11#,RZH10#,11#..DX,STD199308-199508

LI. GRAY,TRIM1#

63313AHEADLINING, ROOF, NO.3

main63313-95J23-08iLH10#,RZH10#198908-199308

IVORY,TRIM1#

main63313-95J23-B1iLH10#,RZH10#..DX,STD199308-199508

LI. GRAY,TRIM1#

main63313-95J25-08iLH11#,RZH11#198908-199308

IVORY,TRIM1#

main63313-95J25-B1iLH11#,RZH11#199308-199508

LI. GRAY,TRIM1#

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-95J10-03iRZH102..DX198908-199105

NORWAY SPEC & W(MOON ROOF) OR W(SUN ROOF),LIGHT GRAY,TRIM1#

main63318-95J10-08iRZH103..DX; RZH103..STD;LH10#,11#,RZH102,109,11#199105-199108

IVORY,TRIM1#; NORWAY SPEC & W(MOON ROOF) OR W(SUN ROOF),IVORY,TRIM1#

main63318-95J10-B8iLH10#,11#,RZH103,109,11#199308-199508

LI. GRAY,TRIM1#

63319CJOINT, SUN ROOF OPENING TRIM

main63319-87004-08iRZH102..DX; RZH102..STD;LH10#,11#,RZH103,109,11#198908-199105

IVORY,TRIM1#; NORWAY SPEC & W(MOON ROOF) OR W(SUN ROOF),IVORY,TRIM1#

main63319-87004-23iLH102,RZH103..DX199108-199308

NORWAY SPEC & W(MOON ROOF) OR W(SUN ROOF),LIGHT GRAY,TRIM1#

main63319-87004-B8iLH10#,11#,RZH103,109,11#199308-199508

LI. GRAY,TRIM1#

63320FHEADLINING ASSY, SUN ROOF

main63320-95J03-08iLH10#,11#,RZH10#,11#198908-199308

IVORY,TRIM1#

main63320-95J03-B0iLH10#,11#,RZH103,109,11#..DX,STD199308-199508

LI. GRAY,TRIM1#

6777116080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16080

10 parts on this diagram · 3 diagrams in section
