E
EPC Data

INSIDE TRIM BOARD

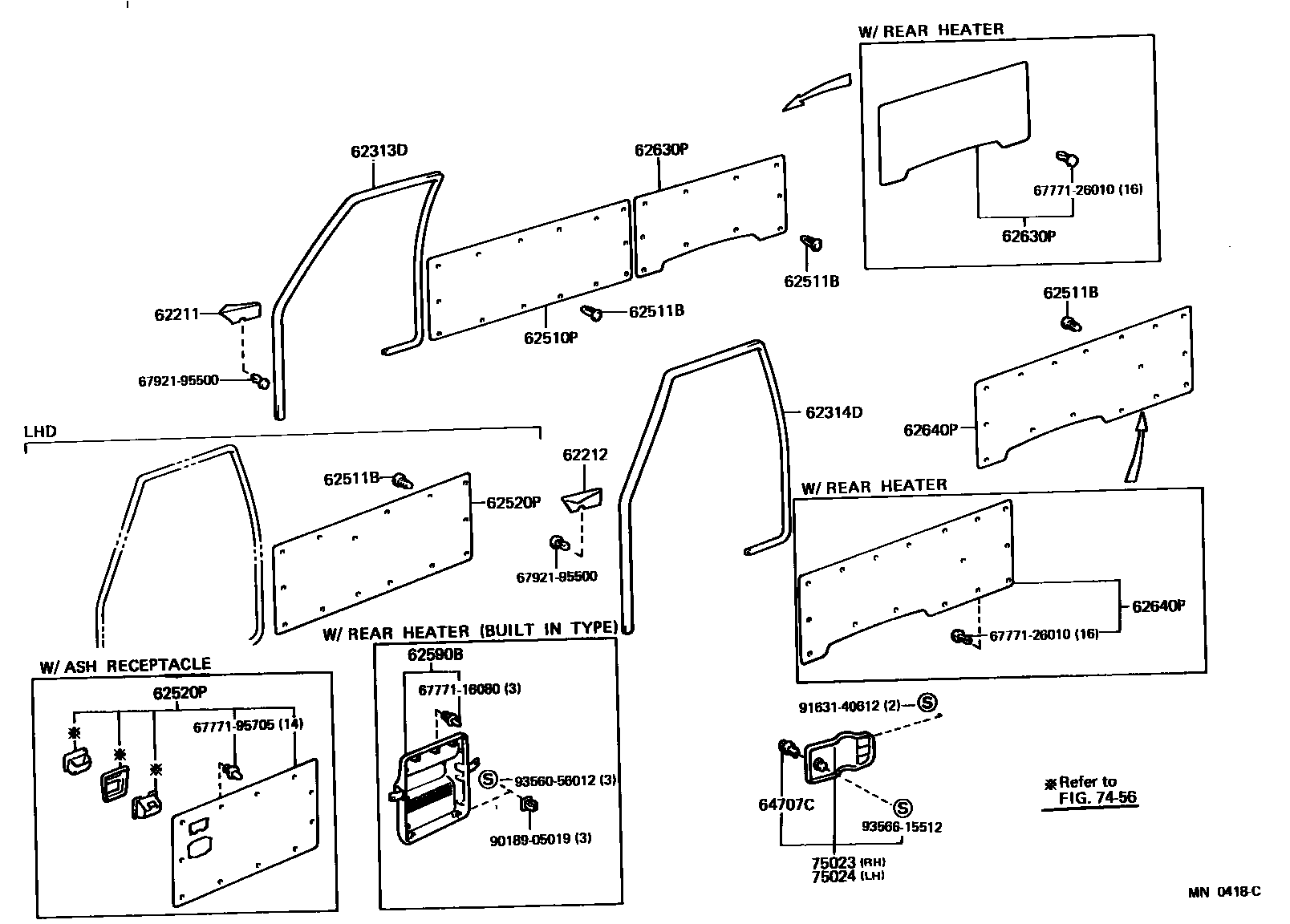

Parts diagram
62211GARNISH, FRONT PILLAR, RH
main62211-95J07-03i198908-199308
GRAY,TRIM1#
sub62211-95J07
main62211-95J07-B1i199308-199508
BLUISH GRAY,TRIM1#
sub62211-95J07
62212GARNISH, FRONT PILLAR, LH
main62212-95J07-03i198908-199308
GRAY,TRIM1#
sub62212-95J07
main62212-95J07-B1i199308-199508
BLUISH GRAY,TRIM1#
sub62212-95J07
62313DTRIM, FRONT DOOR OPENING, RH
main62313-95J01-03i198908-199308
GRAY,TRIM1#
sub62313-95J01
sub62313-95J00
main62313-95J01-B0i199308-199508
BLUISH GRAY,TRIM1#
sub62313-95J01
sub62313-95J00
62314DTRIM, FRONT DOOR OPENING, LH
main62313-95J01-03i198908-199308
GRAY,TRIM1#
sub62313-95J01
sub62313-95J00
main62313-95J01-B0i199308-199508
BLUISH GRAY,TRIM1#
sub62313-95J01
sub62313-95J00
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
main62511-95J21i198908-199508
sub62511-25010
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
main90467-10034-16i198908-199108
W/O(REAR SEAT),BROWN,TRIM1#
sub90467-10034
main90467-10034-16i198908-199308
BROWN,TRIM1#
sub90467-10034
main90467-10034-16i198908-199108
NORWAY SPEC & W(BUILT IN TYPE REAR HEATER) OR W(FOLDING REAR SEAT),BROWN,TRIM1#
sub90467-10034
main90467-10034-16i199108-199308
W(BUILT IN TYPE REAR HEATER),BROWN,TRIM1#
sub90467-10034
main90467-10034-16i199108-199308
NORWAY SPEC & W(BUILT IN TYPE REAR HEATER),BROWN,TRIM1#
sub90467-10034
main90467-10034-B0i199308-199508
BLUISH GRAY
sub90467-10034
main90467-10034-B0i199308-199508
W(BUILT IN TYPE REAR HEATER),BLUISH GRAY
sub90467-10034
main90467-10034-B0i199308-199508
W(*DSBD),BLUISH GRAY
sub90467-10034
main90467-10034-N8i199308-199508
CREAM YELLOW,TRIM1#
sub90467-10034
main90467-10034-N8i199308-199508
W(BUILT IN TYPE REAR HEATER),CREAM YELLOW,TRIM1#
sub90467-10034
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
main62512-95J07i198908-199308
W/O(REAR SEAT)
main62512-95J07i198908-199508
main62520-26010i199011-199108
W/O(REAR SEAT) & W(BUILT IN TYPE REAR HEATER)
main62520-26010i199308-199508
main62520-26010i199108-199308
W/O(REAR SEAT)
main62520-95J08i199108-199308
W(BUILT IN TYPE REAR HEATER)
main62520-95J08-03i198908-199308
W(BUILT IN TYPE REAR HEATER),GRAY,TRIM1#
sub62520-95J08
main62520-95J08-B0i199308-199508
W(BUILT IN TYPE REAR HEATER),BLUISH GRAY,TRIM1#
sub62520-95J08
main62520-95J08-B0i199308-199508
BLUISH GRAY,TRIM1#
sub62520-95J08
main62520-95J09-03i198908-199308
GRAY,TRIM1#
main62520-95J10-03i198908-199308
NORWAY SPEC,GRAY,TRIM1#
sub62520-95J10
main62520-95J10-B1i199308-199408
BLUISH GRAY,TRIM1#
sub62520-95J10
main62520-95J10-B2i199408-199508
BLUISH GRAY,TRIM1#
sub62520-95J10
main62520-95J11-03i198908-199308
W(BUILT IN TYPE REAR HEATER),GRAY,TRIM1#
sub62520-95J11
main62520-95J11-B0i199308-199508
W(BUILT IN TYPE REAR HEATER),BLUISH GRAY,TRIM1#
sub62520-95J11
main62520-95J12-03i198908-199205
W(FLOOR SET TYPE REAR HEATER),GRAY,TRIM1#
sub62520-95J12
main62520-95J13-03i198908-199308
GRAY,TRIM1#
sub62520-95J13
main62520-95J13-B0i199308-199508
BLUISH GRAY,TRIM1#
sub62520-95J13
62590BBOARD ASSY, SIDE HEATER COVER, LH
main62590-95J01-03i198908-199308
NORWAY SPEC OR W(BUILT IN TYPE REAR HEATER),GRAY,TRIM1#
sub62590-95J01
main62590-95J01-03i198908-199308
GRAY,TRIM1#
sub62590-95J01
main62590-95J01-B0i199308-199508
BLUISH GRAY,TRIM1#
sub62590-95J01
62630PPANEL ASSY, QUARTER TRIM, REAR RH
main62630-26040i199108-199308
W/O(REAR SEAT)
main62630-26040i199011-199108
W/O(REAR SEAT) & W(BUILT IN TYPE REAR HEATER)
main62630-26040i199308-199508
main62630-95J35-03i198908-199308
W(FOLDING REAR SEAT OR BUILT IN TYPE REAR HEATER),GRAY,TRIM1#
sub62630-95J35
main62630-95J35-03i199108-199308
W(BUILT IN TYPE REAR HEATER),GRAY,TRIM1#
sub62630-95J35
main62630-95J35-03i198908-199205
GRAY,TRIM1#
sub62630-95J35
main62630-95J35-B0i199308-199508
BLUISH GRAY,TRIM1#
sub62630-95J35
main62630-95J35-B0i199308-199508
W(BUILT IN TYPE REAR HEATER),BLUISH GRAY,TRIM1#
sub62630-95J35
main62630-95J46-03i198908-199308
GRAY,TRIM1#
sub62630-95J46
main62630-95J46-03i199105-199308
W(BACK DOOR DAMPER & BUILT IN TYPE REAR HEATER),GRAY,TRIM1#
sub62630-95J46
main62630-95J46-B1i199308-199508
BLUISH GRAY,TRIM1#
sub62630-95J46
main62630-95J51-03i198908-199308
NORWAY SPEC,GRAY,TRIM1#
sub62630-95J51
main62630-95J51-B1i199308-199408
BLUISH GRAY,TRIM1#
sub62630-95J51
main62630-95J51-B2i199408-199508
BLUISH GRAY,TRIM1#
sub62630-95J51
main62630-95J52-03i198908-199308
GRAY,TRIM1#
sub62630-95J52
main62630-95J52-03i198908-199205
W(BACK DOOR DAMPER & BUILT IN TYPE REAR HEATER),GRAY,TRIM1#
sub62630-95J52
main62630-95J52-B0i199308-199508
BLUISH GRAY,TRIM1#
sub62630-95J52
main62630-95J56-03i198908-199205
W/O(REAR SEAT BELT),GRAY,TRIM1#
main62630-95J56-03i198908-199205
W(BUILT IN TYPE REAR HEATER) & W/O(REAR SEAT BELT),GRAY,TRIM1#
main62631-95J28i199108-199308
NORWAY SPEC & W(BUILT IN TYPE REAR HEATER)
main62631-95J28i198908-199308
W(FOLDING REAR SEAT) OR W/O(REAR SEAT)
main62631-95J28i198908-199508
main62631-95J28i198908-199108
NORWAY SPEC & W(BUILT IN TYPE REAR HEATER) OR W(FOLDING REAR SEAT) OR W/O(REAR SEAT)
main62631-95J34i198908-199508
62640PPANEL ASSY, QUARTER TRIM, REAR LH
main62632-95J33i198908-199508
main62632-95J35i198908-199308
W(FOLDING REAR SEAT) OR W/O(REAR SEAT)
main62632-95J35i198908-199108
NORWAY SPEC & W(BUILT IN TYPE REAR HEATER) OR W(FOLDING REAR SEAT) OR W/O(REAR SEAT)
main62632-95J35i198908-199508
main62632-95J35i199108-199308
NORWAY SPEC & W(BUILT IN TYPE REAR HEATER)
main62640-26040i199011-199108
W/O(REAR SEAT) & W(BUILT IN TYPE REAR HEATER)
main62640-26040i199308-199508
main62640-26040i199108-199308
W/O(REAR SEAT)
main62640-95J49-03i199108-199308
W(BUILT IN TYPE REAR HEATER),GRAY,TRIM1#
sub62640-95J49
main62640-95J49-03i198908-199205
GRAY,TRIM1#
sub62640-95J49
main62640-95J49-03i198908-199308
W(FOLDING REAR SEAT OR BUILT IN TYPE REAR HEATER),GRAY,TRIM1#
sub62640-95J49
main62640-95J49-B0i199308-199508
W(BUILT IN TYPE REAR HEATER),BLUISH GRAY,TRIM1#
sub62640-95J49
main62640-95J49-B0i199308-199508
BLUISH GRAY,TRIM1#
sub62640-95J49
main62640-95J52-03i199105-199308
W(BACK DOOR DAMPER & BUILT IN TYPE REAR HEATER),GRAY,TRIM1#
sub62640-95J52
main62640-95J52-03i198908-199308
GRAY,TRIM1#
sub62640-95J52
main62640-95J52-B1i199308-199508
BLUISH GRAY,TRIM1#
sub62640-95J52
main62640-95J54-03i198908-199308
GRAY,TRIM1#
sub62640-95J54
main62640-95J54-03i198908-199205
W(BACK DOOR DAMPER & BUILT IN TYPE REAR HEATER),GRAY,TRIM1#
sub62640-95J54
main62640-95J54-B1i199308-199508
BLUISH GRAY,TRIM1#
sub62640-95J54
main62640-95J63-03i198908-199205
W/O(REAR SEAT BELT) & W(BUILT IN TYPE REAR HEATER),GRAY,TRIM1#
main62640-95J63-03i198908-199205
W/O(REAR SEAT BELT),GRAY,TRIM1#
main62640-95J64-03i198908-199308
NORWAY SPEC,GRAY,TRIM1#
sub62640-95J64
sub62640-26350
main62640-95J64-B0i199308-199408
BLUISH GRAY,TRIM1#
sub62640-95J64
sub62640-26350
main62640-95J64-B5i199408-199508
BLUISH GRAY,TRIM1#
sub62640-95J64
sub62640-26350
64707CKNOB, JACK COVER
main64769-13010-43i198908-199308
GRAY,TRIM1#
sub64769-13010
main64769-13010-B0i199308-199508
BLUISH GRAY,TRIM1#
sub64769-13010
7456
75023LID SUB-ASSY, TOOL BOX, RH
main75023-95J00-03i198908-199308
GRAY,TRIM1#
sub75023-95J00
main75023-95J00-B0i199308-199508
BLUISH GRAY,TRIM1#
sub75023-95J00
75024LID SUB-ASSY, TOOL BOX, LH
main75024-95J00-03i198908-199308
GRAY,TRIM1#
sub75024-95J00
main75024-95J00-B0i199308-199508
BLUISH GRAY,TRIM1#
sub75024-95J00
6777116080WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-16080
6777126010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-26010
6777195705WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-95705
6792195500RETAINER, FRONT DOOR SCUFF PLATE
main67921-95500
9018905019
main90189-05019
9163140612
main91631-40612
9356056012
main93560-56012
9356615512
main93566-15512

22 parts on this diagram · 2 diagrams in section
