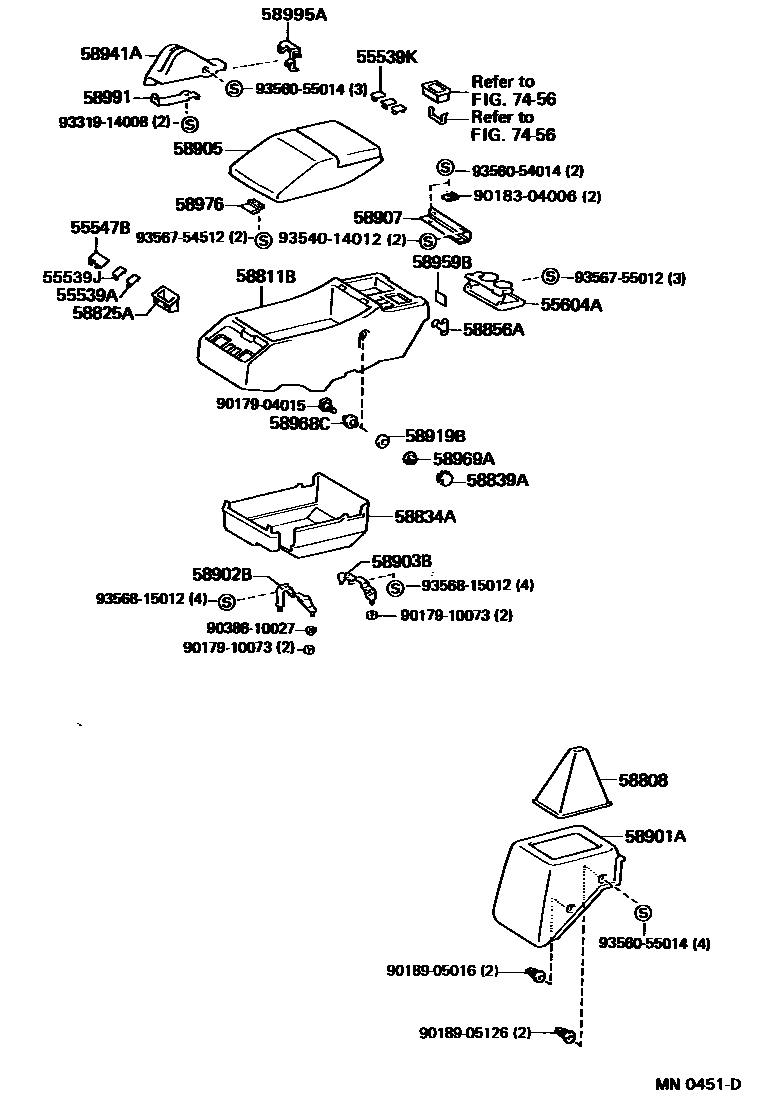

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-32010-11iRZH102..DX198908-199308

NORWAY SPEC,BLACK,TRIM1#

sub55539-32010

sub55539-32030

55539JCOVER, SPARE SWITCH HOLE

main55539-32010-11iRZH102..DX198908-199308

NORWAY SPEC,BLACK,TRIM1#

sub55539-32010

sub55539-32030

main55539-32010-B0iLH102,RZH103..GL199308-199401

BLUISH GRAY,TRIM1#

sub55539-32010

sub55539-32030

main55539-32010-C0iLH102,RZH103..GL199308-199508

BLACK,TRIM1#

sub55539-32010

sub55539-32030

55539KCOVER, SPARE SWITCH HOLE

main55539-20030-23iRZH102..DX198908-199308

NORWAY SPEC,GRAY,TRIM1#

sub55539-32010

sub55539-20030

main55539-20030-B1iLH102,RZH103..GL199308-199508

BLUISH GRAY,TRIM1#

sub55539-32010

sub55539-20030

55547BCOVER, REMOTE CONTROL MIRROR HOLE

main55547-95J00iRZH103..DX198908-199308

NORWAY SPEC

main55547-95J00iLH102,RZH103..GL199308-199508

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-95J00-03iRZH103..DX198908-199308

NORWAY SPEC,GRAY,TRIM1#

sub55604-95J01

sub55604-95J00

main55604-95J00-B0iLH102,RZH103..GL199308-199508

BLUISH GRAY,TRIM1#

sub55604-95J01

sub55604-95J00

58808COVER SUB-ASSY, SHIFTING HOLE

main58840-95J04-03iLH102,112,RZH112..RHD198908-199308

GRAY,TRIM1#

sub58840-95J04

main58840-95J04-B0iLH102,112,RZH113..RHD199308-199508

BLUISH GRAY,TRIM1#

sub58840-95J04

main58840-95J05-03iLH10#,11#,RZH10#,11#..LHD..5F198908-199308

GRAY,TRIM1#

sub58840-95J05

main58840-95J05-B0iLH10#,11#,RZH10#,11#..LHD..5F199308-199508

BLUISH GRAY,TRIM1#

sub58840-95J05

58811BBOX, CONSOLE

main58811-95J05-03iRZH102..DX199006-199308

NORWAY SPEC,GRAY,TRIM1#

sub58811-95J05

main58811-95J05-B0iLH102,RZH103..GL199308-199508

BLUISH GRAY,TRIM1#

sub58811-95J05

main58811-95J08-03iRZH102..DX198908-199006

NORWAY SPEC,GRAY,TRIM1#

sub58811-95J05

58825APOCKET, CONSOLE BOX

main58825-95J00iRZH102..DX198908-199308

NORWAY SPEC

main58825-95J00iLH102,RZH103..GL199308-199508

58834ACOVER, CONSOLE, LOWER

main58834-26010iRZH103..DX199006-199308

NORWAY SPEC

main58834-26010iLH102,RZH103..GL199308-199508

main58834-95J00iRZH102..DX198908-199006

NORWAY SPEC

58839ACOVER, CONSOLE BOX HOLE

main58839-95J00-03iRZH102..DX198908-199308

NORWAY SPEC,GRAY,TRIM1#

sub58839-95J00

main58839-95J00-B0iLH102,RZH103..GL199308-199508

BLUISH GRAY,TRIM1#

sub58839-95J00

58856AHOLDER, CONSOLE BOX

main58856-95J05iLH102,RZH103..DX198908-199308

NORWAY SPEC

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-95J01-03iLH112,RZH112,113..4FC198908-199308

GRAY,TRIM1#

sub58911-95J01

main58911-95J01-B0iLH112,RZH113..4FC199308-199508

BLUISH GRAY,TRIM1#

sub58911-95J01

main58911-95J02-03iLH10#,11#,RZH10#,11#..LHD..5F198908-199308

GRAY,TRIM1#

sub58911-95J02

main58911-95J02-B0iLH10#,11#,RZH10#,11#..LHD..5F199308-199508

BLUISH GRAY,TRIM1#

sub58911-95J02

main58911-95J04-03iLH102,112,RZH112..RHD198908-199308

GRAY,TRIM1#

sub58911-95J04

main58911-95J04-B0iLH102,112,RZH113..RHD199308-199508

BLUISH GRAY,TRIM1#

sub58911-95J04

58902BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1

main58902-95J03iLH102,RZH103..DX198908-199308

NORWAY SPEC

main58902-95J03iLH102,RZH103..GL199308-199508

58903BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.2

main58903-95J02iRZH102..DX198908-199308

NORWAY SPEC

main58903-95J02iLH102,RZH103..GL199308-199508

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-95J03-03iRZH102..DX198908-199308

NORWAY SPEC,GRAY,TRIM1#

sub58905-95J03

main58905-95J03-B0iLH102,RZH103..GL199308-199508

BLUISH GRAY,TRIM1#

sub58905-95J03

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-95J04-03iRZH102..DX198908-199308

NORWAY SPEC,GRAY,TRIM1#

sub58907-95J04

main58907-95J04-B0iLH102,RZH103..GL199308-199508

BLUISH GRAY,TRIM1#

sub58907-95J04

58919BPLATE, CONSOLE BOX

main58919-32030iRZH102..DX198908-199308

NORWAY SPEC

main58919-32030iLH102,RZH103..GL199308-199508

58941ACOVER, PARKING BRAKE HOLE

main58904-95J02-03iLH102,112,RZH112..RHD198908-199308

GRAY,TRIM1#

sub58904-95J02

main58904-95J02-B0iLH102,112,RZH113..RHD199308-199508

BLUISH GRAY,TRIM1#

sub58904-95J02

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-26010iRZH102..DX199001-199308

NORWAY SPEC,FOR CONSOLE DOOR

main58959-26010iLH102,RZH103..GL199308-199508

main58959-95J00iRZH103..DX199001-199308

NORWAY SPEC,FOR CUP HOLDER

main58959-95J00iRZH102..DX198908-199001

NORWAY SPEC

58968CSHIM, CONSOLE COMPARTMENT DOOR STOPPER

main58968-32020iLH102,RZH103..GL199308-199508

main58968-32020iRZH102..DX198908-199308

NORWAY SPEC

58969ARETAINER, CONSOLE COMPARTMENT DOOR STOPPER

main58969-20010iLH102,RZH103..DX198908-199308

NORWAY SPEC

main58969-20010iLH102,RZH103..GL199308-199508

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20020iLH102,RZH103..DX199205-199308

NORWAY SPEC

main58976-20020iLH102,RZH103..GL199308-199508

main58976-22020iRZH103..DX198908-199205

NORWAY SPEC

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-95J03iLH102,112,RZH112,113..RHD198908-199508

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-95J02iLH102,112,RZH112,113..RHD198908-199508

7456

9017904015

main90179-04015

9017910073

main90179-10073

9018304006

main90183-04006

9018905016

main90189-05016

9018905126

main90189-05126

9038610027

main90386-10027

9331914008

main93319-14008

9354014012

main93540-14012

9356054014

main93560-54014

9356055014

main93560-55014

9356754512

main93567-54512

9356755012

main93567-55012

9356815012

main93568-15012

38 parts on this diagram · 1 diagram in section
