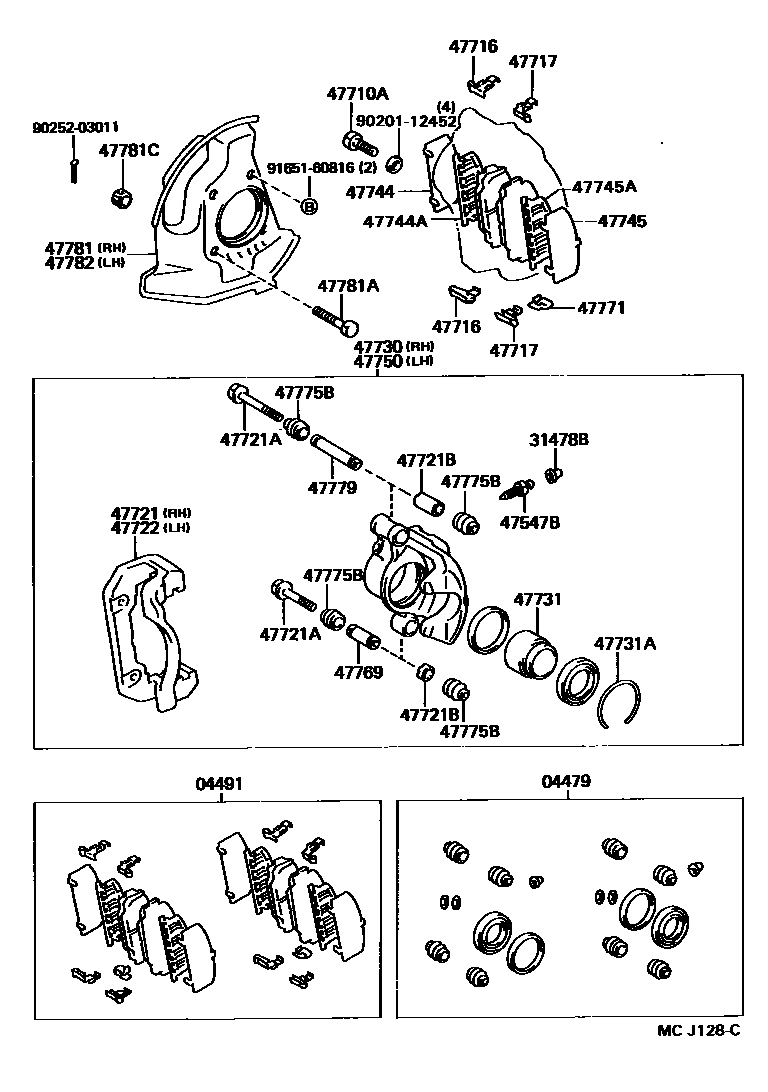

FRONT DISC BRAKE CALIPER & DUST COVER

0001 114 INCHES DISC WHEEL 0002 1 0003 1 0004 115 OR 16 INCHES DISC WHEEL 0005 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-26040iLH102,112,RZH102,103,112,113,115198908-199508

main04479-26050iLH108,118,RZH109,119198908-199308

main04479-26060iLH102,112..STD199308-199508

195/70R15C

04491PAD KIT, DISC BRAKE, FRONT

main04491-26250iLH102,112,RZH102,103,112,113,115198908-199110

main04491-26261iLH108,118,RZH109,119199110-199201

main04491-26262iLH108,118,RZH109,119199201-199203

main04491-26270iLH108,118,RZH109,119198908-199110

main04491-26280iLH102,112,RZH102,103,112,113,115199110-199203

main04491-26310iRZH102;LH102,112..STD199203-199505

main04491-26320iLH108,118,RZH109,119199203-199308

main04491-26340iLH102,112..DX,GL;LH108,118,RZH103,109,11#199308-199505

195/70R15C

main04491-26340iLH108,118,RZH109,119199505-199508

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iLH10#,11#,RZH10#,11#198908-199508

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iLH10#,11#,RZH10#,11#198908-199508

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12132iLH102,112,RZH102,103,112,113,115198908-199508

*12-1.25P-31X20

main90101-12149iLH108,118,RZH109,119198908-199508

*12-1.25P-41X20

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-26040iLH102,112,RZH102,103,112,113,115198908-199508

main47716-26050iLH102,112..DX,GL;LH108,118,RZH103,109,11#199308-199508

195/70R15C

main47716-26050iLH108,118,RZH109,119198908-199308

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-26010iLH102,112,RZH102,103,112,113,115198908-199508

main47717-26020iLH102,112..STD199308-199508

195/70R15C

main47717-26020iLH108,118,RZH109,119198908-199308

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-26070iLH108,118,RZH109,119198908-199308

main47721-26080iLH102,112,RZH102,103,112,113,115198908-199508

main47721-26100iLH102,112..DX,GL;LH108,118,RZH103,109,11#199308-199508

195/70R15C

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10014iRZH102;LH102,112..STD199308-199508

*10-1.25PX65.5-30,SUB PIN SIDE

main90119-10014iLH10#,11#,RZH10#,11#198910-199308

*10-1.25PX65.5-30

main90119-10249iRZH102;LH102,112..STD199308-199508

*10-1.25PX95.5-30,MAIN PIN SIDE

main90119-10249iLH10#,11#,RZH10#,11#198910-199308

*10-1.25PX95.5-30

main90119-10388iLH10#,11#,RZH10#,11#198908-198910

*10-1.25PX65.5-30

main90119-10389iLH10#,11#,RZH10#,11#198908-198910

*10-1.25PX95.5-30

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-16004iRZH102;LH102,112..STD199308-199508

SUB PIN SIDE

main90387-16005iLH102,112,RZH102,103,112,113,115198908-199308

main90387-16005iRZH102;LH102,112..STD199308-199508

MAIN PIN SIDE

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-26070iLH108,118,RZH109,119198908-199308

main47721-26080iLH102,112,RZH102,103,112,113,115198908-199508

main47722-26030iLH102,112..DX,GL;LH108,118,RZH103,109,11#199308-199508

195/70R15C

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-26060iLH102,112,RZH102,103,112,113,115198908-199508

main47730-26070iLH108,118,RZH109,119198908-199308

main47730-26120iLH102,112..STD199308-199508

195/70R15C

main47730-26130iLH108,118,RZH109,119199308-199508

47731PISTON, FRONT DISC BRAKE

main47731-25010iLH10#,11#,RZH10#,11#198908-199508

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-76001iLH10#,11#,RZH10#,11#198908-199508

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-26060iLH102,112,RZH102,103,112,113,115198908-199111

main47745-26060iRZH102;LH102,112..STD199111-199508

main47745-26070iLH108,118,RZH109,119199201-199308

main47745-26080iLH102,112..DX,GL;LH108,118,RZH103,109,11#199308-199508

195/70R15C

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-26070iLH102,112,RZH102,103,112,113,115199111-199508

main47744-26080iLH108,118,RZH109,119199201-199308

main47744-26090iLH102,112..DX,GL;LH108,118,RZH103,109,11#199308-199508

195/70R15C

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-26060iLH102,112,RZH102,103,112,113,115198908-199111

main47745-26050iLH108,118,RZH109,119198908-199201

main47745-26060iLH102,112,RZH102,103,112,113,115199111-199508

main47745-26070iLH108,118,RZH109,119199201-199308

main47745-26080iLH102,112..STD199308-199508

195/70R15C

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47744-26070iLH102,112,RZH102,103,112,113,115199111-199508

main47744-26080iLH108,118,RZH109,119199201-199308

main47744-26090iLH102,112..DX,GL;LH108,118,RZH103,109,11#199308-199508

195/70R15C

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-26060iRZH102;LH102,112..STD198908-199508

main47750-26070iLH108,118,RZH109,119198908-199308

main47750-26120iLH102,112..STD199308-199508

195/70R15C

main47750-26130iLH108,118,RZH109,119199308-199508

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-40010iLH10#,11#,RZH10#,11#198908-199508

main47769-50010iLH102,112..DX,GL;LH108,118,RZH103,109,11#199308-199508

195/70R15C

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-26030iLH102,112..DX,GL;LH108,118,RZH103,109,11#199308-199508

195/70R15C

main47771-26030iLH108,118,RZH109,119198908-199308

main47771-35010iRZH102;LH102,112..STD198908-199508

47775BBOOT, BUSH DUST, NO.1

main47775-26010iLH108,118,RZH109,119198908-199308

main47775-26020iRZH102;LH102,112..STD198908-199508

main47775-50010iLH102,112..STD199308-199508

W(15 INCHES DISC WHEEL)

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010iLH10#,11#,RZH10#,11#198908-199508

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-26010iRZH103,113;LH102,112..DX,GL199308-199508

W(15 INCHES DISC WHEEL)

main47781-26051iLH108,118,RZH109,119198908-199308

main47781-26070iRZH102;LH102,112..STD198908-199508

main47781-26110iLH108,118,RZH109,119199308-199508

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12005iLH102,112,RZH102,103,112,113,115198908-199508

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90171-12004iLH102,112,RZH102,103,112,113,115198908-199508

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-26010iLH102,112..STD199308-199508

W(15 INCHES DISC WHEEL)

main47782-26051iLH108,118,RZH109,119198908-199308

main47782-26070iLH102,112,RZH102,103,112,113,115198908-199508

main47782-26110iLH108,118,RZH109,119199308-199508

9020112452

main90201-12452

9025203011

main90252-03011

9165160816

main91651-60816

30 parts on this diagram · 5 diagrams in section
