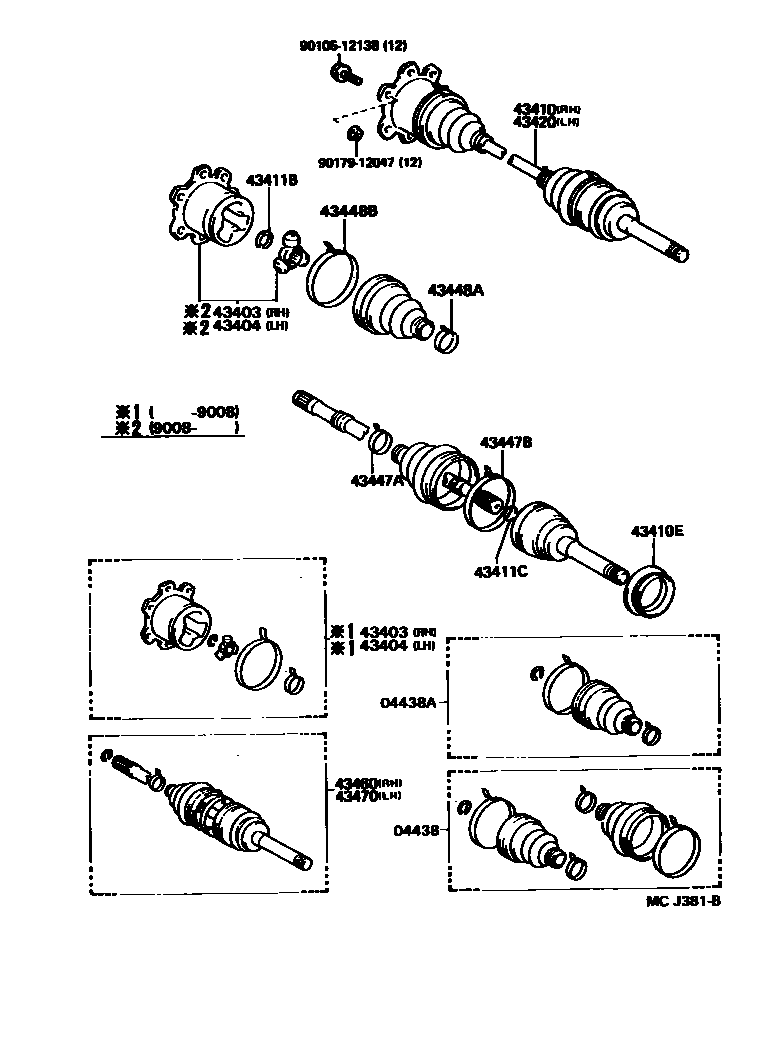

FRONT DRIVE SHAFT
04438BOOT KIT, FRONT DRIVE SHAFT
04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
43403JOINT SET, FRONT AXLE INBOARD, RH
43404JOINT SET, FRONT AXLE INBOARD, LH
43410SHAFT ASSY, FRONT DRIVE, RH
43410ECOVER, DUST (FOR FRONT DRIVE SHAFT)
43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
43411CRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER)
43420SHAFT ASSY, FRONT DRIVE, LH
43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
9010512138
main90105-12138
9017912047
main90179-12047
17 parts on this diagram · 1 diagram in section
