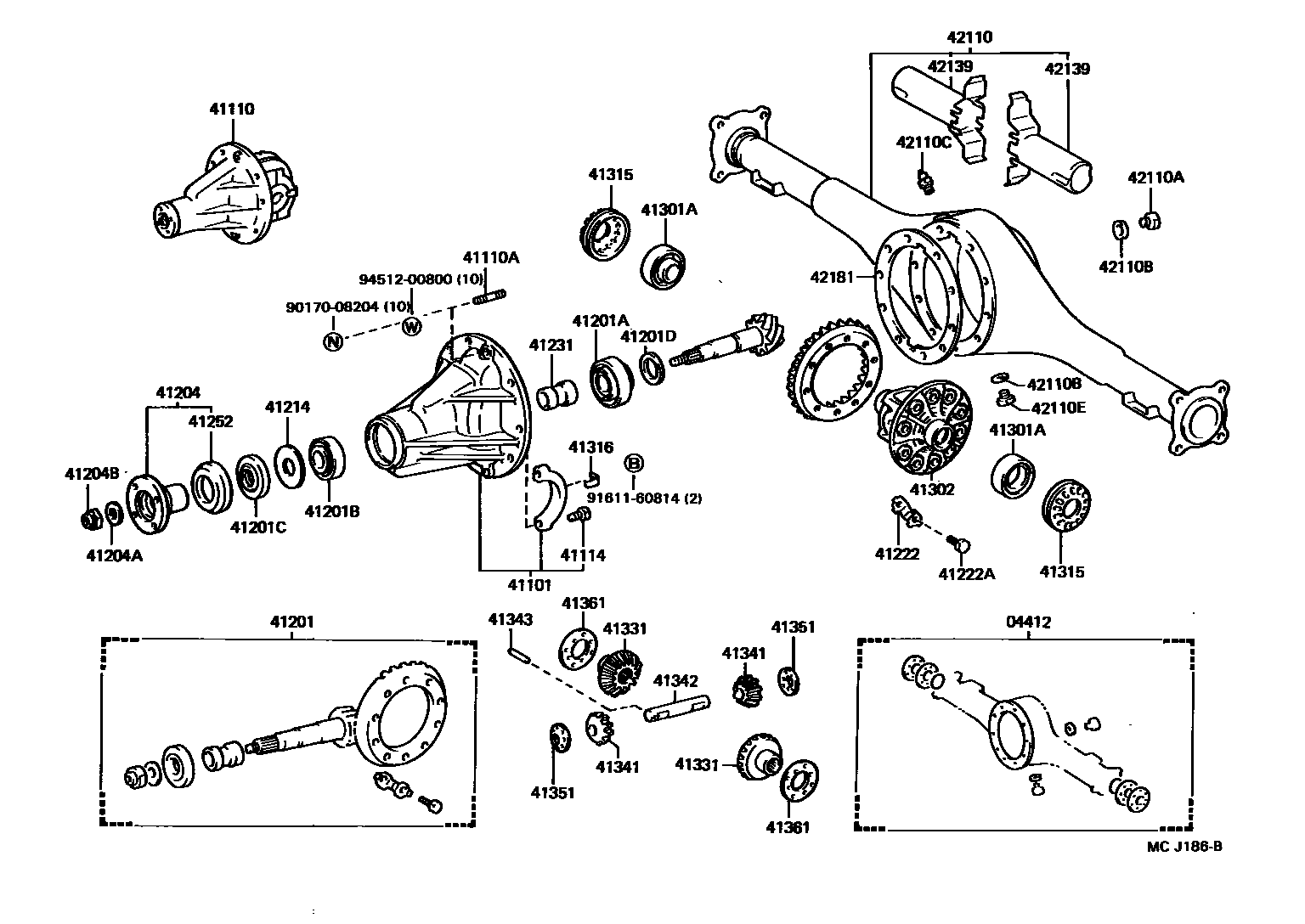

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1LIMITED SLIP DIFFERENTIAL

04412GASKET KIT, REAR DIFFERENTIAL CARRIER

main04412-35071iLH102,112,RZH102,103,112,113,115198908-199508

main04412-35090iLH108,118,RZH109,119198908-199508

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-35031iRZH113;LH102,112,RZH102,103,112,115..5F198908-199508

main41101-35041iLH108,118;LH112,RZH112..4FC198908-199508

main41101-35071iRZH109,119..DX198908-199508

main41101-60061iRZH119..DX198908-199108

*AXC=G142 OR G145

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-26072iLH108,118..STD; LH118..DX199108-199508

*FGR=39:8=4.875; *FGR=39:8=4.875,W(LSD)

main41110-26101iLH112..4FC;LH108,118..STD198908-199108

*FGR=41:8=5.125

main41110-26111iLH108,118..STD; LH112..4FC199108-199408

*FGR=41:8=5.125; *FGR=41:8=5.125,W(LSD)

main41110-26181iRZH103,113,115..5F198908-199508

*FGR=41:10=4.100,W(LSD)

main41110-35084iLH108,118..STD; LH118..DX;RZH112..4FC198908-199108

*FGR=39:8=4.875; *FGR=39:8=4.875,*AXC=G142

main41110-35202iRZH103,113,115..5F198908-199508

*FGR=41:10=4.100

main41110-35212iLH102,112,RZH102,112..5F198908-199508

*FGR=43:10=4.300

main41110-35222iRZH113..4FC198908-199508

*FGR=41:9=4.555

main41110-35302iLH102,112,RZH102,112..5F198908-199508

*FGR=43:10=4.300,W(LSD)

main41110-35312iRZH113..4FC198908-199508

*FGR=41:9=4.555,W(LSD)

main41110-35670iRZH109,119..DX199305-199508

*FGR=41:9=4.555

main41110-60151iRZH119..DX198908-199108

*FGR=41:9=4.555

main41110-60171iRZH109,119..STD; RZH119..DX198908-199003

*FGR=39:8=4.875; *FGR=39:8=4.875,*AXC=G142

main41110-60181iRZH119..DX198908-199108

*FGR=41:9=4.555,W(LSD)

main41110-60191iRZH109,119198908-199003

*FGR=39:8=4.875,W(LSD)

main41110-60380iRZH109,119..STD; RZH119..DX199003-199108

*FGR=39:8=4.875; *FGR=39:8=4.875,*AXC=G142

main41110-60390iRZH109,119..DX; RZH109,119..STD199108-199508

*FGR=39:8=4.875; *FGR=39:8=4.875,W(LSD)

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08329×8iLH10#,11#,RZH10#,11#198908-199508

S=17 & 12,L=37

main90116-08334×2iLH10#,11#,RZH10#,11#198908-199508

S=12 & 14,L=44

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053×4iLH10#,11#,RZH10#,11#198908-199508

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29735iLH112..4FC;LH108,118..STD198908-199508

*FGR=41:8=5.125

main41201-29785iRZH103,113,115..5F198908-199508

*FGR=41:10=4.100

main41201-29795iLH102,112,RZH102,112..5F198908-199508

*FGR=43:10=4.300

main41201-29805iRZH113..4FC199305-199508

*FGR=41:9=4.556

main41201-29815iLH118..DX;RZH112..4FC;RZH109,119..STD; RZH119..DX;LH108,118..STD198908-199003

*FGR=39:8=4.875

main41201-29816iLH118..DX;RZH112..4FC;RZH109,119..STD199003-199508

*FGR=39:8=4.875

main41201-80059iRZH109,119..DX199305-199508

*FGR=41:9=4.556

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35028iRZH109,119198908-199508

main90366-35044iLH10#,11#,RZH102,103,112,113,115198908-199508

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iLH10#,11#,RZH102,103,112,113,115198908-199508

main90366-30025iRZH109,119198908-199508

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38133iLH10#,11#,RZH10#,11#198908-199508

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497iLH10#,11#,RZH10#,11#198908-199508

OD=47,T=1.70

main90201-35498iLH10#,11#,RZH10#,11#198908-199508

OD=47,T=1.73

main90201-35499iLH10#,11#,RZH10#,11#198908-199508

OD=47,T=1.76

main90201-35500iLH10#,11#,RZH10#,11#198908-199508

OD=47,T=1.79

main90201-35501iLH10#,11#,RZH10#,11#198908-199508

OD=47,T=1.82

main90201-35502iLH10#,11#,RZH10#,11#198908-199508

OD=47,T=1.85

main90201-35503iLH10#,11#,RZH10#,11#198908-199508

OD=47,T=1.88

main90201-35504iLH10#,11#,RZH10#,11#198908-199508

OD=47,T=1.91

main90201-35505iLH10#,11#,RZH10#,11#198908-199508

OD=47,T=1.94

main90201-35506iLH10#,11#,RZH10#,11#198908-199508

OD=47,T=1.97

main90201-35507iLH10#,11#,RZH10#,11#198908-199508

OD=47,T=2.00

main90201-35508iLH10#,11#,RZH10#,11#198908-199508

OD=47,T=2.03

main90201-35509iLH10#,11#,RZH10#,11#198908-199508

OD=47,T=2.06

main90201-35510iLH10#,11#,RZH10#,11#198908-199508

OD=47,T=2.09

main90201-35511iLH10#,11#,RZH10#,11#198908-199508

OD=47,T=2.12

main90201-35512iLH10#,11#,RZH10#,11#198908-199508

OD=47,T=2.15

main90201-35513iLH10#,11#,RZH10#,11#198908-199508

OD=47,T=2.18

main90201-35514iLH10#,11#,RZH10#,11#198908-199508

OD=47,T=2.21

main90201-35515iLH10#,11#,RZH10#,11#198908-199508

OD=47,T=2.24,MARK 01

main90201-35516iLH10#,11#,RZH10#,11#198908-199508

OD=47,T=2.27,MARK 02

main90201-35517iLH10#,11#,RZH10#,11#198908-199508

OD=47,T=2.30,MARK 03

main90201-35518iLH10#,11#,RZH10#,11#198908-199508

OD=47,T=2.33,MARK 04

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35040iLH10#,11#,RZH10#,11#198908-199508

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-20005iLH10#,11#,RZH10#,11#198908-199308

41204BNUT (FOR REAR DRIVE PINION)

main90179-20001iLH10#,11#,RZH10#,11#198908-199308

main90179-20018iLH10#,11#,RZH10#,11#199308-199508

OD=37

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iLH10#,11#,RZH10#,11#198908-199508

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020×5iLH10#,11#,RZH10#,11#198908-199508

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353×10iLH10#,11#,RZH10#,11#198908-199508

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iRZH109,119198908-199508

main41231-40011iLH10#,11#,RZH102,103,112,113,115198908-199508

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-35010iLH10#,11#,RZH10#,11#198908-199303

main41252-35020iLH10#,11#,RZH10#,11#199303-199508

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50007×2iRZH109,119198908-199508

main90368-45066×2iLH102,112,RZH102,103,112,113,115199108-199408

main90368-50024×2iLH102,112,RZH102,112..5F; RZH103,113,115..5F; RZH113..4FC198908-199508

W(LSD)

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-35010iLH102,112,RZH102,112..5F; RZH103,113,115..5F; RZH113..4FC198908-199508

W(LSD)

main41302-35020iRZH109,119198908-199108

main41311-40020iLH10#,11#,RZH102,103,112,113,115198908-199108

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-35010×2iLH10#,11#,RZH102,103,112,113,115198908-199508

main41315-35020×2iRZH109,119198908-199508

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010×2iLH10#,11#,RZH102,103,112,113,115198908-199305

main41316-35010×2iLH10#,11#,RZH10#,11#199305-199508

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-35011×2iLH10#,11#,RZH102,103,112,113,115198908-199108

main41331-35030×2iLH102,112,RZH102,112..5F; RZH103,113,115..5F; RZH113..4FC198908-199508

W(LSD)

main41331-35040×2iRZH109,119198908-199108

41341PINION, REAR DIFFERENTIAL

main41341-30020×8iLH102,112,RZH102..5F; LH112..4FC;LH108,118,RZH109,119; RZH103,113..5F; RZH113..4FC199408-199508

W(LSD)

main41341-35010×4iLH102,112,RZH102,112..5F; LH112..4FC; RZH103,113,115..5F; RZH113..4FC198908-199408

W(LSD)

main41341-35020×2iLH10#,11#,RZH102,103,112,113,115198908-199108

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-39610iRZH113;LH102,112,RZH102,103..5F199408-199508

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06085iRZH113;LH102,112,RZH102,103..5F199408-199508

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30052×2iLH102,112,RZH102,103,112,113,115199108-199408

main41351-30060×4iLH108,118..STD; LH118..DX;RZH112..4FC; RZH109,119198908-199108

W(LSD)

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-24010×2iRZH109,119198908-199108

T=0.90

main41361-24020×2iRZH109,119198908-199108

T=1.00

main41361-24030×2iRZH109,119198908-199108

T=1.10

main41361-24040×2iRZH109,119198908-199108

T=1.20

main41361-24050×2iRZH109,119198908-199108

T=1.30

main41361-40021×2iRZH113;LH102,112,RZH102,103..5F199408-199508

T=1.6

main41362-40021×2iLH102,112,RZH102,103,112,113,115199108-199408

T=1.7

main41363-40021×2iRZH113;LH102,112,RZH102,103..5F199408-199508

T=1.8

42110HOUSING ASSY, REAR AXLE

main42110-26270iLH102,112,RZH112,113..RHD198908-199408

main42110-26271iLH102,112,RZH113..RHD199408-199508

main42110-26280iLH102,112,RZH102,103,112,113,115..LHD198908-199408

main42110-26281iLH102,112,RZH102,103,113..LHD199408-199508

main42110-26300iLH108,118,RZH109,119198908-199408

main42110-26301iLH108,118,RZH109,119199408-199508

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iLH10#,11#,RZH10#,11#198908-199508

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010×2iLH10#,11#,RZH10#,11#198908-199508

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iLH10#,11#,RZH10#,11#198908-199508

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iLH10#,11#,RZH10#,11#198908-199508

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42139-35020×2iLH10#,11#,RZH10#,11#198908-199508

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-60020iLH10#,11#,RZH10#,11#198908-199508

9017008204

main90170-08204

9161160814

main91611-60814

9451200800

main94512-00800

38 parts on this diagram · 3 diagrams in section
