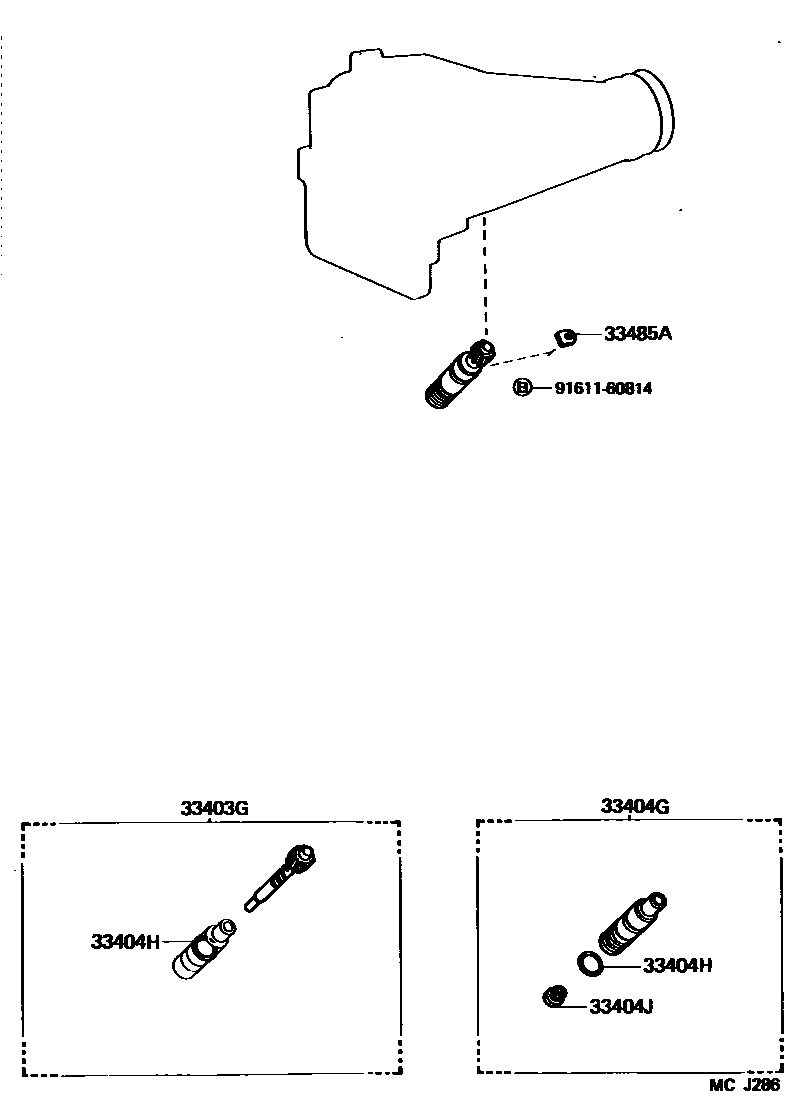

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A45DL 0002 1A45DL

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29245iRZH112..4FC198908-199108

N=19,MARK 19:5

main33403-39195iLH112..4FC198908-199308

N=16,MARK 16:4

main33403-39205iRZH113..4FC198908-199308

N=18,MARK 18:5

main33482-29225iLH112..4FC199308-199508

N=16,MARK 16:4

main33482-39385iRZH113..4FC199308-199508

N=18,MARK N

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iLH112,RZH112,113..4FC198908-199308

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iLH112,RZH112,113..4FC198908-199308

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLH112,RZH112,113..4FC198908-199308

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iLH112,RZH112,113..4FC198908-199308

9161160814

main91611-60814

6 parts on this diagram · 2 diagrams in section
