CARBURETOR ASSEMBLY

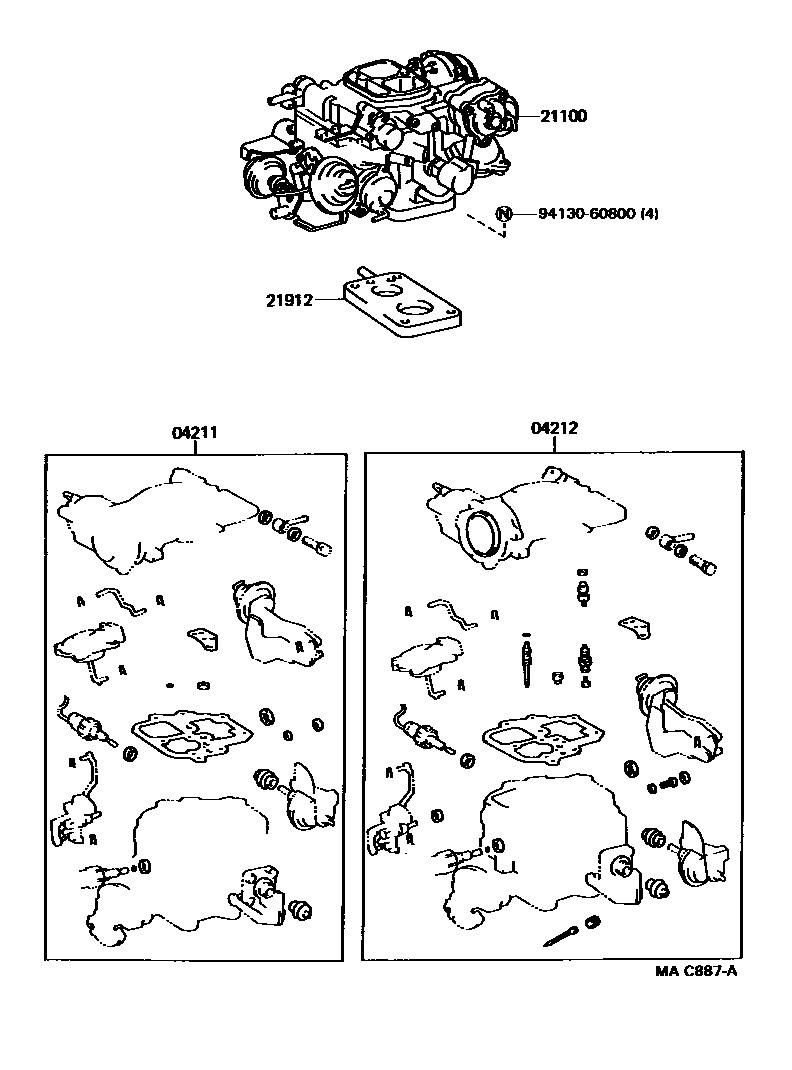

Parts diagram

04211CARBURETOR KIT

main04211-75020i198908-199003

main04211-75021i199003-199008

04212GASKET KIT, CARBURETOR

main04212-75010i198908-199003

main04212-75011i199003-199508

21100CARBURETOR ASSY

main21100-75020i198908-199508

main21100-75050i198908-199108

21912INSULATOR, CARBURETOR HEAT

main21912-75010i198908-199508

9413060800

main94130-60800

5 parts on this diagram · 1 diagram in section
