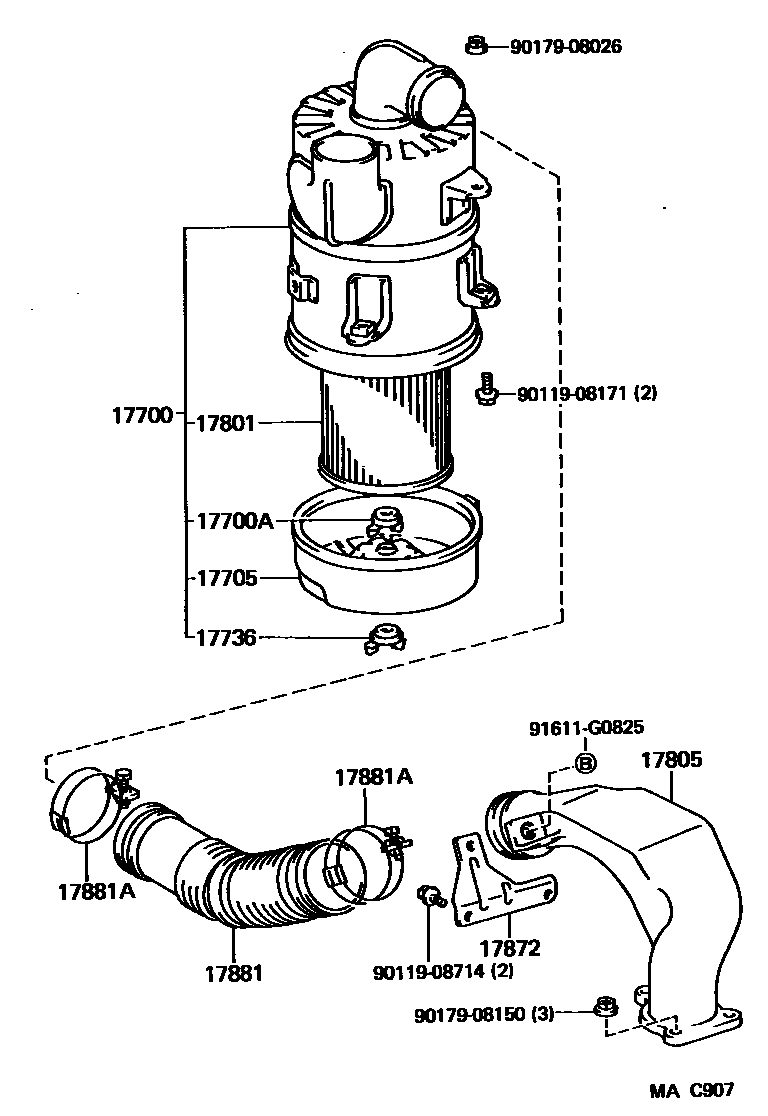

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17700CLEANER ASSY, AIR

main17700-54580i2L..LH10#,11#198908-199010

main17700-54710i2L..LH10#,11#199010-199508

main17700-75010i1RZ..RZH102,112198908-199202

main17700-75011i1RZ..RZH102,112199202-199508

main17700-75030i2RZE..RZH103,109,113,115,119198908-199202

main17700-75031i2RZE..RZH103,109,113,115,119199202-199508

main17700-75040i1RZ..RZH102,112..LHD..5F199010-199202

*EX-USSR

main17700-75041i1RZ..RZH102,112..LHD199202-199203

*EX-USSR

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i1RZ,2RZE..RZH10#,11#; 2L..LH10#,11#198908-199508

17705CAP SUB-ASSY, AIR CLEANER

main17705-75010i1RZ,2RZE..RZH10#,11#198908-199508

main17705-75020i2L..LH10#,11#198908-199508

17736NUT, AIR CLEANER CASE

main90175-06003i1RZ,2RZE..RZH10#,11#; 2L..LH10#,11#198908-199508

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-54100i1RZ,2RZE..RZH10#,11#; 2L..LH10#,11#198908-199508

main17801-75010i1RZ..RZH102,112..LHD..5F199010-199203

*EX-USSR

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-54180i2L..LH10#,11#198908-199508

main17805-75010i1RZ..RZH102,112198908-199508

17872BRACKET, INTAKE AIR CONNECTOR

main17872-54030i2L..LH10#,11#198908-199508

17881HOSE, AIR CLEANER, NO.1

main17881-54420i2L..LH10#,11#198908-199508

main17881-75010i1RZ,2RZE..RZH10#,11#198908-199408

main17881-75020i1RZ,2RZE..RZH10#,11#199408-199508

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-80001i1RZ,2RZE..RZH10#,11#199408-199508

PIPE SIDE

main96111-10750i2L..LH10#,11#199001-199508

AIR CLEANER SIDE

main96111-10800×2i2L..LH10#,11#198908-199001

main96111-10850i1RZ,2RZE..RZH10#,11#199505-199508

AIR CLEANER SIDE

main96111-10880i1RZ,2RZE..RZH10#,11#198908-199302

CONNECTOR SIDE

main96111-10900i1RZ,2RZE..RZH10#,11#198908-199308

AIR CLEANER SIDE

9011908171

main90119-08171

9011908714

main90119-08714

9017908026

main90179-08026

9017908150

main90179-08150

91611G0825

main91611-G0825

14 parts on this diagram · 4 diagrams in section
