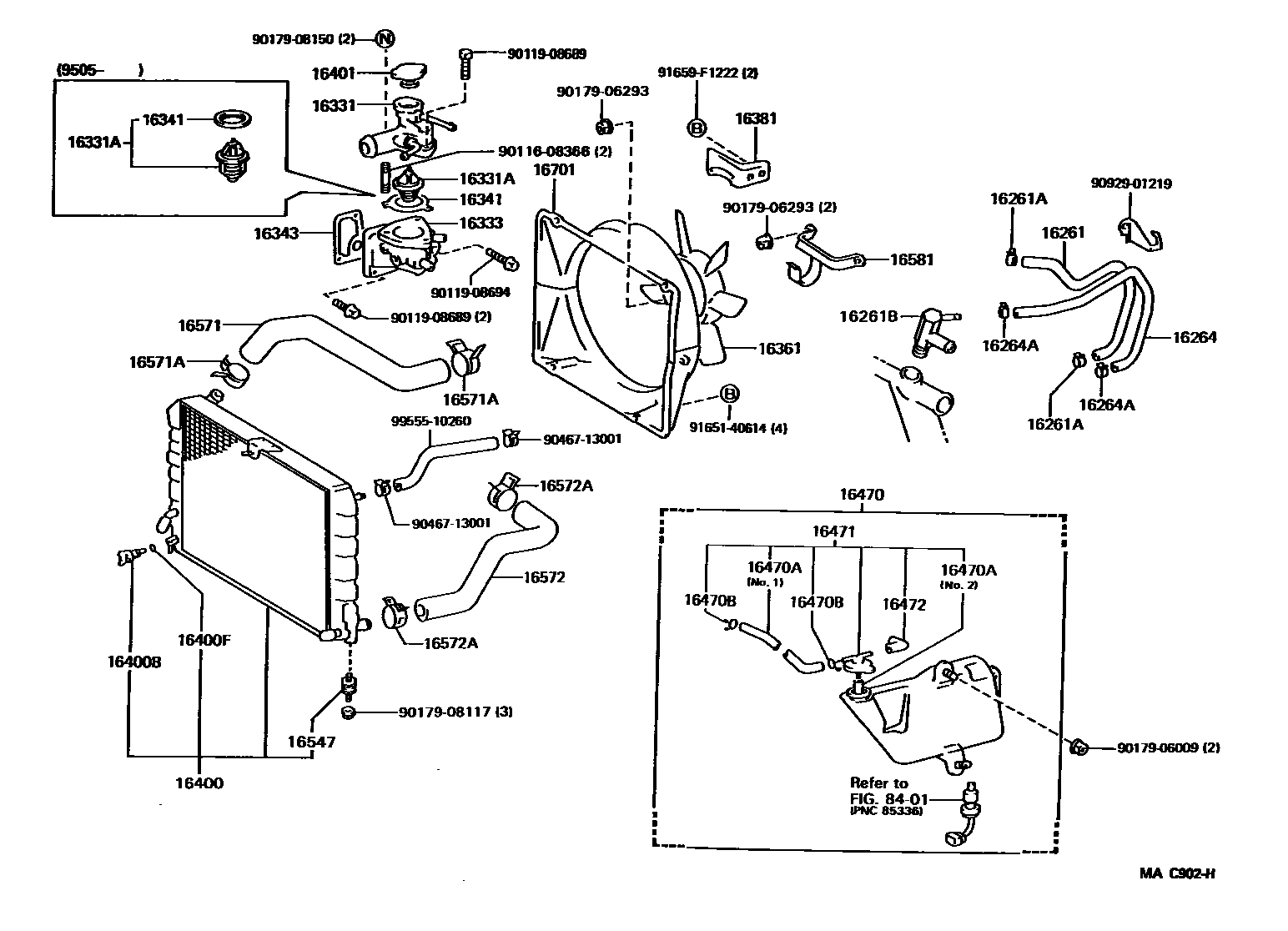

RADIATOR & WATER OUTLET

0001 1 0002 1

16261HOSE, WATER BY-PASS

main16261-54080i2L..LH10#,11#198908-198910

main16261-54120i2L..LH10#,11#198910-199508

main16261-75010i1RZ..RZH102,112198908-199508

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-15004×2i2L..LH10#,11#198908-198909

main90467-15022×2i2L..LH10#,11#198909-199508

main96135-41300×2i1RZ..RZH102,112198908-199508

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-54037i2L..LH10#,11#198908-199108

main90404-54040i2L..LH10#,11#199108-199501

16264HOSE, WATER BY-PASS, NO.2

main16264-54070i2L..LH10#,11#198908-198910

main16264-54120i2L..LH10#,11#198910-199508

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-15004×2i2L..LH10#,11#198908-198909

main90467-15022×2i2L..LH10#,11#198909-199508

16331OUTLET, WATER

main16304-75010i1RZ,2RZE..RZH10#,11#198908-199508

main16331-54110i2L..LH10#,11#198908-199108

main16331-54111i2L..LH10#,11#199108-199508

16331ATHERMOSTAT

main16340-54010i2L..LH10#,11#199505-199508

*WAX 88-100

main90916-03088i1RZ,2RZE..RZH10#,11#198908-199304

*WAX 82-95

main90916-03099i2L..LH10#,11#198908-199505

*WAX 88-100

main90916-03101i1RZ,2RZE..RZH10#,11#199304-199508

*WAX 82-95

16333HOUSING, WATER OUTLET

main16333-54111i2L..LH10#,11#198908-199108

main16333-54112i2L..LH10#,11#199108-199505

main16333-54113i2L..LH10#,11#199505-199508

16341GASKET, WATER OUTLET

main16341-35010i2L..LH10#,11#199505-199508

main16341-54030i2L..LH10#,11#198908-199110

main16341-54040i2L..LH10#,11#199110-199505

main16341-75010i1RZ,2RZE..RZH10#,11#198908-199508

16343GASKET, WATER OUTLET HOUSING

main16343-54030i2L..LH10#,11#198908-199110

main16343-54040i2L..LH10#,11#199110-199508

16361FAN

main16361-38010i1RZ,2RZE..RZH10#,11#198908-199508

main16361-54020i2L..LH10#,11#198908-199508

16381BAR, FAN BELT ADJUSTING

main16381-54070i2L..LH102,112198908-199508

main16381-54090i2L..LH108,118198908-199508

main16381-75010i1RZ,2RZE..RZH10#,11#198908-199508

16400RADIATOR ASSY

main16400-54750i2L..LH10#,11#..5F198908-199307

main16400-54751i2L..LH10#,11#..5F199307-199411

main16400-54752i2L..LH10#,11#..5F199411-199508

main16400-54770i2L..LH112..4FC198908-199307

main16400-54771i2L..LH112..4FC199307-199411

main16400-54772i2L..LH112..4FC199411-199508

main16400-75050i1RZ..RZH112..4FC198908-199108

main16400-75061i1RZ,2RZE..RZH10#,11#..5F199308-199411

main16400-75062i1RZ,2RZE..RZH10#,11#..5F199411-199508

main16400-75070i1RZ,2RZE..RZH10#,11#..5F198908-199308

main16400-75080i2RZE..RZH113..4FC198908-199210

main16400-75081i2RZE..RZH113..4FC199308-199411

main16400-75082i2RZE..RZH113..4FC199411-199508

16400BPLUG, RADIATOR DRAIN COCK

main16417-75010i1RZ,2RZE..RZH10#,11#; 2L..LH10#,11#198908-199508

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24200i1RZ,2RZE..RZH10#,11#; 2L..LH10#,11#198908-199508

16401CAP SUB-ASSY, RADIATOR

main16401-71010i1RZ,2RZE..RZH10#,11#; 2L..LH10#,11#198908-199508

16470TANK ASSY, RADIATOR RESERVE

main16470-54190i2L..LH10#,11#198908-199005

main16470-54191i2L..LH10#,11#199005-199108

main16470-54212i2L..LH10#,11#199108-199204

main16470-54213i2L..LH10#,11#199204-199306

main16470-54214i2L..LH10#,11#199306-199508

main16470-75010i1RZ,2RZE..RZH10#,11#198908-199205

main16470-75020i1RZ,2RZE..RZH10#,11#199205-199508

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85338-54190i2L..LH10#,11#198908-199302

NO.1

main85338-75010i1RZ,2RZE..RZH10#,11#198908-199508

NO.2

main90099-33466i1RZ,2RZE..RZH10#,11#198908-198909

L=600(*H,L=210),NO.1

main90445-12078i2L..LH10#,11#199302-199308

L=600,NO.2

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i1RZ,2RZE..RZH10#,11#; 2L..LH10#,11#198908-199508

16471CAP SUB-ASSY, RESERVE TANK

main16405-54200i2L..LH10#,11#198908-199005

main16405-54201i2L..LH10#,11#199005-199204

main16405-54202i2L..LH10#,11#199204-199508

main16405-75010i1RZ,2RZE..RZH10#,11#198908-199508

16472HOSE, BREATHER

main85338-54191i2L..LH10#,11#199005-199508

main85338-70100i1RZ,2RZE..RZH10#,11#198908-199508

main85338-74040i2L..LH10#,11#198908-199005

16547BUSH, RADIATOR SUPPORT, NO.1

main16547-67040×2i1RZ,2RZE..RZH10#,11#; 2L..LH10#,11#198908-199508

16571HOSE, RADIATOR, INLET

main16571-54320i2L..LH102,112198908-199508

main16571-54330i2L..LH108,118198908-199508

main16571-75010i1RZ,2RZE..RZH10#,11#198908-199508

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001×2i1RZ,2RZE..RZH10#,11#; 2L..LH10#,11#198908-199508

16572HOSE, RADIATOR, OUTLET

main16572-54320i2L..LH102,112198908-199508

main16572-54330i2L..LH108,118198908-199508

main16572-75010i1RZ,2RZE..RZH102,103,112,113,115198908-199508

main16572-75020i2RZE..RZH109,119198908-199508

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37001×2i1RZ,2RZE..RZH10#,11#; 2L..LH102,112; 2L..LH108,118198908-199302

RADIATOR SIDE

main90467-37002i1RZ,2RZE..RZH10#,11#198908-199508

ENGINE SIDE

main96111-10480i2L..LH10#,11#199002-199508

ENGINE SIDE

main96111-10500i2L..LH10#,11#198908-199002

ENGINE SIDE

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-54010i2L..LH10#,11#198908-199508

16701SHROUD SUB-ASSY, FAN

main16701-54220i2L..LH102,112198908-199508

main16701-54230i2L..LH108,118198908-199508

main16701-75010i1RZ,2RZE..RZH102,103,112,113,115198908-199508

main16701-75020i2RZE..RZH109,119198908-199508

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011608366

main90116-08366

9011908683

main90119-08683

9011908689

main90119-08689

9011908694

main90119-08694

9017906009

main90179-06009

9017906293

main90179-06293

9017908117

main90179-08117

9017908150

main90179-08150

9046713001

main90467-13001

9092901219

main90929-01219

9165140614

main91651-40614

91659F1222

main91659-F1222

9955510260

main99555-10260

42 parts on this diagram · 2 diagrams in section
