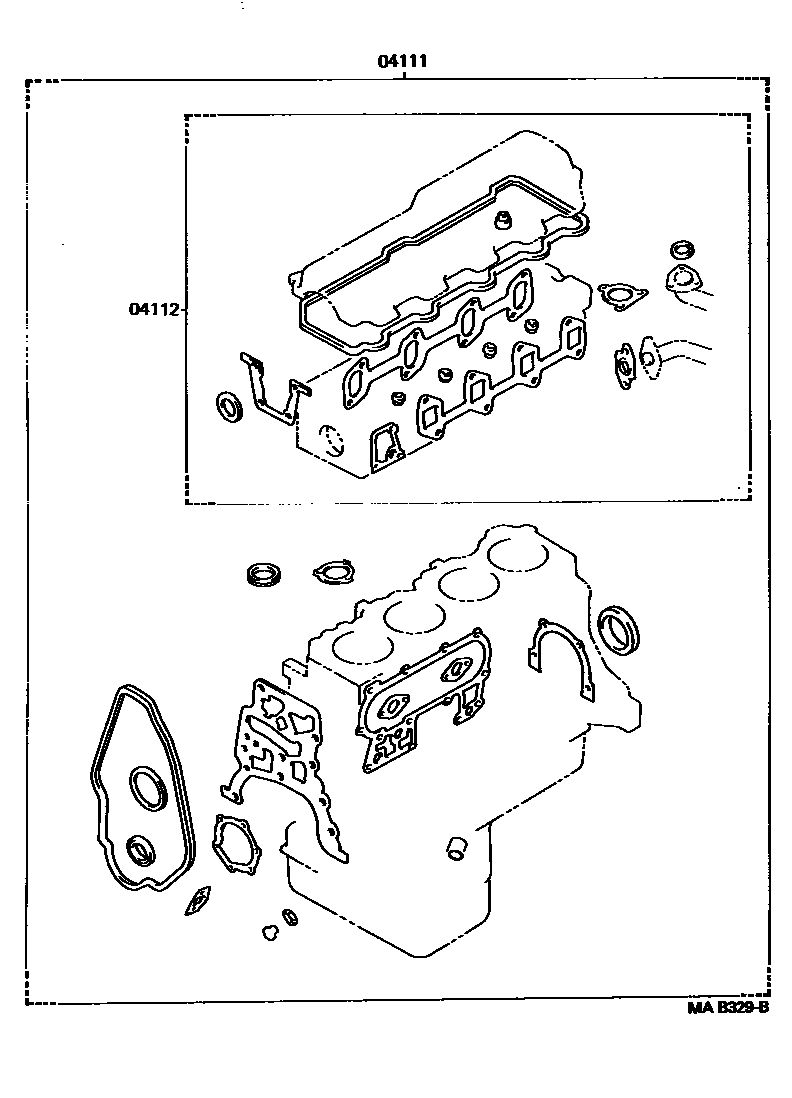

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-54082i2L..LH10#,11#198908-199108

main04111-54083i2L..LH10#,11#199108-199508

main04111-75010i1RZ..RZH102,112198908-198912

main04111-75011i1RZ..RZH102,112198912-199508

main04111-75040i2RZE..RZH103,109,113,115,119198908-198912

main04111-75041i2RZE..RZH103,109,113,115,119198912-199508

04112GASKET KIT, ENGINE VALVE GRIND

main04112-54070i2L..LH10#,11#198908-199108

main04112-54071i2L..LH10#,11#199108-199508

main04112-75010i1RZ..RZH102,112198908-199508

main04112-75040i2RZE..RZH103,109,113,115,119198908-199508

2 parts on this diagram · 3 diagrams in section
