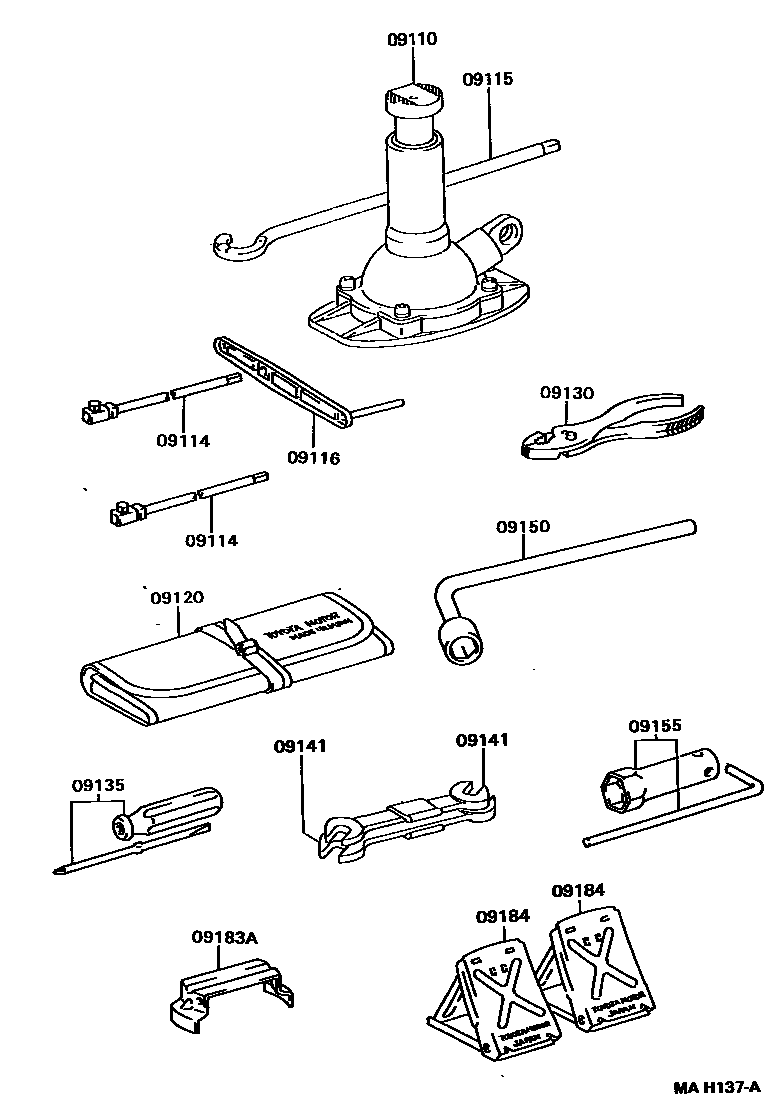

STANDARD TOOL

09110JACK ASSY

main09111-95J00iLH102,112,RZH102,103,112,113,115198908-199508

main09111-95J01iLH108,118,RZH109,119198908-199508

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-28010×2iLH10#,11#,RZH10#,11#199210-199508

main09114-60050×2iLH10#,11#,RZH10#,11#198908-199210

09115ROD SUB-ASSY, JACK HANDLE

main09115-28030iLH10#,11#,RZH10#,11#198908-199508

09116LEVER, JACK HANDLE

main09116-35041iLH10#,11#,RZH10#,11#198908-199508

09120BAG, TOOL

main09120-12011iLH10#,11#,RZH10#,11#199405-199508

main09120-26021iLH10#,11#,RZH10#,11#198908-199405

09130PLIERS

main99913-11500iLH10#,11#,RZH10#,11#198908-199508

09135DRIVER, SCREW

main99915-10700iLH10#,11#,RZH10#,11#198908-199508

09141SPANNER

main99914-10810iLH10#,11#,RZH10#,11#198908-199508

8 X 10

main99914-11214iLH10#,11#,RZH10#,11#198908-199508

12 X 14

09150WRENCH, HUB NUT BOX

main09150-35020iLH10#,11#,RZH10#,11#198908-199308

main09150-40010iLH10#,11#,RZH10#,11#..EUR,SDN199308-199405

09155WRENCH, SPARK PLUG

main09155-41010iRZH10#,11#198908-199308

09183AREPLACER, WHEEL CAP

main09183-60020iLH108,118,RZH109,119199308-199508

09184STOPPER, WHEEL

main09184-00010×2iLH108,118,RZH109,119199308-199405

12 parts on this diagram · 1 diagram in section
