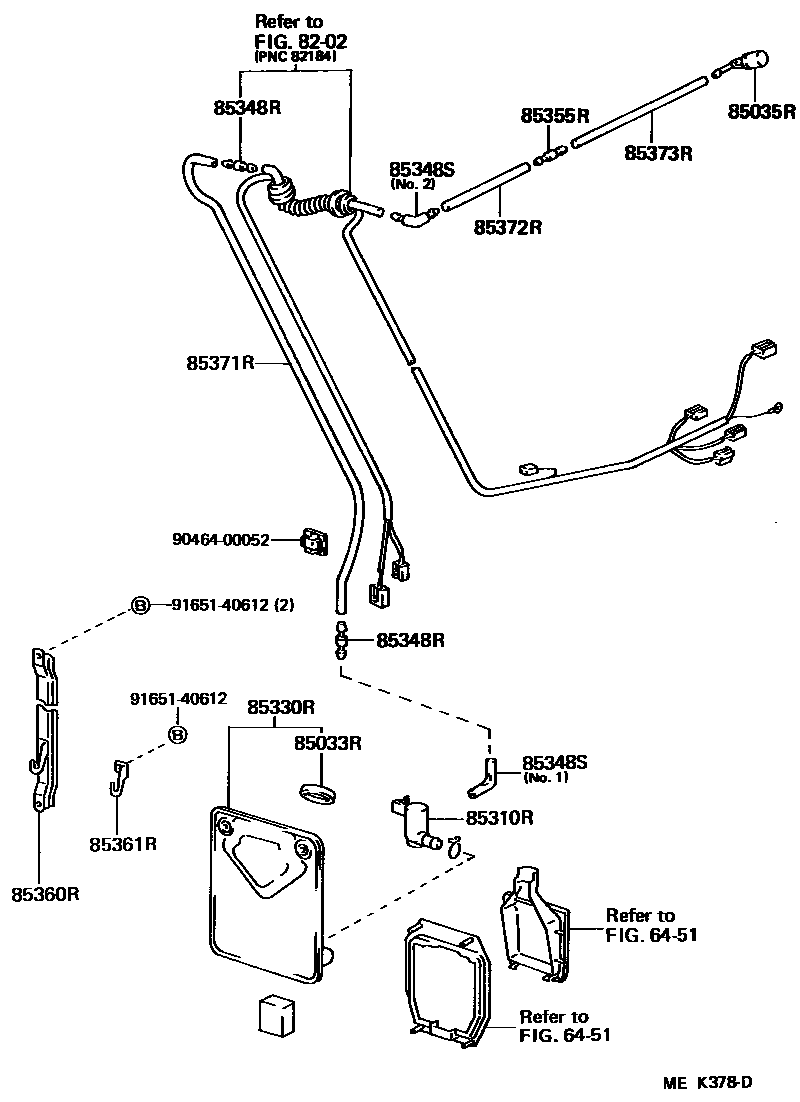

REAR WASHER

6451INSIDE TRIM BOARD

→ Go to FIG 64-51

8202WIRING & CLAMP

→ Go to FIG 82-02

85033RCAP ASSY, REAR WASHER

main85332-20070iLH66,YH66..J; YH61..U;LH5#,61,YH56..J,U;YH51,6#..V5D..(4HC,5F,5H); YH66..R198708-198908

85035RNOZZLE SUB-ASSY, REAR WASHER

main85035-95J00iYH51..V4D;YH61..15S;YH51,61..V5D..4H;YH61..V4D..(03S,J,R);LH5#,6#,YH56..02S,03S,R198708-198709

85310RMOTOR ASSY, REAR WASHER

main85310-22080iYH51..V4D;YH61..15S;YH51,61..V5D..4H;YH61..V4D..(03S,J,R);LH5#,6#,YH56..02S,03S,R198708-198709

85330RJAR ASSY, REAR WASHER

main85330-95J03iYH51..V4D;YH61..15S;YH51,61..V5D..4H;YH61..V4D..(03S,J,R);LH5#,6#,YH56..02S,03S,R198708-198709

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122×2iYH51..V4D;YH61..15S;YH51,61..V5D..4H;YH61..V4D..(03S,J,R);LH5#,6#,YH56..02S,03S,R198708-198709

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iLH66,YH66..J; YH61..U;LH5#,61,YH56..J,U;YH51,6#..V5D..(4HC,5F,5H); YH66..R198708-198908

NO.1

main85355-20200iLH66,YH66..J; YH61..U;LH5#,61,YH56..J,U;YH51,6#..V5D..(4HC,5F,5H); YH66..R198708-198908

NO.2

85355RVALVE, REAR WASHER HOSE

main85031-12250iLH66,YH66..J; YH61..U;LH5#,61,YH56..J,U;YH51,6#..V5D..(4HC,5F,5H); YH66..R198708-198908

85360RBRACKET ASSY, REAR WASHER

main85307-95J00iYH51..V4D;YH61..15S;YH51,61..V5D..4H;YH61..V4D..(03S,J,R);LH5#,6#,YH56..02S,03S,R198708-198709

85361RHOLDER, REAR WASHER

main85361-95J00iYH51..V4D;YH61..15S;YH51,61..V5D..4H;YH61..V4D..(03S,J,R);LH5#,6#,YH56..02S,03S,R198708-198709

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-07001iYH51..V4D;YH61..15S;YH51,61..V5D..4H;YH61..V4D..(03S,J,R);LH5#,6#,YH56..02S,03S,R198708-198709

L=1800

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33435iYH51..V4D;YH61..15S;YH51,61..V5D..4H;YH61..V4D..(03S,J,R);LH5#,6#,YH56..02S,03S,R198708-198709

L=1800(*H,L=280)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33434iYH51..V4D;YH61..15S;YH51,61..V5D..4H;YH61..V4D..(03S,J,R);LH5#,6#,YH56..02S,03S,R198708-198709

L=1800(*H,L=550)

9046400052

main90464-00052

9165140612

main91651-40612

16 parts on this diagram · 1 diagram in section
