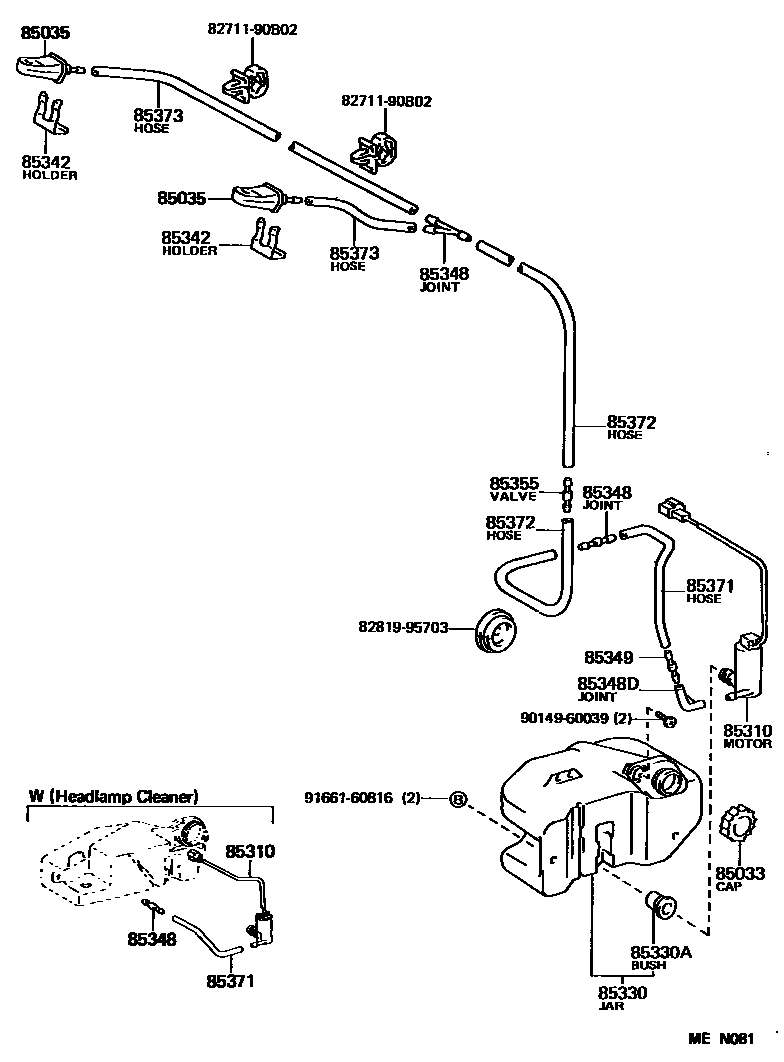

WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85332-95J01iLH5#,6#,YH5#,6#198708-198908

85035NOZZLE SUB-ASSY, WASHER

main85035-95714×2iLH5#,6#,YH5#,6#198708-198908

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-95J00iLH5#,6#,YH5#,6#198708-198908

85330JAR ASSY, WINDSHIELD WASHER

main85330-95J00iLH5#,6#,YH5#,6#198708-198908

main85330-95J02iYH51..U198709-198908

HIGH GRADE PACKAGE

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iLH5#,6#,YH5#,6#198708-198908

85342HOLDER, WASHER NOZZLE

main85342-95J01×2iLH5#,6#,YH5#,6#198708-198908

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iLH5#,6#,YH5#,6#198708-198908

3-WAY

main85349-89122iLH5#,6#,YH5#,6#198708-198908

2-WAY

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iLH5#,6#,YH5#,6#198708-198908

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iLH5#,6#,YH5#,6#198708-198908

85355VALVE, WINDSHIELD WASHER HOSE

main85031-12250iLH5#,6#,YH5#,6#198708-198908

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33419iLH5#,6#,YH5#,6#198708-198908

L=200

main90446-06013iYH51..LHD..V4D..4H;YH61..V5D..5H..03S; YH51..V5D;LH61..LHD..03S;LH51..LHD..VSP..5H;YH51..V4D..5H..03S;LH56,66,YH61..VSP..(4H,5F); YH61..U;YH66..VSG;YH61..V5D..4HC;YH61..V5D..5H..R198708-198908

L=1000

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33384iLH51,61,YH51,61..RHD198708-198908

L=640

main90099-33418iLH5#,6#,YH5#,6#198708-198908

L=300,L=300

main90446-06013iLH5#,6#,YH5#,6#..LHD198708-198908

L=1000

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06023iLH5#,6#,YH5#,6#198708-198908

L=1000(*H,L=260)

main90446-06024iLH5#,6#,YH5#,6#198708-198908

L=1000(*H,L=810)

8271190B02WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-90B02

8281995703GROMMET, WIRING HARNESS

main82819-95703

9014960039

main90149-60039

9166160816

main91661-60816

17 parts on this diagram · 1 diagram in section
