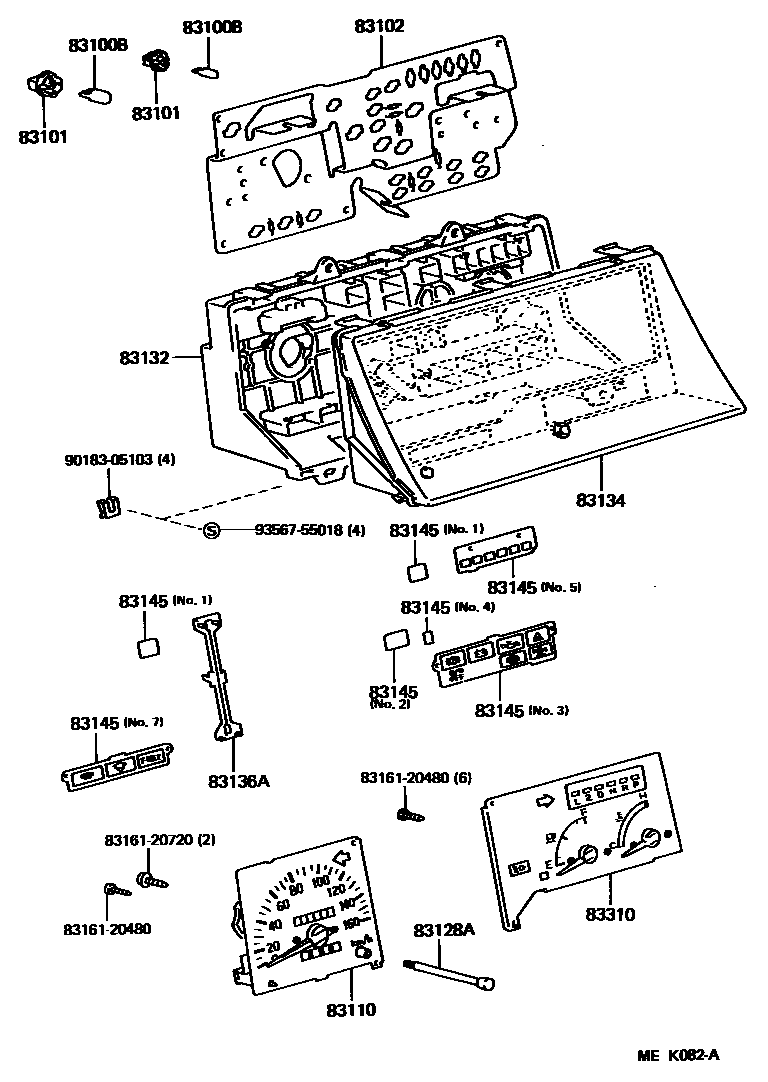

METER
83100BBULB, COMBINATION METER, NO.1
12V3.4W W(GREEN CAP)
12V 1.2W W/O SOCKET
12V 3.4W
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-14040×11iLH5#,6#..LHD..MTM; LH51,61..RHD; LH51..VSG..03S; LH61..V5D..5H..03S; YH51..U; YH56,66..02S,J,R;YH51,61..LHD..MTM; YH56..U;YH51,61..RHD198708-198908
12V 1.4W BULB; FRANCE SPEC,12V 1.4W BULB
12V 3.4W BULB
12V 3.4W BULB,W/GREEN CAP
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
*FRG
HIGH GRADE PACKAGE
83110SPEEDOMETER ASSY
*FRG
*FRG
FRANCE SPEC OR *FRG
HIGH GRADE PACKAGE
83128AKNOB, METER
83132CASE, COMBINATION METER
*FRG OR HIGH GRADE PACKAGE
83134COVER, COMBINATION METER, NO.1
*FRG OR HIGH GRADE PACKAGE
83136ACOVER, COMBINATION METER
LH,*FRG OR HIGH GRADE PACKAGE
RH,*FRG
83145LENS, METER, NO.1
NO.2,*FRG OR HIGH GRADE PACKAGE
NO.1,*FRG OR HIGH GRADE PACKAGE
NO.6
NO.6
NO.3; NO.3,*FRG
NO.3
NO.3
CANARY ISLANDS SPEC OR FRANCE SPEC,NO.3; CANARY ISLANDS SPEC,NO.3
NO.3
NO.7
NO.5
NO.1
NO.2
NO.4
NO.4
HIGH GRADE PACKAGE,NO.3
NO.5
83310GAGE ASSY, FUEL RECEIVER
8316120480CASE, COMBINATION METER MIRROR, NO.1
main83161-20480
8316120720CASE, COMBINATION METER MIRROR, NO.1
main83161-20720
9018305103
main90183-05103
9356755018
main93567-55018
14 parts on this diagram · 4 diagrams in section
