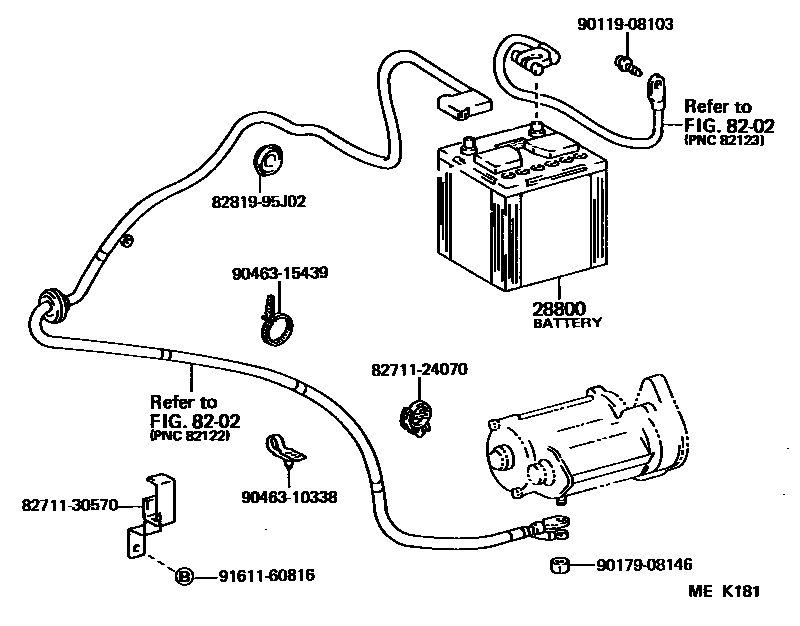

BATTERY & BATTERY CABLE

28800BATTERY

main28800-42010i2L..LH5#,6#..MTM198708-198908

75D31L

main28800-54030i2L..LH51,61..4HC198708-198908

95D31L

main28800-54050i2L..LH5#,6#198708-198908

130E41L

main28800-64010i3Y,4Y..YH5#,6#198708-198908

55D23L

main28800-64030i3Y,4Y..YH5#,6#198708-198908

55D20L

8202WIRING & CLAMP

→ Go to FIG 82-02

8271124070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24070

8271130570WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30570

8281995J02GROMMET, WIRING HARNESS

main82819-95J02

9011908103

main90119-08103

9017908146

main90179-08146

9046310338

main90463-10338

9046315439

main90463-15439

9161160816

main91611-60816

10 parts on this diagram · 1 diagram in section
