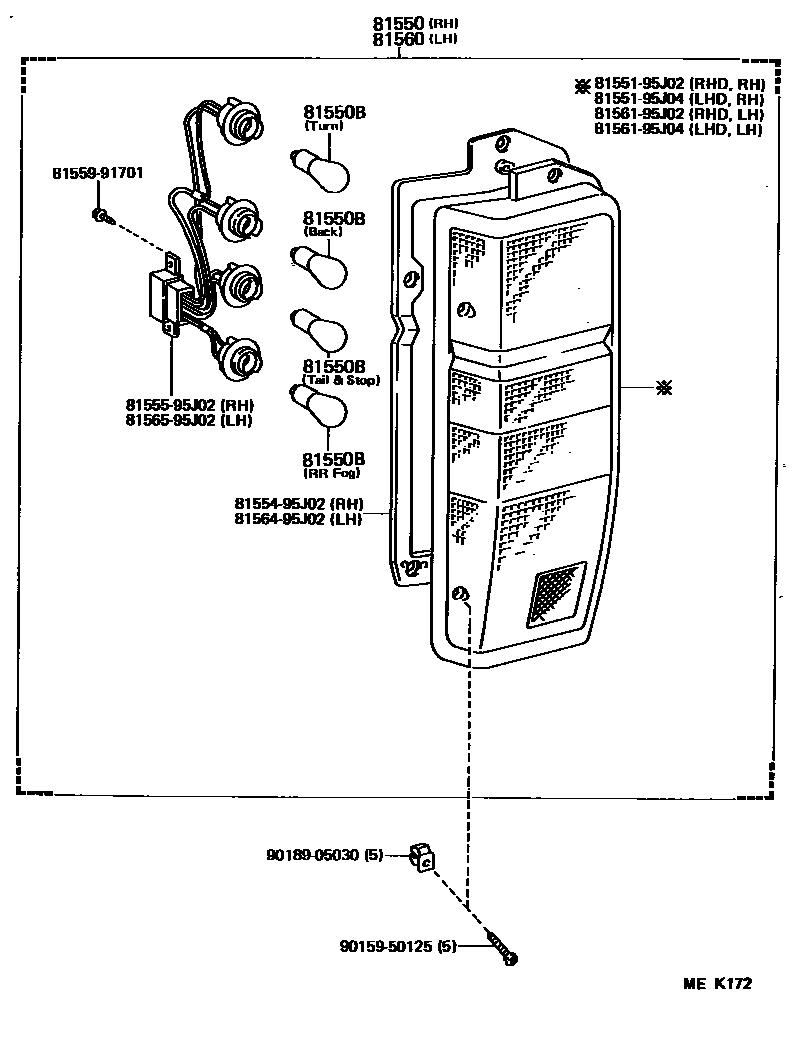

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-95J06iLH51,61,YH51,61..RHD198708-198908

main81550-95J07iLH5#,6#,YH5#,6#..LHD198708-198908

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×5iLH5#,6#,YH5#,6#198708-198908

12V 21W,TURN,BACK OR RR FOG

main99132-21210×2iLH5#,6#,YH5#,6#198708-198908

12V 21/5W,TAIL & STOP

81560LAMP ASSY, REAR COMBINATION, LH

main81560-95J06iLH51,61,YH51,61..RHD198708-198908

main81560-95J07iLH5#,6#,YH5#,6#..LHD198708-198908

8155195J02LENS, REAR COMBINATION LAMP, RH

main81551-95J02

8155195J04LENS, REAR COMBINATION LAMP, RH

main81551-95J04

8155495J02GASKET, REAR COMBINATION LAMP BODY, RH

main81554-95J02

8155595J02SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-95J02

8155991701MOULDING, REAR COMBINATION LAMP, RH

main81559-91701

8156195J02LENS, REAR COMBINATION LAMP, LH

main81561-95J02

8156195J04LENS, REAR COMBINATION LAMP, LH

main81561-95J04

8156495J02GASKET, REAR COMBINATION LAMP BODY, LH

main81564-95J02

8156595J02SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-95J02

9015950125

main90159-50125

9018905030

main90189-05030

14 parts on this diagram · 1 diagram in section
