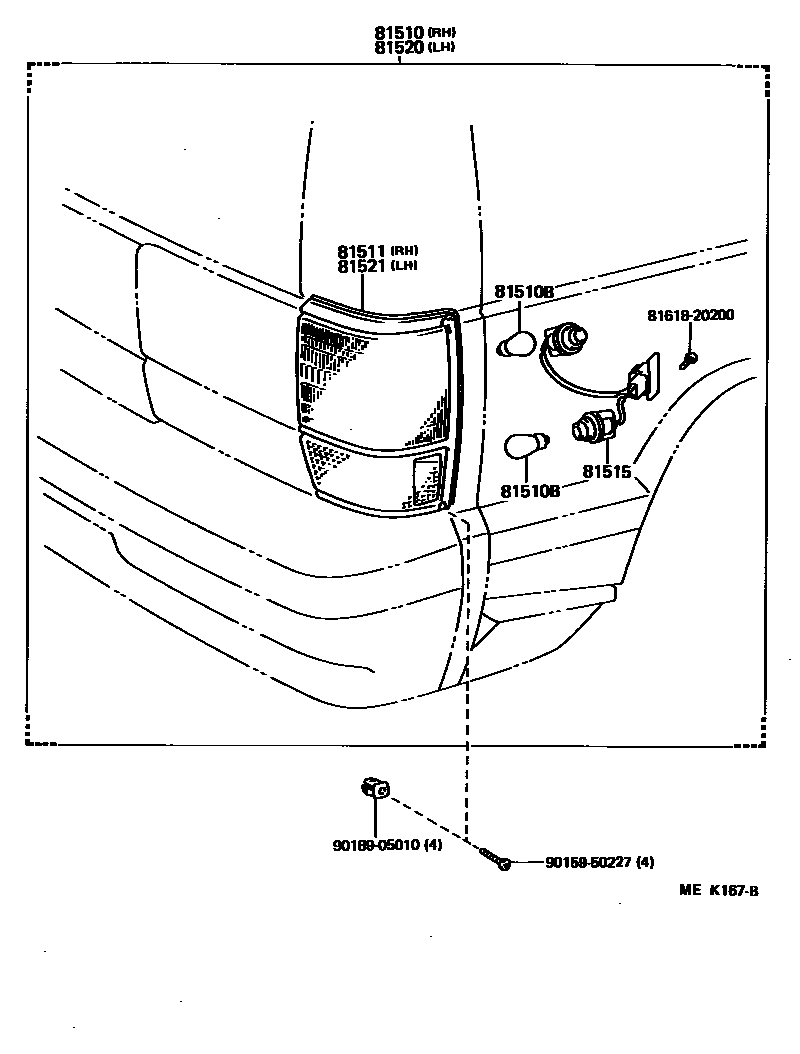

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-95J06iLH5#,6#,YH5#,6#198708-198908

main81510-95J12iYH51..U198709-198908

HIGH GRADE PACKAGE

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11050×2iLH5#,6#,YH5#,6#198708-198908

12V 5W,CLEARANCE

main99132-11210×2iLH5#,6#,YH5#,6#198708-198908

12V 21W,TURN

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-95J06iLH5#,6#,YH5#,6#198708-198908

main81511-95J12iYH51..U198709-198908

HIGH GRADE PACKAGE

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-95J06×2iLH5#,6#,YH5#,6#198708-198908

main81515-95J12×2iYH51..U198709-198908

HIGH GRADE PACKAGE

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-95J06iLH5#,6#,YH5#,6#198708-198908

main81520-95J12iYH51..U198709-198908

HIGH GRADE PACKAGE

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-95J06iLH5#,6#,YH5#,6#198708-198908

main81521-95J12iYH51..U198709-198908

HIGH GRADE PACKAGE

8161820200BRACKET, PARKING AND CLEARANCE LAMP, RH

main81618-20200

9015950227

main90159-50227

9018905010

main90189-05010

9 parts on this diagram · 1 diagram in section
