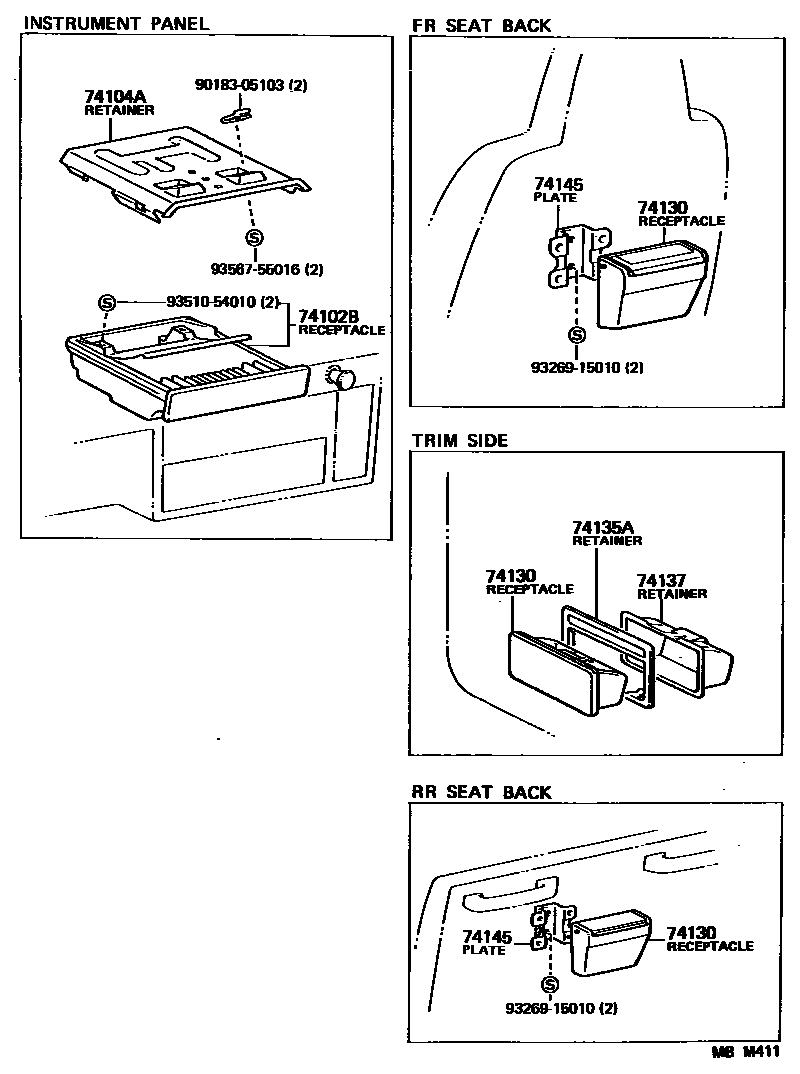

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-95J00iLH5#,6#,YH5#,6#198708-198908

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-95J00iLH5#,6#,YH5#,6#198708-198908

74130RECEPTACLE ASSY, REAR ASH

main74105-10010-26iYH61..15S;LH5#,6#,YH5#,6#..V4D..(J,R,U)198708-198908

BROWN,TRIM4#,TRIM SIDE

main74130-95J00-16iLH51,61,YH61..V5D..R198708-198908

BROWN,TRIM4#,FR SEAT BACK

main74130-95J01-06×3iYH61..15S198708-198808

BROWN,TRIM4#,RR SEAT BACK

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-10030iYH61..15S;LH5#,6#,YH5#,6#..V4D..(J,R,U)198708-198908

74137RETAINER, REAR ASH RECEPTACLE, INNER RH

main74137-10030iYH61..15S;LH5#,6#,YH5#,6#..V4D..(J,R,U)198708-198908

74145PLATE, REAR ASH RECEPTACLE

main74145-90B00×3iYH61..15S198708-198808

RR SEAT BACK

9018305103

main90183-05103

9326915010

main93269-15010

9351054010

main93510-54010

9356755016

main93567-55016

10 parts on this diagram · 1 diagram in section
