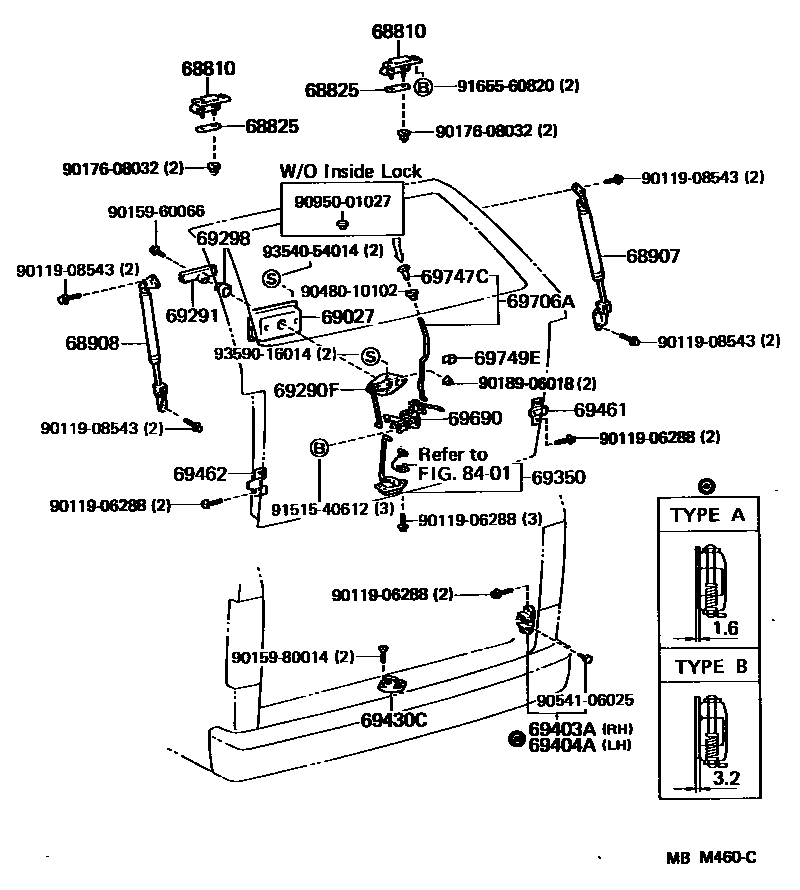

BACK DOOR LOCK & HINGE
68810HINGE ASSY, BACK DOOR, UPPER
RH
RH
LH
LH
68825PLATE, BACK DOOR HINGE
68907STAY SUB-ASSY, BACK DOOR DAMPER, RH
main68907-95J05iLH66..J; YH51,66..V5D..(5F,5H); YH51..V4D;YH61..15S;LH5#,61,YH56;YH61..V4D..(03S,J,R);LH66,YH51,61..V5D..(4H,5F); YH61..V5D..(4HC,5H)..03S; YH66..R;YH61..U;YH61..V5D..R198708-198908
COLD SPEC OR NORWAY SPEC OR W(RR WINDOW WIPER); COLD SPEC OR SWEDEN SPEC OR NORWAY SPEC OR W(RR WINDOW WIPER); COLD SPEC OR SWEDEN SPEC OR W(RR WINDOW WIPER); COLD SPEC OR W(RR WINDOW WIPER)
main68907-95J08iLH66,YH66..J; YH51,6#..V5D..VSP..(4HC,5F,5H); YH51..U; YH61..V4D;YH61..15S;YH61..V5D..R;LH5#,61,YH56;YH51..V4D..(03S,J,R);LH66,YH51,61..V5D..(4H,5F); YH66..R198708-198908
COLD SPEC; COLD SPEC & W(RR WINDOW WIPER); HIGH GRADE PACKAGE OR COLD SPEC & W(RR WINDOW WIPER); NORWAY SPEC OR COLD SPEC & W(RR WINDOW WIPER); SWEDEN SPEC OR COLD SPEC & W(RR WINDOW WIPER)
68908STAY SUB-ASSY, BACK DOOR DAMPER, LH
main68908-95J05iLH66..J; YH51,66..V5D..(5F,5H); YH51..V4D;YH61..15S;LH5#,61,YH56;YH61..V4D..(03S,J,R);LH66,YH51,61..V5D..(4H,5F); YH61..V5D..(4HC,5H)..03S; YH66..R;YH61..U;YH61..V5D..R198708-198908
COLD SPEC OR NORWAY SPEC OR W(RR WINDOW WIPER); COLD SPEC OR SWEDEN SPEC OR NORWAY SPEC OR W(RR WINDOW WIPER); COLD SPEC OR SWEDEN SPEC OR W(RR WINDOW WIPER); COLD SPEC OR W(RR WINDOW WIPER)
main68908-95J08iLH66,YH66..J; YH51,6#..V5D..VSP..(4HC,5F,5H); YH51..U; YH61..V4D;YH61..15S;YH61..V5D..R;LH5#,61,YH56;YH51..V4D..(03S,J,R);LH66,YH51,61..V5D..(4H,5F); YH66..R198708-198908
COLD SPEC; COLD SPEC & W(RR WINDOW WIPER); HIGH GRADE PACKAGE OR COLD SPEC & W(RR WINDOW WIPER); NORWAY SPEC OR COLD SPEC & W(RR WINDOW WIPER); SWEDEN SPEC OR COLD SPEC & W(RR WINDOW WIPER)
69027BEZEL SUB-ASSY, BACK DOOR INSIDE HANDLE
HIGH GRADE PACKAGE,BLUE,TRIM8#
HIGH GRADE PACKAGE,BROWN,TRIM4#
69290FHANDLE ASSY, BACK DOOR INSIDE
HIGH GRADE PACKAGE OR W(INSIDE HANDLE)
69291HANDLE ASSY, BACK DOOR INSIDE
HIGH GRADE PACKAGE OR W(INSIDE HANDLE),BLUE,TRIM8#
BROWN,TRIM4#; HIGH GRADE PACKAGE OR W(INSIDE HANDLE),BROWN,TRIM4#
69298COVER, BACK DOOR INSIDE HANDLE
69350LOCK ASSY, BACK DOOR
69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
TYPE A
TYPE B
69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
TYPE A
TYPE B
69430CSTRIKER ASSY, BACK DOOR LOCK
69461STOPPER, BACK DOOR SIDE MALE, RH
69462STOPPER, BACK DOOR SIDE MALE, LH
69690CONTROL ASSY, BACK DOOR REMOTE
W(INSIDE HANDLE)
69706AROD SUB-ASSY, BACK DOOR LOCK REMOTE CONTROL
69747CBUTTON, DOOR LOCKING(FOR BACK DOOR)
BLACK,TRIM4#
69749ECLAMP, BACK DOOR LOCK LINK
8401SWITCH & RELAY & COMPUTER
9011906288
main90119-06288
9011908543
main90119-08543
9015960066
main90159-60066
9015980014
main90159-80014
9017608032
main90176-08032
9018906018
main90189-06018
9048010102
main90480-10102
9054106025
main90541-06025
9095001027
main90950-01027
9151540612
main91515-40612
9165560820
main91655-60820
9354054014
main93540-54014
9359016014
main93590-16014
32 parts on this diagram · 1 diagram in section
