INSIDE TRIM BOARD
58426DPROTECTOR, TOOL BAG CASE
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
BLUE,TRIM8#
BROWN,TRIM4#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
NORWAY SPEC,BROWN,TRIM4#
sub90467-10034
W(05S,06S),BROWN,TRIM4#
sub90467-10034
W/O(RR SEAT),BROWN,TRIM4#
sub90467-10034
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
NORWAY SPEC,BLUE,TRIM8#
62588ACOVER, SIDE HEATER, LOWER
62590BBOARD ASSY, SIDE HEATER COVER, LH
62630PPANEL ASSY, QUARTER TRIM, REAR RH
NORWAY SPEC,BLUE,TRIM8#
62640PPANEL ASSY, QUARTER TRIM, REAR LH
W(05S,06S) OR W/O(RR SEAT) & W(BUILT-IN TYPE RR HEATER)
W(BUILT-IN TYPE RR HEATER),BROWN,TRIM4#
sub62640-95J10
W(08S,09S & RR WINDOW WIPER),BROWN,TRIM4#
sub62640-95J12
W/O(RR SEAT) & W(RR WINDOW WIPER),BROWN,TRIM4#
sub62640-95J17
W(05S,06S & RR WIPER) OR W/O(RR SEAT) & W(RR WIPER),BROWN,TRIM4#
sub62640-95J17
NORWAY SPEC
NORWAY SPEC,BLUE,TRIM8#
64707ACOVER SUB-ASSY, QUARTER TRIM TOOL
64709KCASE SUB-ASSY, TOOL BAG
64739ACOVER, DECK TRIM REAR WASHER
BROWN,TRIM4#
sub85365-95J00
64739BBASE, REAR WASHER TANK, SERVICE HOLE COVER
HIGH GRADE PACKAGE OR W(RR WINDOW WIPER),BLUE,TRIM8#
sub85366-95J00
64763STOPPER, TOOL COVER
64764PACKING, TOOL COVER
64776BSPACER, TOOL BAG CASE, NO.2
64777BPROTECTOR, QUARTER, INNER
7456
6777195703WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-95703
6777195705WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-95705
6777195J02WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-95J02
6777222010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-22010
9015960184
main90159-60184
9018304035
main90183-04035
9018905015
main90189-05015
9020223002
main90202-23002
9056023009
main90560-23009
9331914010
main93319-14010
9351014012
main93510-14012
9356016012
main93560-16012
9356615512
main93566-15512

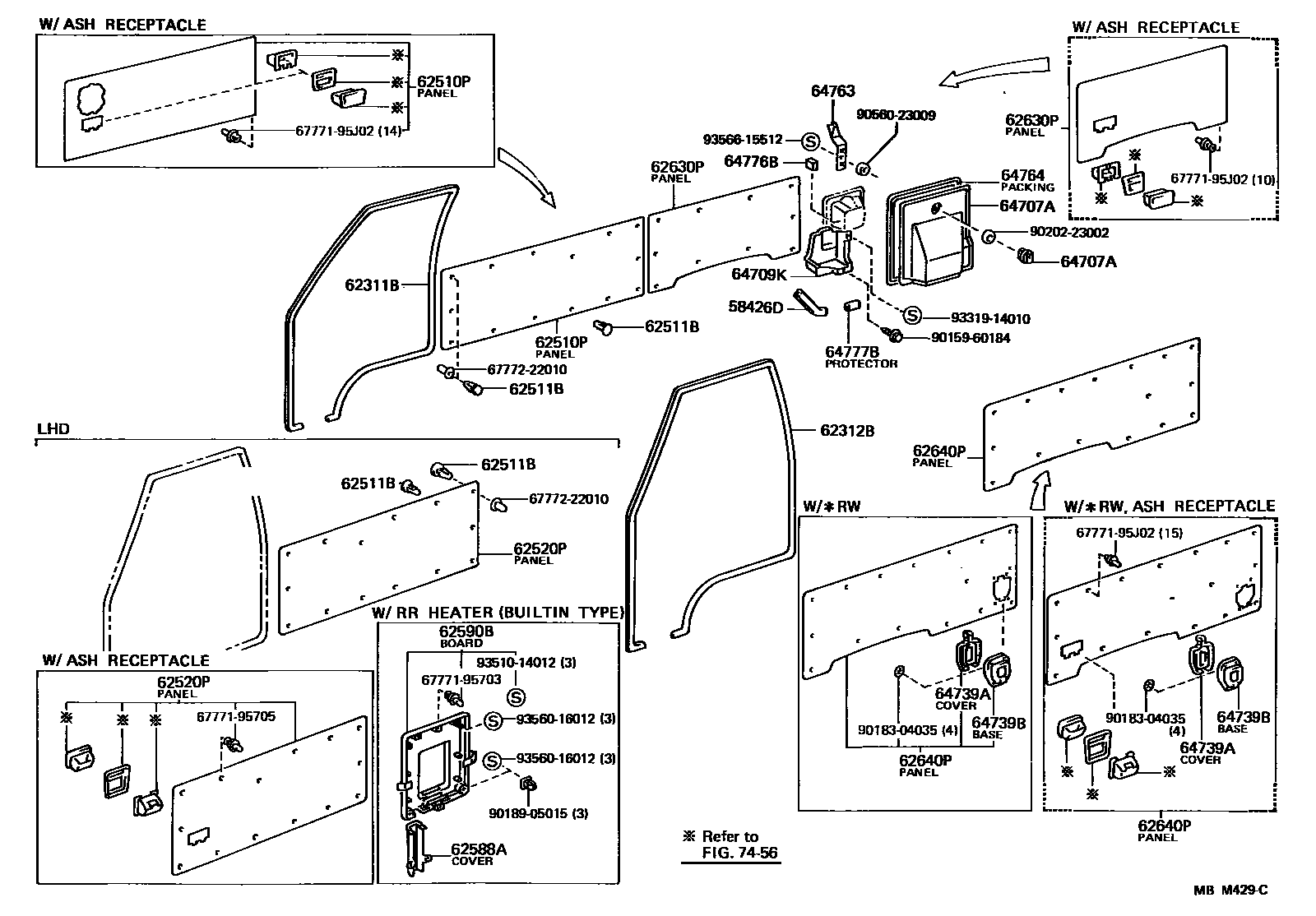

32 parts on this diagram · 2 diagrams in section
