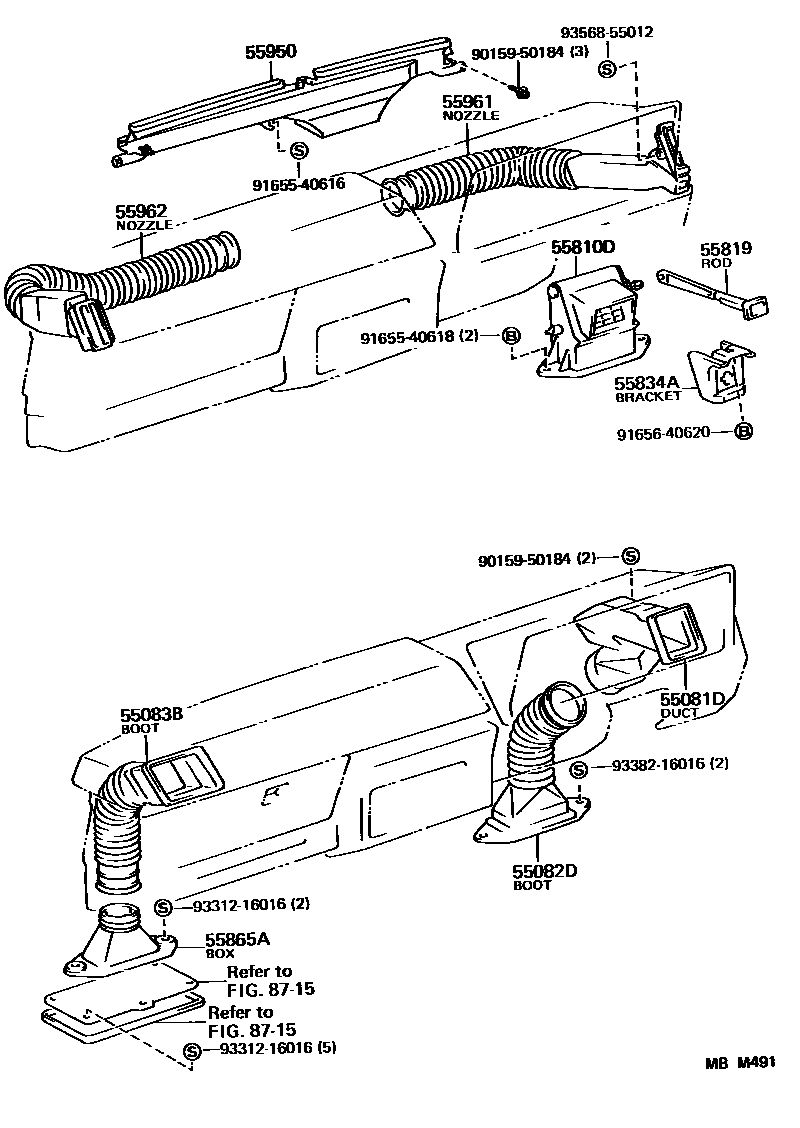

FRONT VENTILATOR

0001 1 0002 1

55081DDUCT SUB-ASSY, COWL TO REGISTER, NO.1

55082DBOOT SUB-ASSY, SIDE VENT DUCT, NO.1

55083BBOOT SUB-ASSY, SIDE VENT DUCT, NO.2

55810DVENTILATOR ASSY, FRONT FOOT SIDE

main55810-95J00iLH51,61,YH51,61..RHD198708-198908

main55810-95J01iLH5#,6#,YH5#,6#..LHD198708-198908

55819ROD, SIDE VENTILATOR CONTROL

main55819-95J00iLH5#,6#,YH5#,6#198708-198908

55834ABRACKET, FOOT VENTILATOR CONTROL ROD

main55834-95J00iLH5#,6#,YH5#,6#198708-198908

55865ABOX, INSTRUMENT VENTILATOR

55950NOZZLE ASSY, DEFROSTER

main55950-95J00iLH51,61,YH51,61..RHD198708-198908

main55950-95J01iLH5#,6#,YH5#,6#..LHD198708-198908

55961NOZZLE, SIDE DEFROSTER, NO.1

main55970-95J00iLH51,61,YH51,61..RHD198708-198908

main55970-95J01iLH5#,6#,YH5#,6#..LHD198708-198908

55962NOZZLE, SIDE DEFROSTER, NO.2

main55980-95J00iLH5#,6#,YH5#,6#..LHD198708-198908

main55980-95J01iLH51,61,YH51,61..RHD198708-198908

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9015950184

main90159-50184

9165540616

main91655-40616

9165540618

main91655-40618

9165640620

main91656-40620

9331216016

main93312-16016

9338216016

main93382-16016

9356855012

main93568-55012

18 parts on this diagram · 2 diagrams in section
