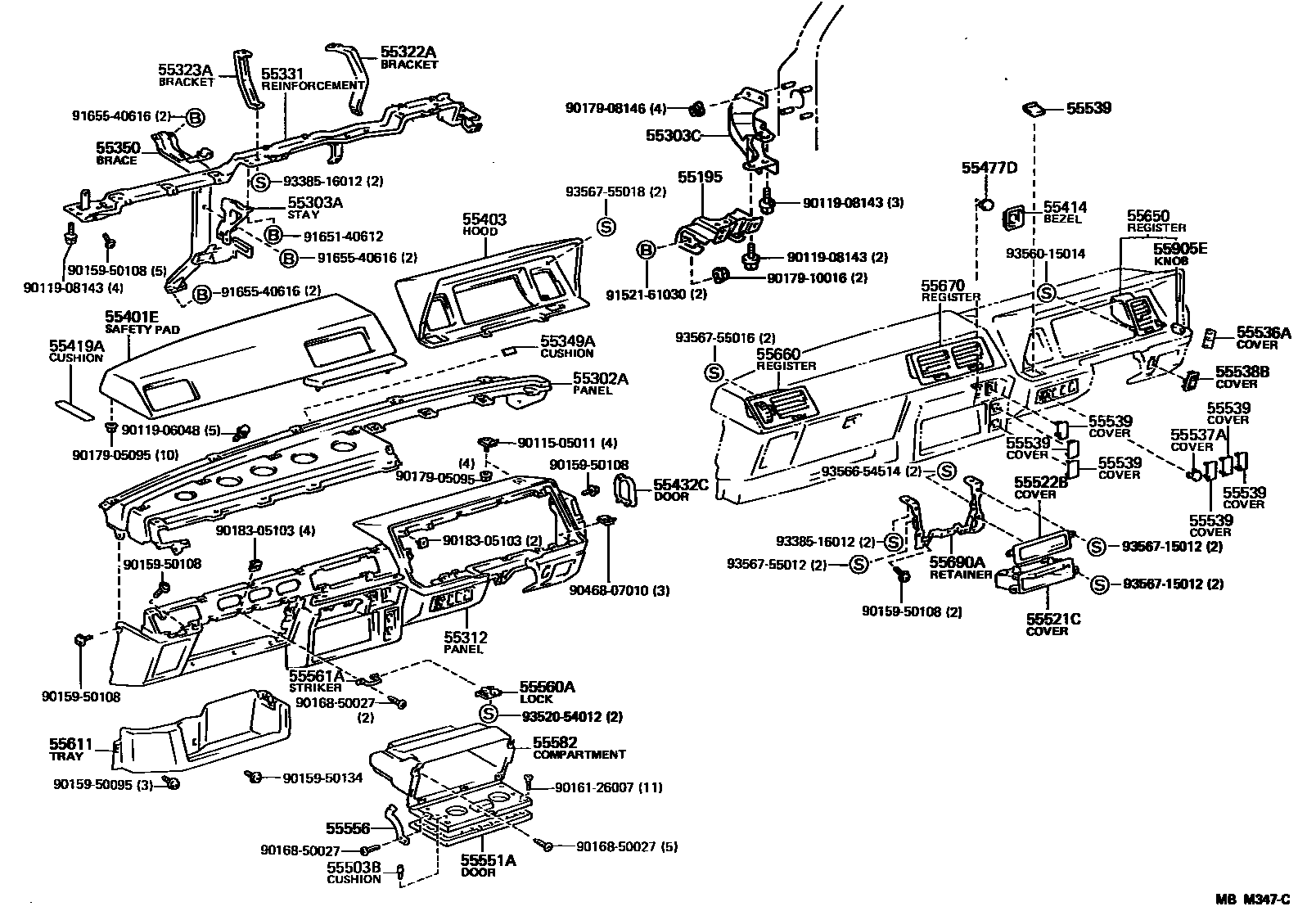

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55195STAY, PEDAL BRACKET, NO.1

main55195-95J00iLH51,61,YH51,61..RHD198708-198908

main55195-95J01iLH5#,6#,YH5#,6#..LHD198708-198908

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-95J00-06iLH51,61,YH51,61..RHD198708-198908

BROWN,TRIM4#

main55302-95J02-04iYH51..U198710-198908

BLUE,TRIM8#

main55302-95J02-06iLH5#,6#,YH5#,6#..LHD198708-198908

BROWN,TRIM4#

55303ASTAY SUB-ASSY, INSTRUMENT PANEL

main55303-95J00iLH51,61,YH51,61..RHD198708-198908

main55303-95J01iLH5#,6#,YH5#,6#..LHD198708-198908

55303CSTAY SUB-ASSY, INSTRUMENT PANEL

main55303-95J02iLH51,61,YH51,61..RHD198708-198908

main55303-95J03iLH5#,6#,YH5#,6#..LHD198708-198908

55312PANEL, INSTRUMENT, LOWER

main55312-95J03-06iLH51,61,YH51,61..RHD198708-198908

BROWN,TRIM4#

main55312-95J04-04iYH51..U198710-198908

W(RADIO),BLUE,TRIM8#

main55312-95J04-06iLH56,YH56..02S,R;LH51,6#,YH51,6#..LHD; LH56,YH56..U198708-198908

W(RADIO),BROWN,TRIM4#

main55312-95J05-04iYH51..U198710-198908

BLUE,TRIM8#

main55312-95J05-06iLH5#,6#,YH5#,6#..LHD198708-198908

BROWN,TRIM4#

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-95J00iLH51,61,YH51,61..RHD198708-198908

main55322-95J01iLH5#,6#,YH5#,6#..LHD198708-198908

55323ABRACKET, INSTRUMENT PANEL, NO.3

main55323-95J00iLH51,61,YH51,61..RHD198708-198908

main55323-95J01iLH5#,6#,YH5#,6#..LHD198708-198908

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-95J00iLH51,61,YH51,61..RHD198708-198908

main55305-95J01iLH5#,6#,YH5#,6#..LHD198708-198908

55349ACUSHION, INSTRUMENT PANEL

main55349-95702×2iLH5#,6#,YH5#,6#198708-198908

55350BRACE ASSY, INSTRUMENT PANEL

main55350-95J02iLH51,61,YH51,61..RHD198708-198908

main55350-95J03iLH5#,6#,YH5#,6#..LHD198708-198908

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-95J05-06iLH51,61,YH51,61..RHD198708-198908

BROWN,TRIM4#

main55401-95J07-04iYH51..U198710-198908

BLUE,TRIM8#

main55401-95J07-06iLH5#,6#,YH5#,6#..LHD198708-198908

BROWN,TRIM4#

55403HOOD SUB-ASSY, METER

main55403-95J07-01iLH51,61,YH51,61..RHD198708-198908

BLACK,TRIM4#

main55403-95J08-01iLH5#,6#,YH5#,6#..LHD..V198708-198908

BLACK,TRIM4#

55414BEZEL, CIGAR LIGHTER HOLE

main55414-95J00iLH5#,6#,YH5#,6#198708-198908

55419ACUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-14020×3iLH5#,6#,YH5#,6#198708-198908

55432CDOOR, RESERVOIR TANK

main55432-95J00-24iYH51..U198710-198908

BLUE,TRIM8#

main55432-95J00-26iLH5#,6#,YH5#,6#198708-198908

BROWN,TRIM4#

55477DCOVER, CIGARETTE LIGHTER HOLE

main55477-95010-01iLH5#,6#,YH5#,6#198708-198908

BLACK,TRIM4#

55503BCUSHION(FOR GLOVE COMPARTMENT)

main90541-03015×2iLH5#,6#,YH5#,6#198708-198908

55521CCOVER, STEREO OPENING

main55521-95J00iLH51,61,YH51,61..RHD; LH56,YH56..02S,R;LH51,6#,YH51,6#..LHD; LH56,YH56..U198708-198908

55522BCOVER, RADIO TUNER OPENING

main55522-14070iLH5#,6#,YH5#,6#..LHD198708-198908

main55522-20040iLH51,61,YH51,61..RHD198708-198908

55536ACOVER, LONG PARKING SWITCH HOLE

main55536-95J00-06iLH51,61,YH51,61..RHD198708-198908

BROWN,TRIM4#

55537ACOVER, THROTTLE KNOB HOLE

main55537-95010-01iYH5#,6#198708-198908

BLACK,TRIM4#

55538BCOVER, RHEOSTAT LIGHT HOLE

main55538-95J00-06iLH51,61,YH51,61..RHD198708-198908

BROWN,TRIM4#

55539COVER, SPARE SWITCH HOLE

main55539-95J00-01iLH5#,6#,YH5#,6#198708-198908

BLACK,TRIM4#

main55539-95J01iLH5#,6#,YH5#,6#..V198708-198908

55551ADOOR, GLOVE COMPARTMENT, OUTER

main55551-95J00-14iYH51..U198710-198908

BLUE,TRIM8#

main55551-95J00-16iLH5#,6#,YH5#,6#198708-198908

BROWN,TRIM4#

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-14080iLH5#,6#,YH5#,6#198708-198908

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-95704-04iYH51..U198710-198908

BLUE,TRIM8#

main55560-95704-06iLH5#,6#,YH5#,6#198708-198908

BROWN,TRIM4#

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-95J00iLH5#,6#,YH5#,6#198708-198908

55582COMPARTMENT, GLOVE DOOR, INNER

main55582-95J00iLH51,61,YH51,61..RHD198708-198908

main55582-95J01iLH5#,6#,YH5#,6#..LHD198708-198908

55611TRAY, INSTRUMENT PANEL UNDER

main55611-95J00iLH51,61,YH51,61..RHD198708-198908

main55611-95J01iLH5#,6#,YH5#,6#..LHD198708-198908

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-95J04iLH51,61,YH51,61..RHD198708-198908

main55650-95J05iLH5#,6#,YH5#,6#..LHD198708-198908

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-95J09-06iLH51,61,YH51,61..RHD198708-198908

BROWN,TRIM4#

main55660-95J11-04iYH51..U198710-198908

BLUE,TRIM8#

main55660-95J11-06iLH5#,6#,YH5#,6#..LHD198708-198908

BROWN,TRIM4#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-95J01-14iYH51..U198710-198908

BLUE,TRIM8#

main55670-95J01-16iLH5#,6#,YH5#,6#198708-198908

BROWN,TRIM4#

55690ARETAINER ASSY, INSTRUMENT

main55690-95J00iLH51,61,YH51,61..RHD198708-198908

main55690-95J01iLH51,61,YH51,61..LHD198708-198908

55905EKNOB SUB-ASSY, CONTROL

main55905-12050-01iLH5#,6#,YH5#,6#198708-198908

BLACK,TRIM4#

9011505011

main90115-05011

9011906048

main90119-06048

9011908143

main90119-08143

9015950095

main90159-50095

9015950108

main90159-50108

9015950134

main90159-50134

9016126007

main90161-26007

9016850027

main90168-50027

9017905095

main90179-05095

9017908146

main90179-08146

9017910016

main90179-10016

9018305103

main90183-05103

9046807010

main90468-07010

9152161030

main91521-61030

9165140612

main91651-40612

9165540616

main91655-40616

9338516012

main93385-16012

9352054012

main93520-54012

9356015014

main93560-15014

9356654514

main93566-54514

9356715012

main93567-15012

9356755012

main93567-55012

9356755016

main93567-55016

9356755018

main93567-55018

58 parts on this diagram · 2 diagrams in section
